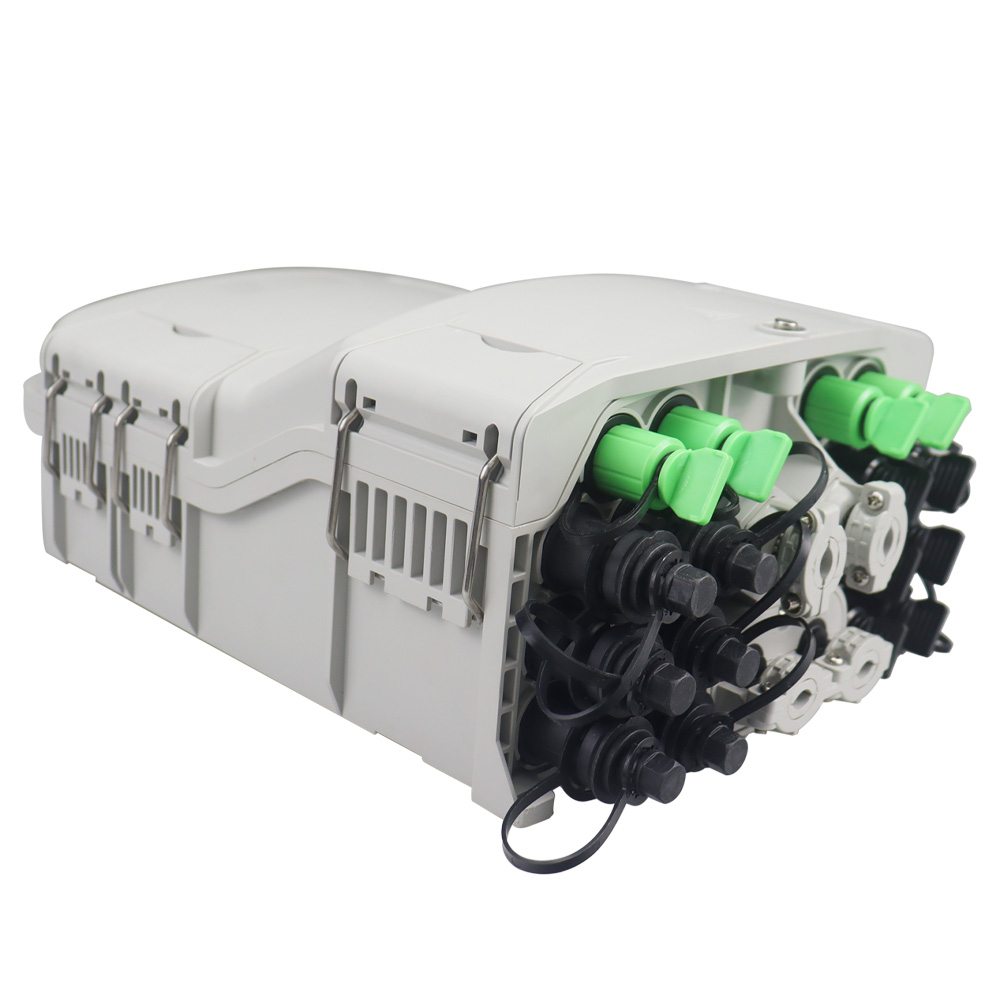

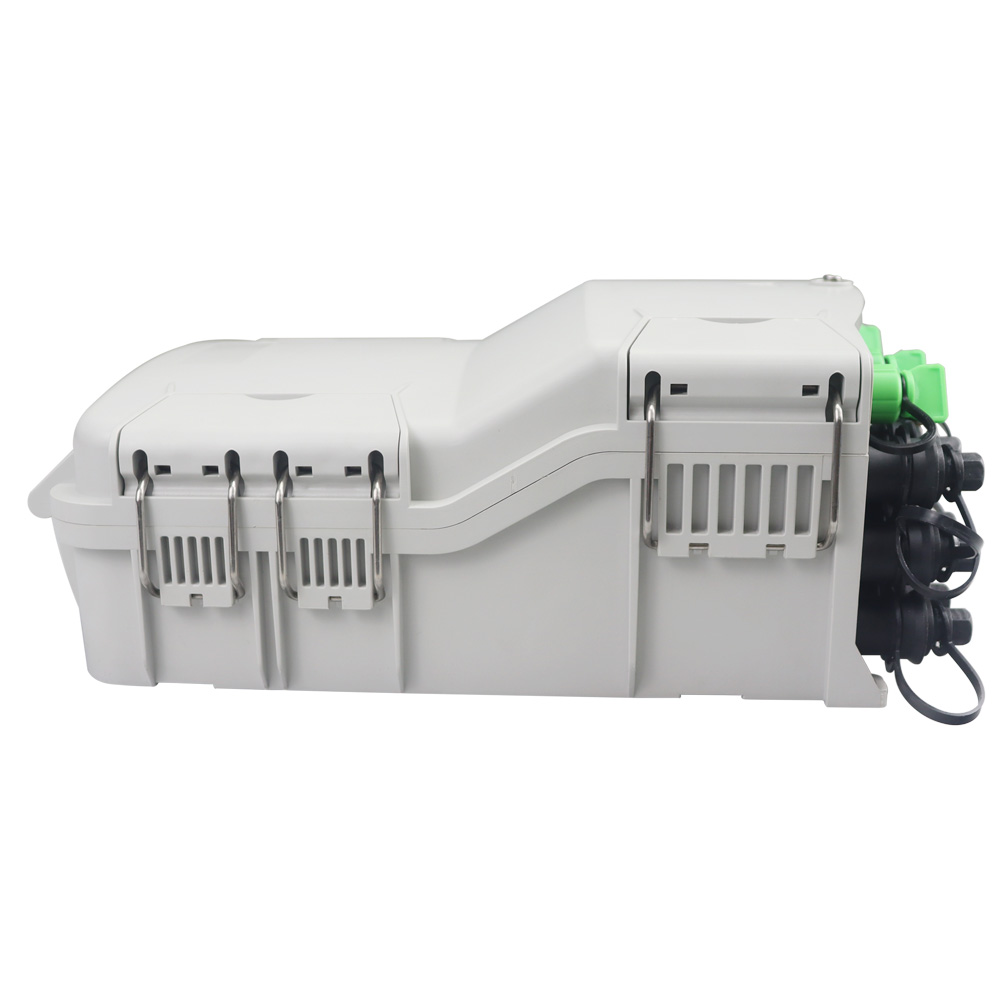

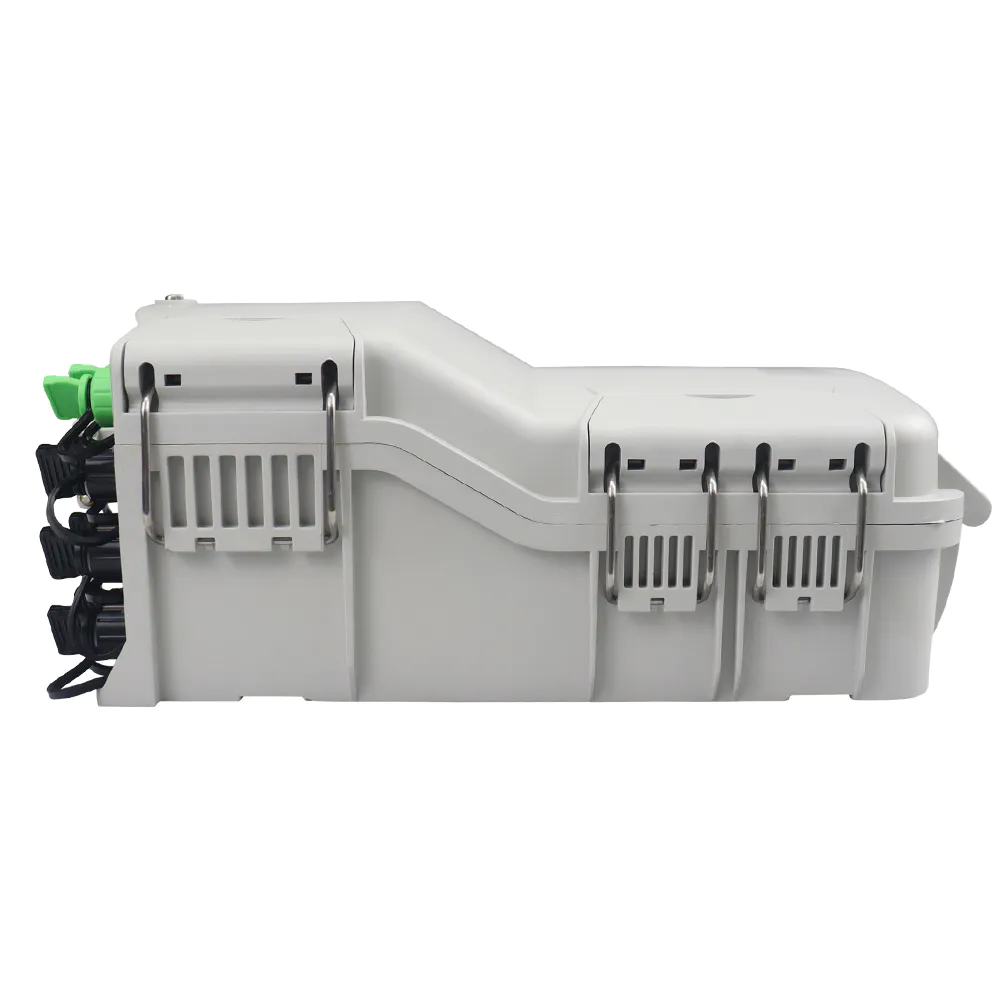

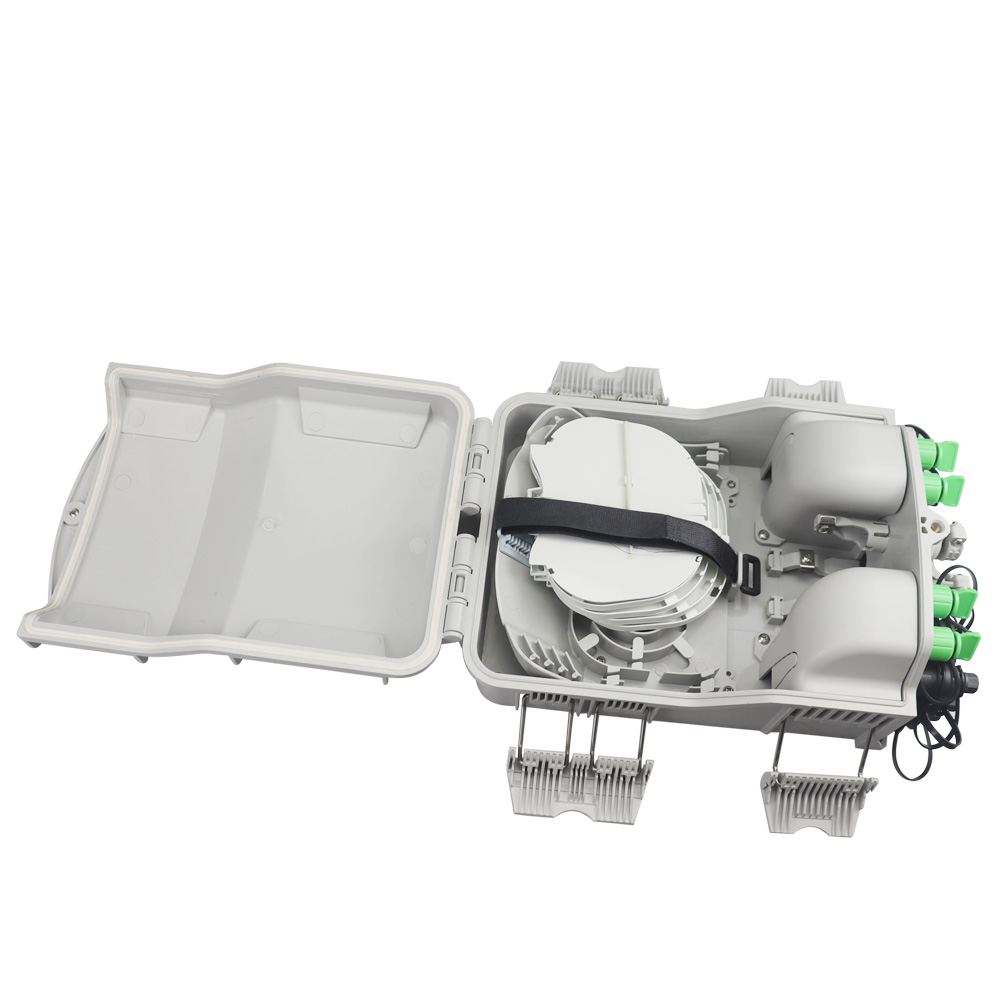

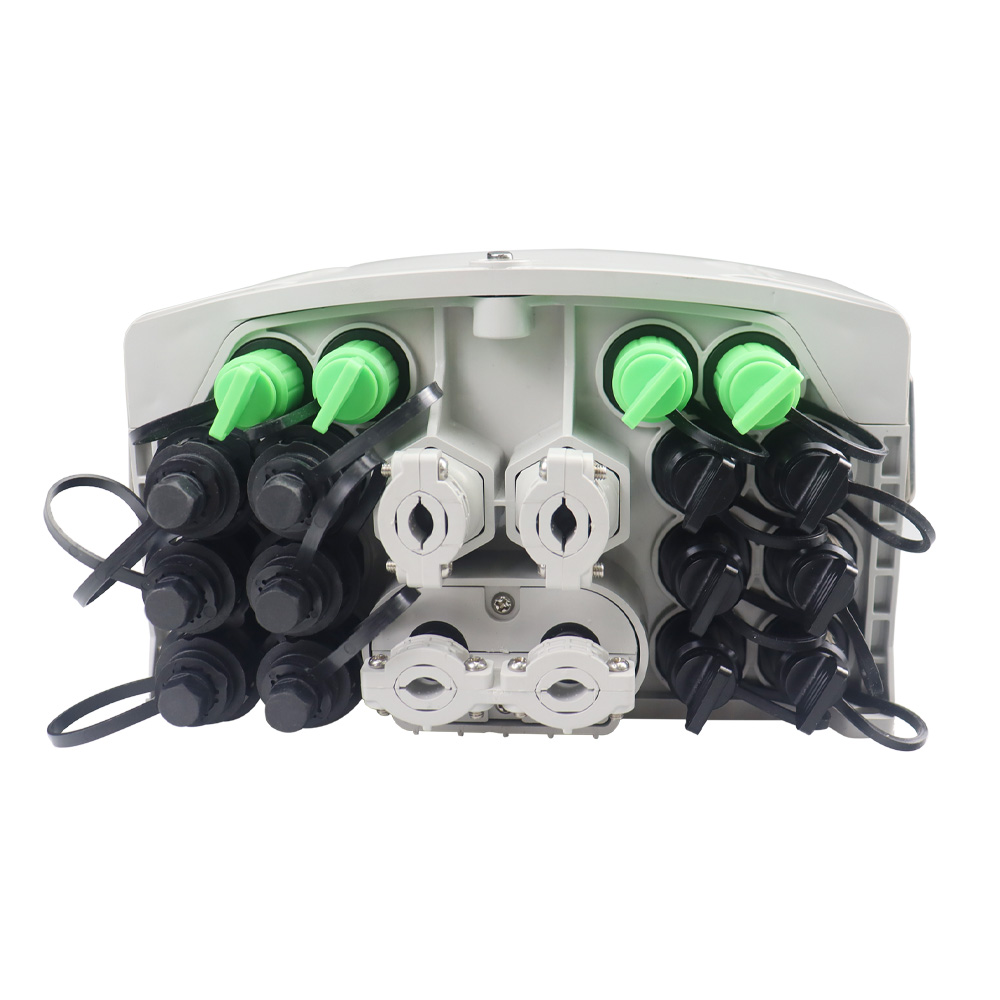

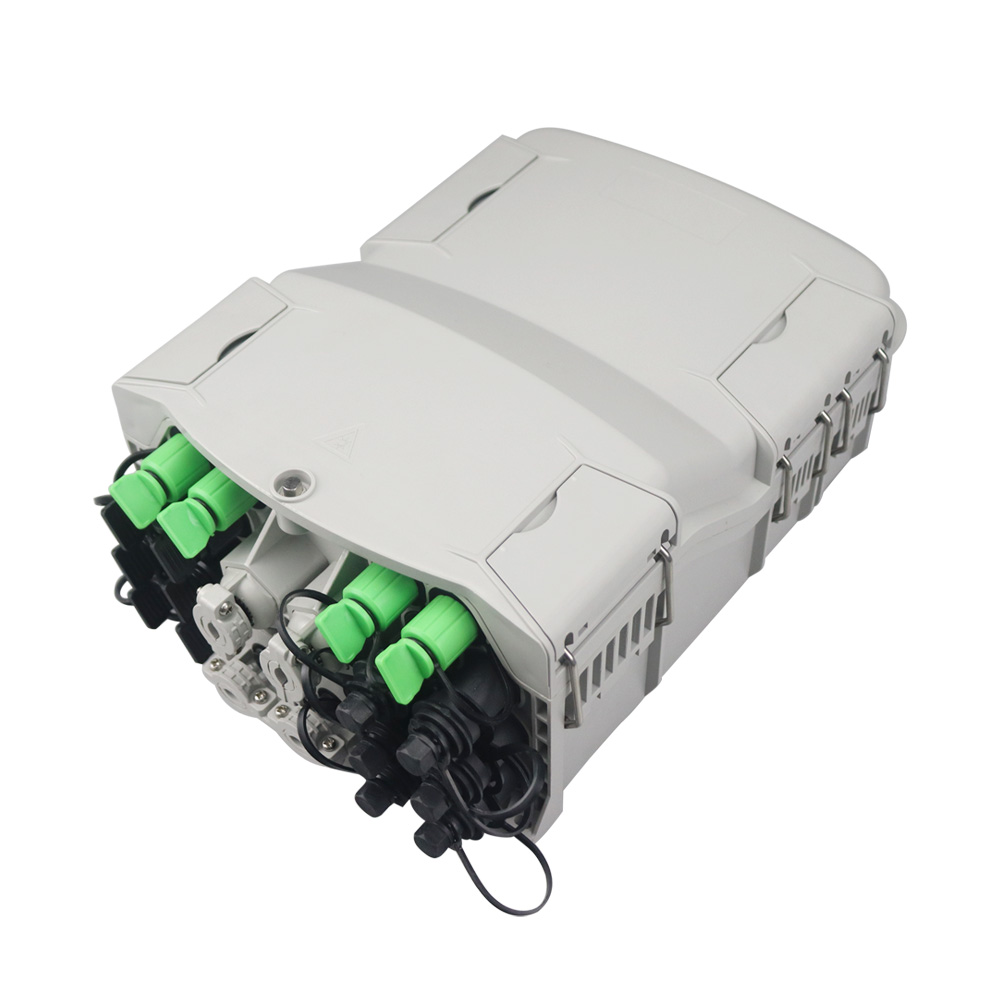

White 16 Ports Pre-connected Fiber Optic Termination Box With Waterproof Adapter

White 16 Ports Pre-connected Fiber Optic Termination Box With Waterproof Adapter

Model
CFO-FDB-79A
MOQ
>500
Place of Origin
China
Brand
CFO
Material
PC+ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

This type of fiber access termination box(FDB) is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Configuration



Model

CFO-FDB-99A

Passageway

Max.16 core

Dimension

242*167*137(mm)

Material

ABS or PC+ABS

Box Colour

Black,Grey, White

Adapter Colour

Blue、Red、Green、Black

Support PLC Splitter1 pc 1 * 16 TypeAdapter Capacity(Max)16 pcs
Protection LevelIP68Weight0.78kg
Operating temperature-40℃ +65℃


Products Features

White 16 Ports Pre-connected Fiber Optic Termination Box With Waterproof Adapter

▶ The box is small and lightweight, but it has complete functions and is easy to operate.

▶ Plug and play, pre-connected household cable instead of fusion, no need to open the box.

▶ Fast insertion can fix and seal the optical cable outside the connector box for quick installation.

▶ Support a variety of installation methods, holding poles, hanging walls, and cables.

▶ Unique design front 45-degree angle fiber output.

▶ The drop leaf can be installed in 1 pcs of 1:16 PLC or 2 pcs of 1:8 PLC.

▶ Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

The Fiber Optic Distribution Box is a kind of wall-mounted optical fiber termination box with IP68 protection level and metal material, which is mainly used in FTTH, FTTB, FTTC, and FTTA applications. This fiber optic termination box is designed to provide a high level of protection for fiber optic splicing and distribution. It is engineered to protect fiber optic splices from dust, water, and other contaminants, and to provide secure and organized storage for fiber optic cables. The metal material and IP68 protection level ensure better performance and greater durability. This fiber optic distribution box is a perfect choice for FTTH, FTTB, FTTC, and FTTA applications. Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
