Professional Pre-connected 5 cores Fiber Optic Distribution Box for Business Network Solutions

Professional Pre-connected 5 cores Fiber Optic Distribution Box for Business Network Solutions

Model
CFO-FDB-86A
MOQ
>500
Place of Origin
China
Brand
CFO
Material
PC+ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

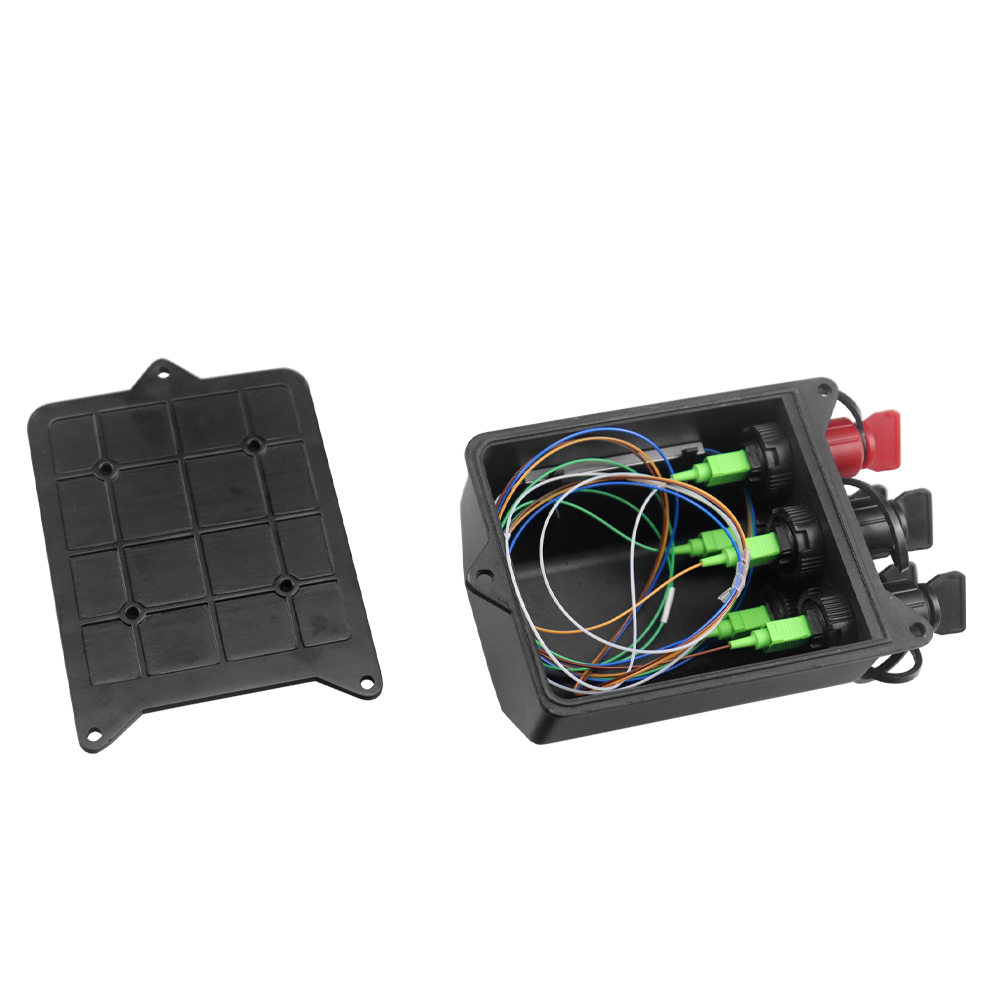

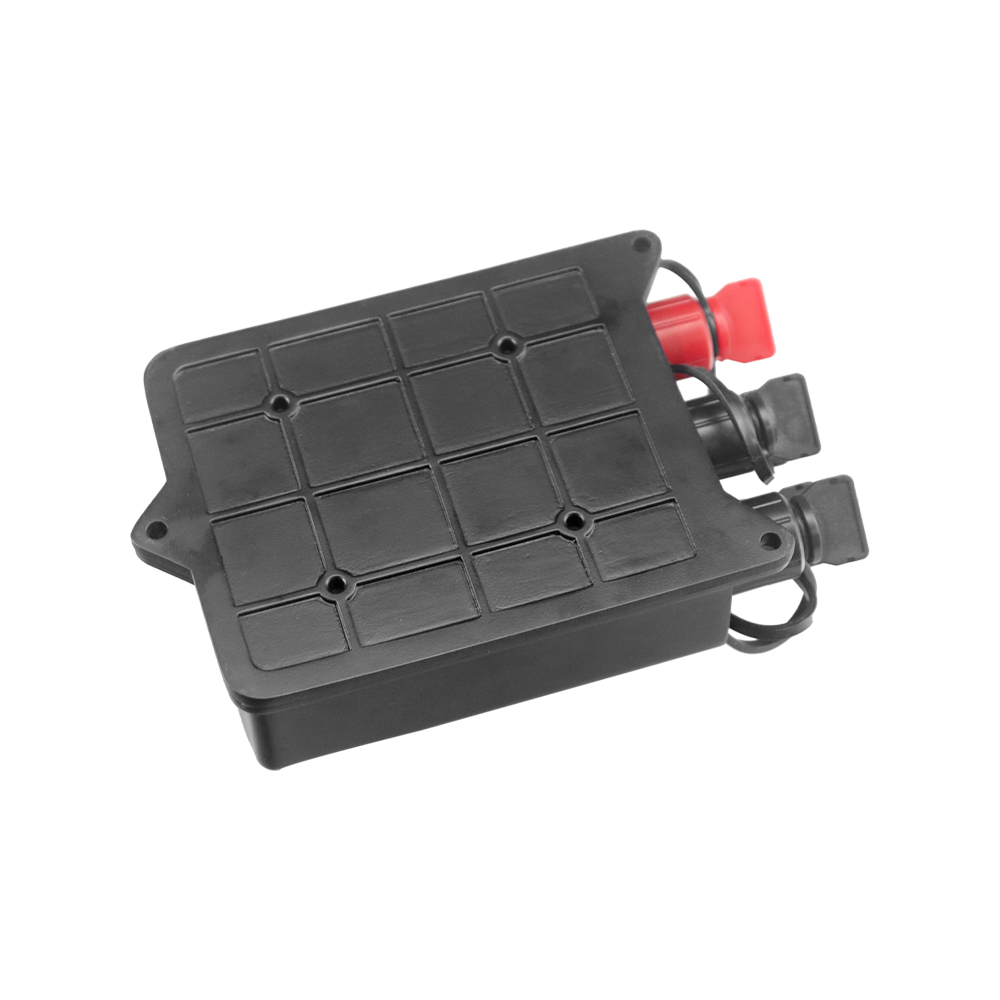

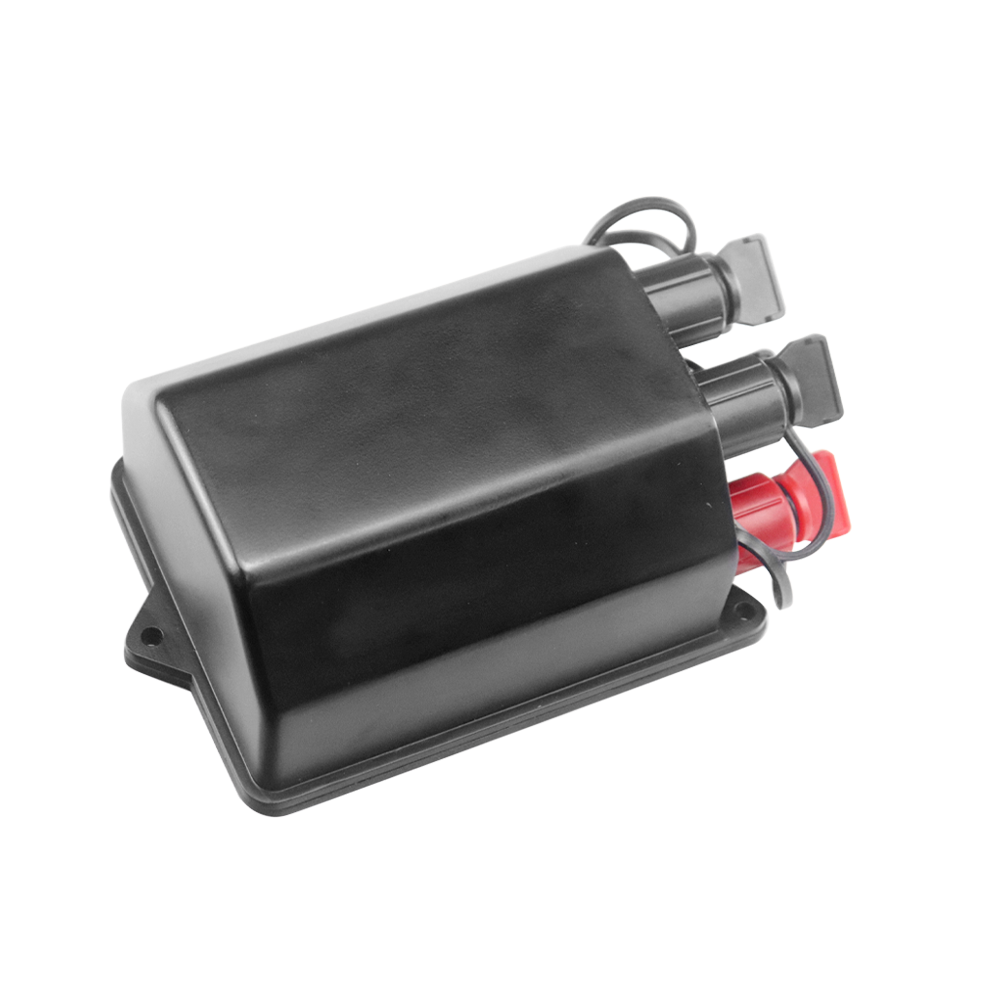

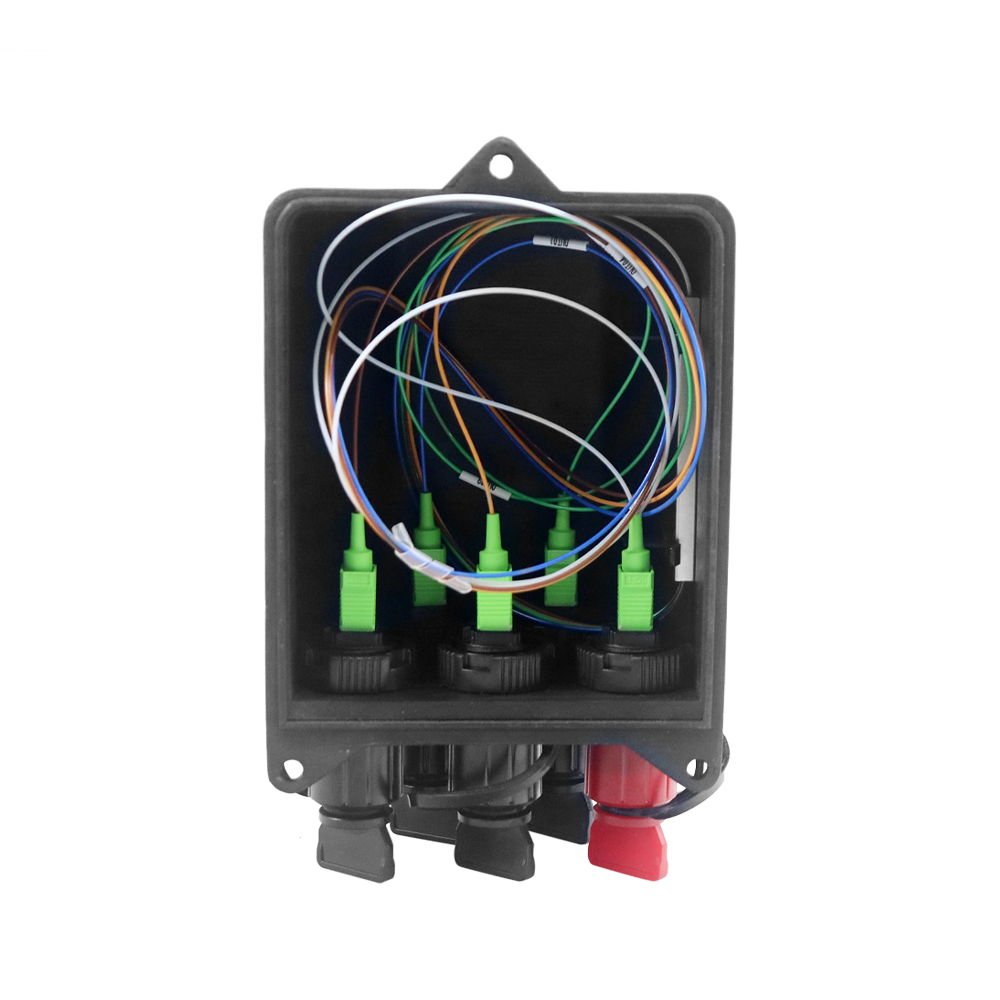

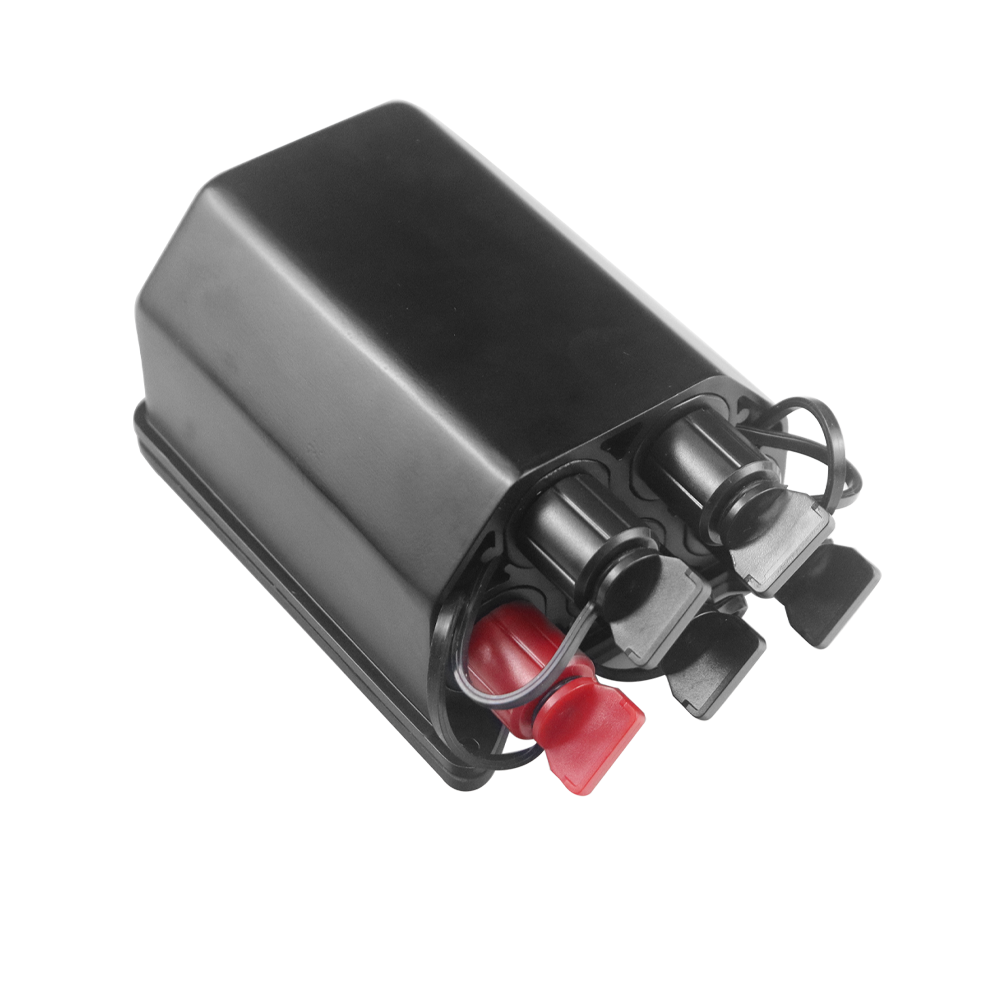

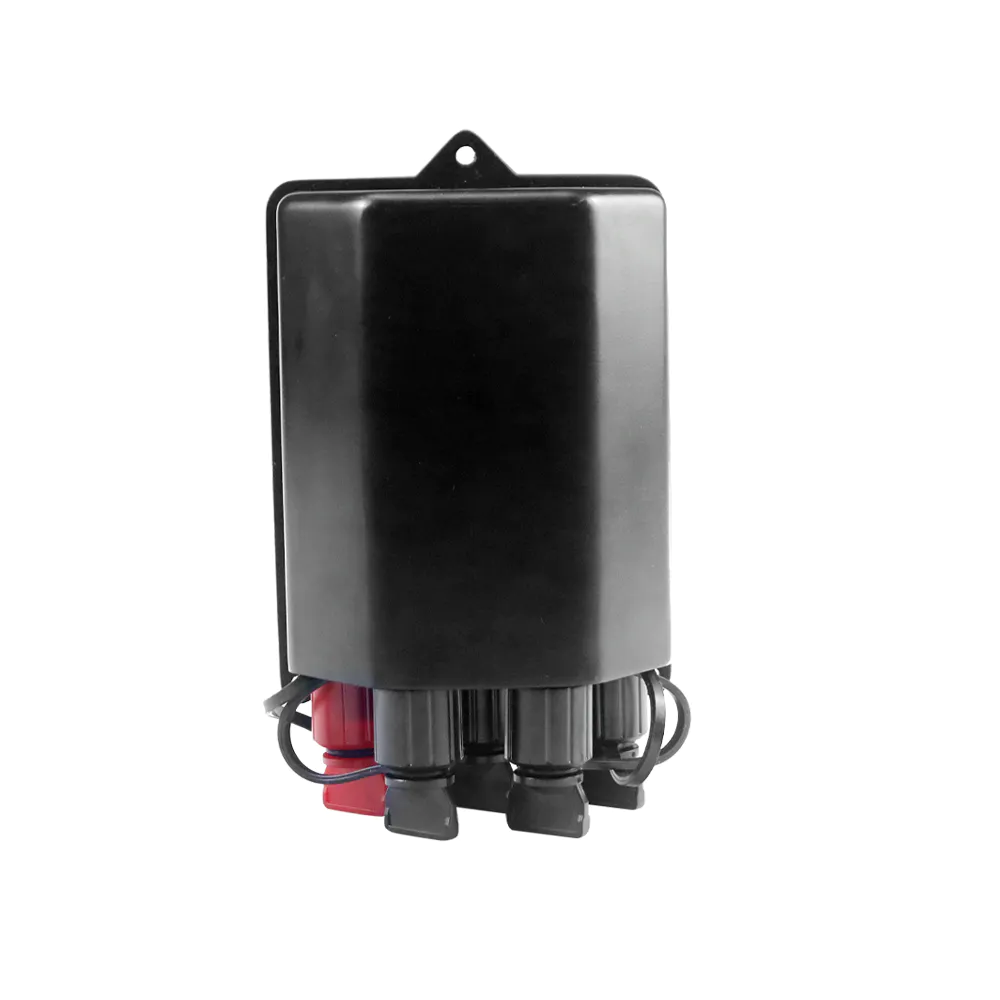

This is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splitting and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Configuration



Model

CFO-FDB-86A

Passageway

Max.5 core

Dimension

132.5x93x61.5(mm)

Material

ABS

Box Colour

Black

Adapter Colour

Blue、Red、Green、Black

Support PLC Splitter1*4.1 pcsAdapter Capacity(Max)5 pcs
The diameter of the box adapter holeΦ18.2mmSupport Adapter Mini SC, Optitap, Slim Waterproof Adapter
Protection LevelIP68Weight0.25kg
Operating temperature-40℃ +65℃


Products Features

Pre-Connected 10 Prot Fiber Optic Distribution Box For FTTH FTTB FTTC FTTA

▶ Apply to wall-mounted and Pole mounting

▶ High-strength material with good weather adaptability and UV resistance.

▶ Port into the end and leakage design, no need to open the box, easy construction.

▶ Internal multi-wiring, can be independent or combination with different types of demultiplexe.

▶ Adapters are available in black, red, blue, or other colors for easy identification.

▶ Ultrasonic welding, excellent sealing performance, Waterproof to IP68.

The bottom shell and upper cover are welded by hot plate welding, which is not detachable...Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
