12 Cores Optical Fiber Terminal Box

12 Cores Optical Fiber Terminal Box

Model
CFO-FDB-55A
MOQ
>500
Place of Origin
China
Brand
CFO
Material
ABS
Delivery Time
7-25days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

Fiber-optic cable box is an interface device for connecting the main cable to the wiring cable outdoors, in the corridor or in the room.

Specification



Model

CFO-FDB-55A

Application Cable

Outdoor

Dimension

197X162X77(mm)

Material


Modified PP plastic or PC+ABS


Installation hole position143X181(mm)Number of Pre-connectorized adapters9 /  12
Material of metal accessory

High-quality stainless steel

ProtectionIP68

Max Capacity


Splitter

1x4 PLC splitter+ 1x8 PLC splitter


1x8 PLC splitter
ColorBlackOperating Temperature-25℃~+60


Products Features

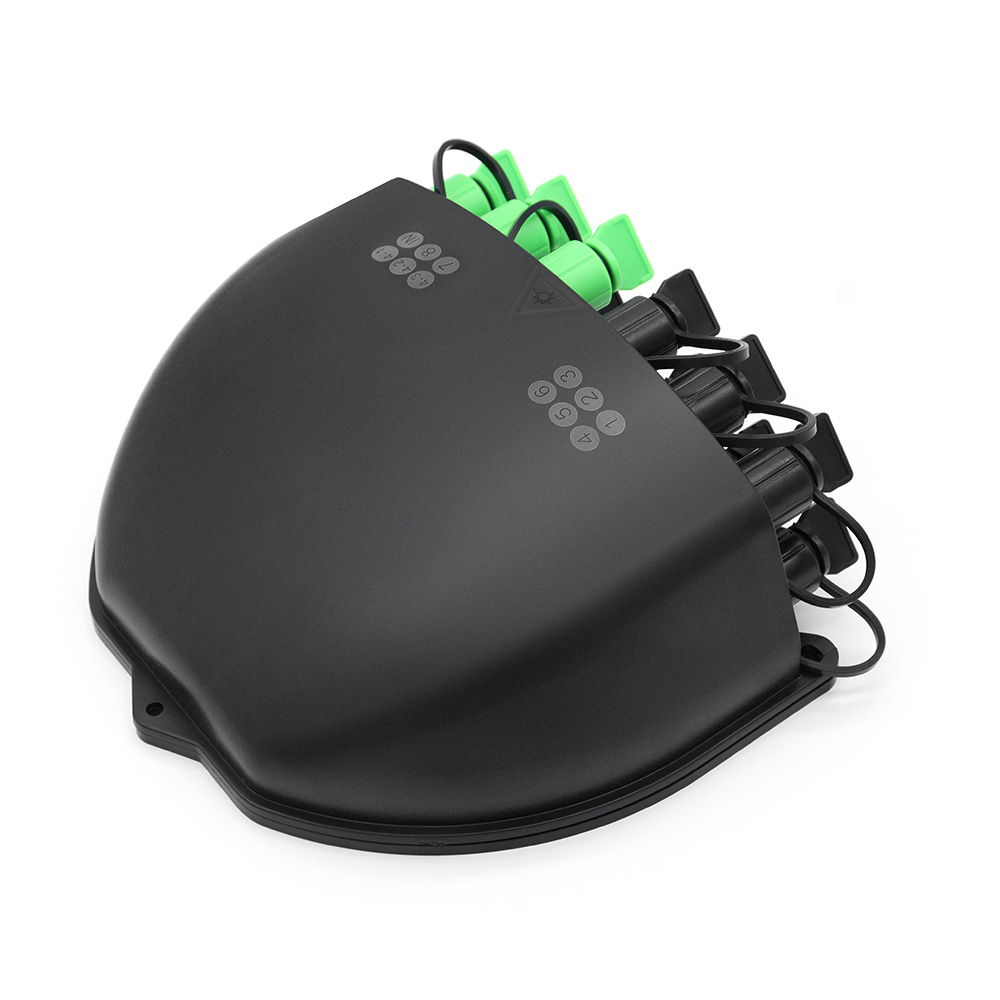

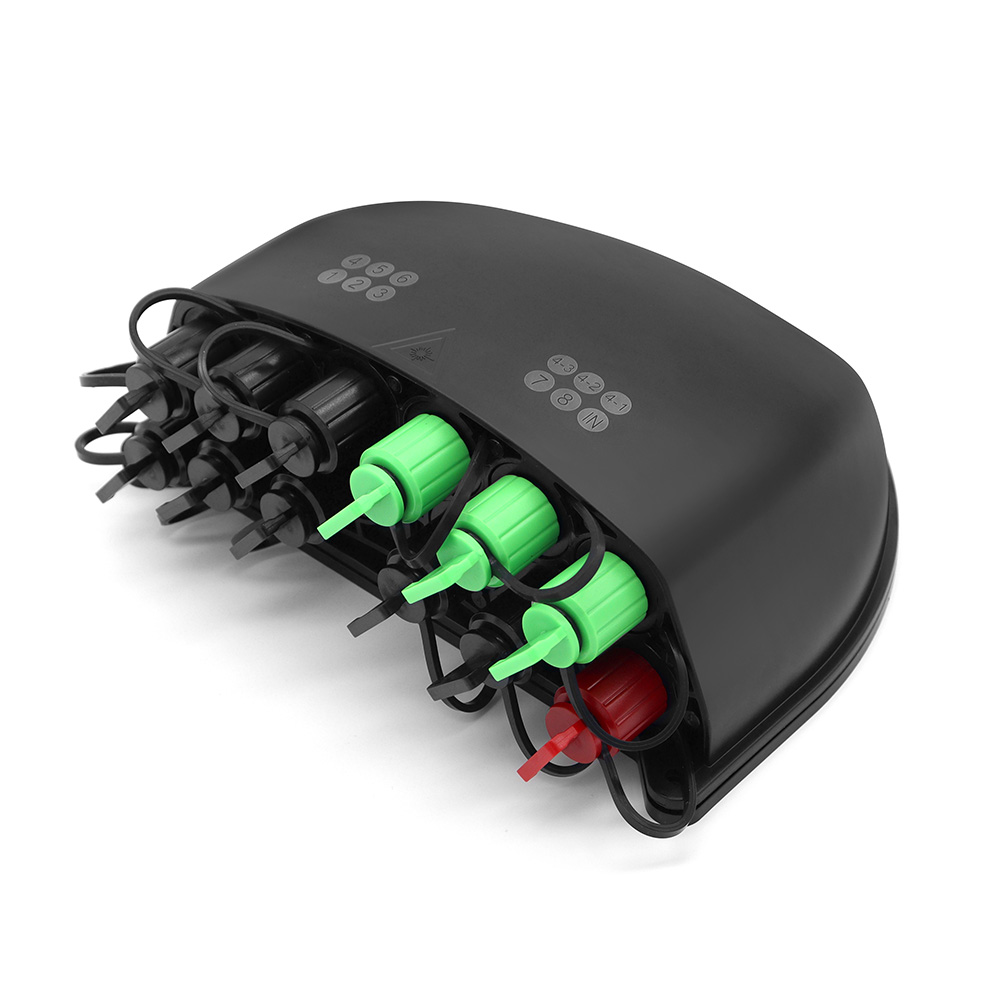

FTTH 12 Cores Fiber Optic Termination Box

▶Apply to wall-mounted Hold-up and pole-type installation

▶ High-strength material with good weather adaptability and UV resistance.

▶Port into the end and leakage design, no need to open the box, easy construction.

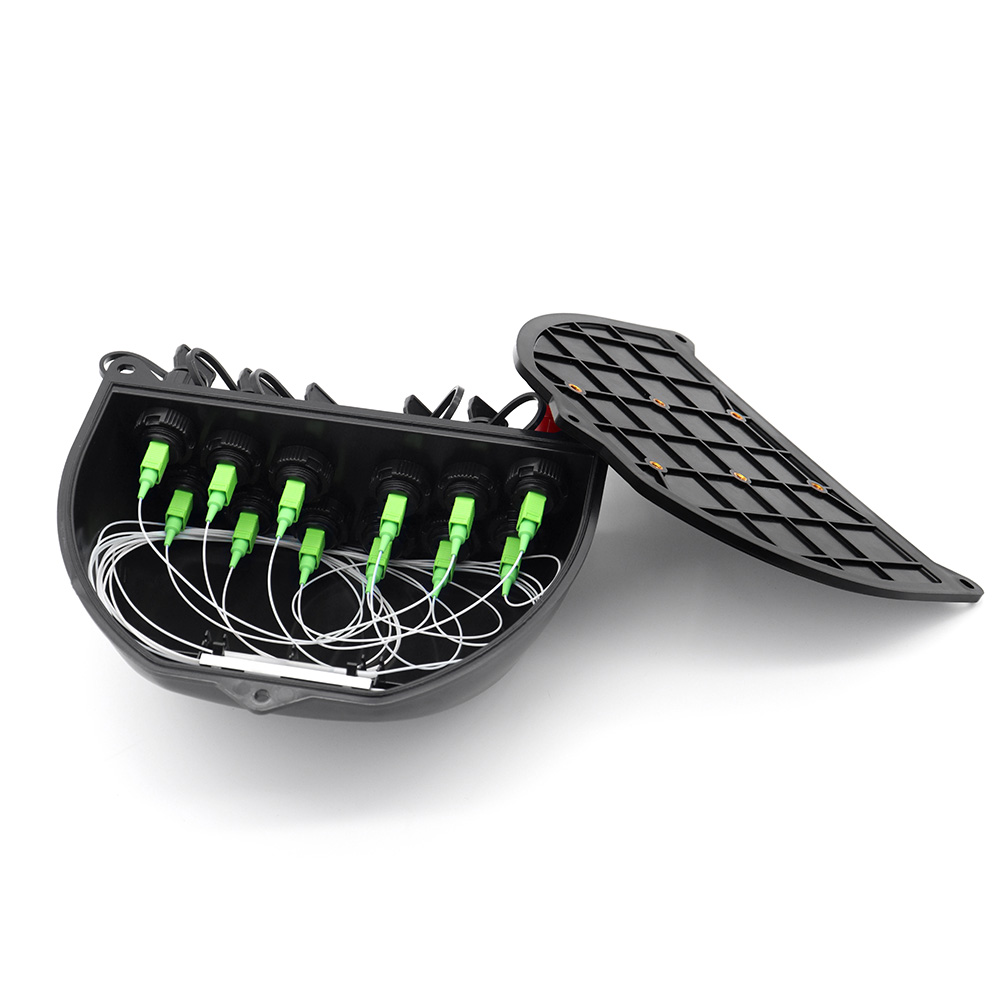

▶Internal multi-wiring, can be independent or combined with different types of  PLC Splitter.

▶Corning、Huawei and conventional waterproof adapters can be installed, And these adapters can be distinguished by different colors

▶Ultrasonic welding, excellent sealing performance, Waterproof to IP68.

The bottom shell and upper cover are welded by hot plate welding, which is not detachable...Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More

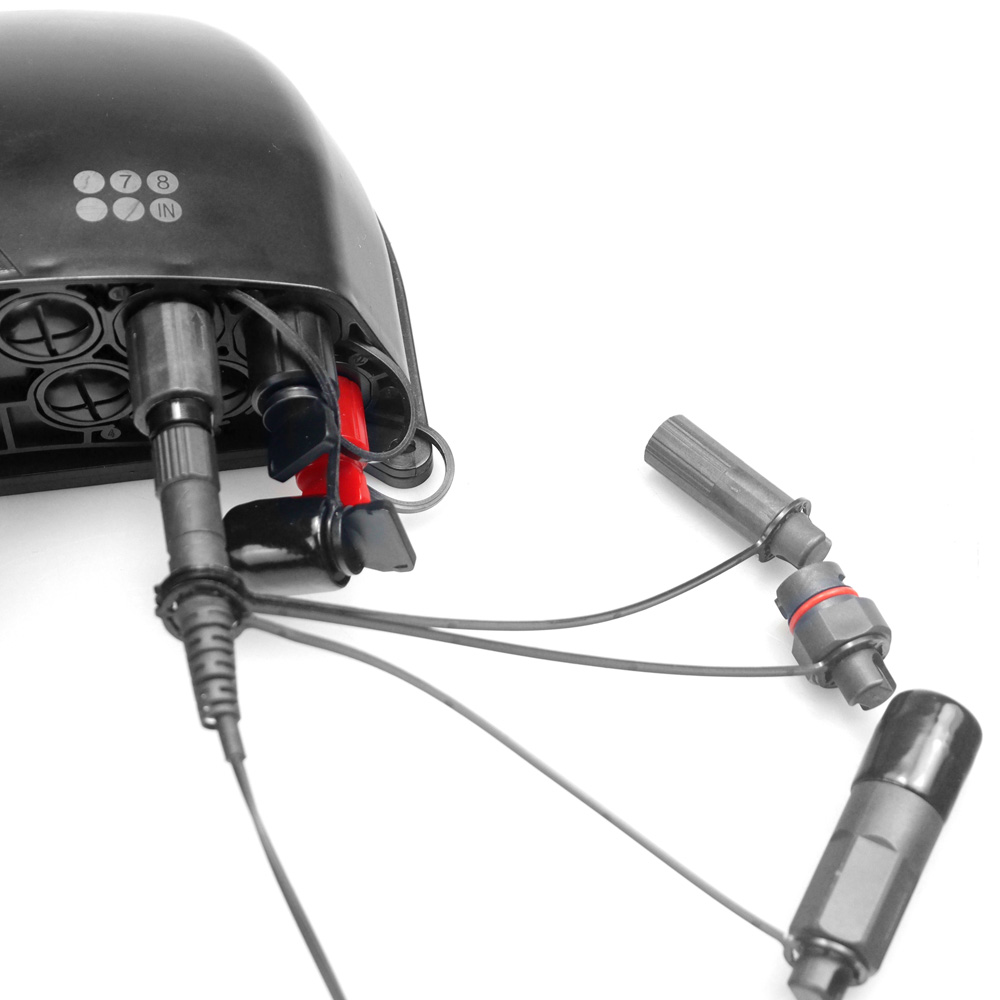

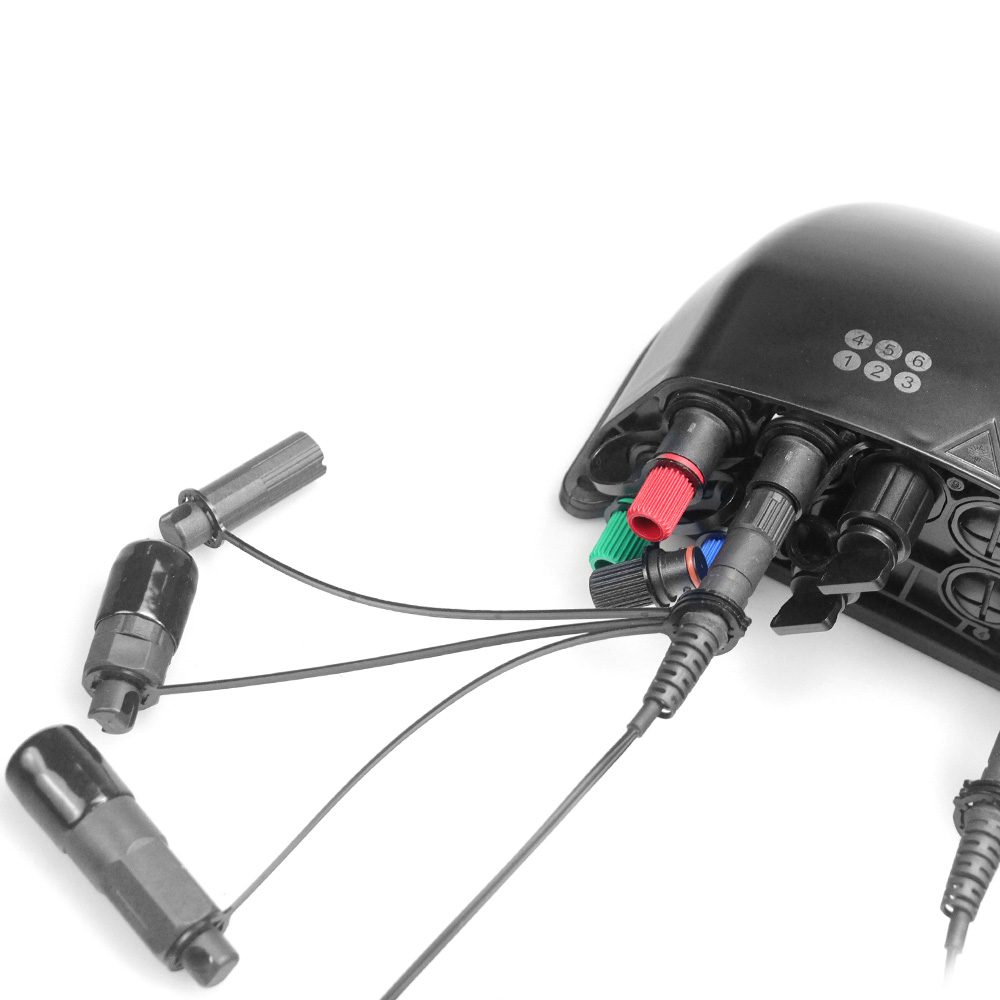

Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
