24 Core Fiber Optic Distribution Box For Splicing Patching Passive Component

24 Core Fiber Optic Distribution Box For Splicing Patching Passive Component

Model
CFO-FDB-63
MOQ
>500
Place of Origin
China
Brand
CFO
Material
PC+ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

This series is applicable to the FTTx project and provide mechanical protection for a fiber management system that includes the functions of splicing, patching, and passive component integration. It is rated IP54, suitable for indoor or outdoor applications.

Configuration



Model

CFO-FDB-63A

Passageway

Max.24 core

Dimension

306*245*81(mm)

Material

PC+ABS

Box Colour

White

Compatibility

Fiber Optic Cables

Protection LevelIP54InstallationWall Mounted, Holding Pole
Operating temperature-25℃ +65℃Adapter TypeSC


Products Features

24 Core Fiber Optic Distribution Box For Splicing Patching Passive Component

  • 1. It was made from Plastic for outdoor environments.

    2. Suitable for Pole&wall-mounted.

    3. The cable entrances: 3-port for incoming cable up to φ14mm, 24-port for outgoing cable up to φ3mm or 2X3 FTTH drop cable.

  • 4.  Can be as a required option the splitter holder of 1X16 or 1X8.

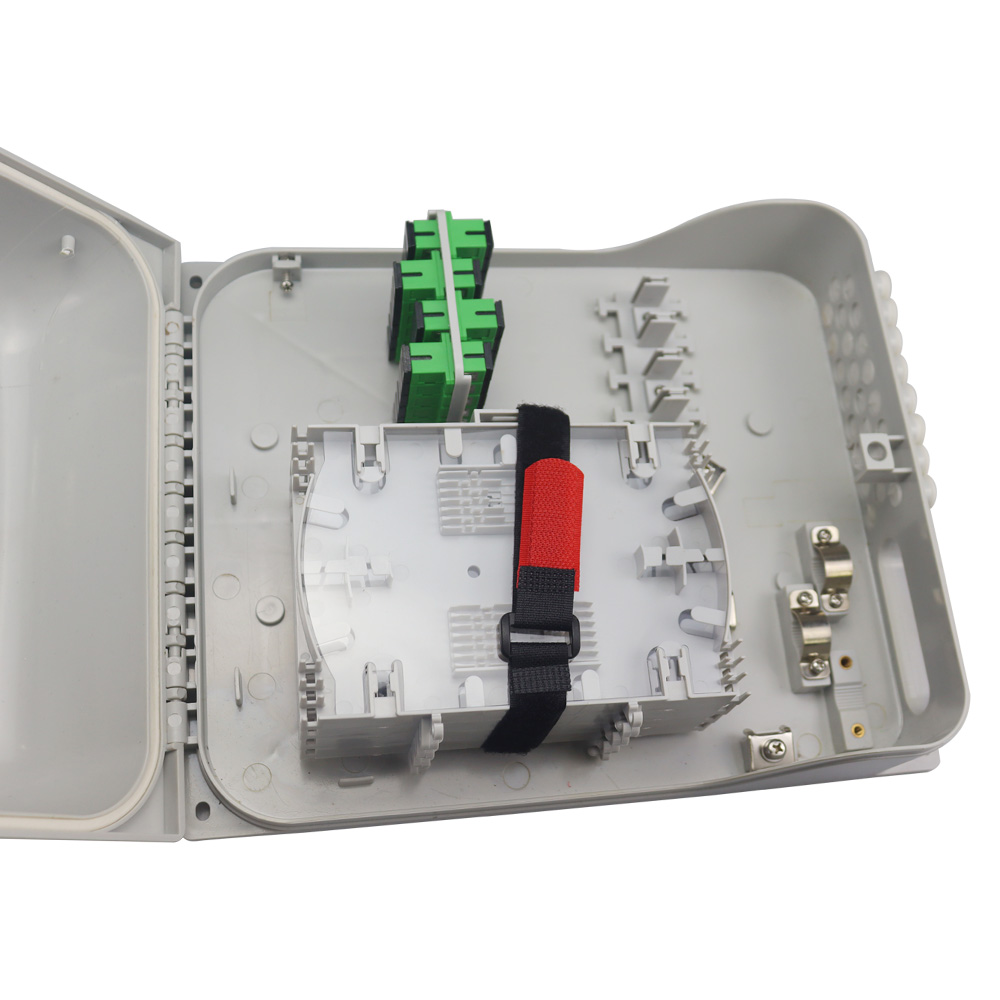

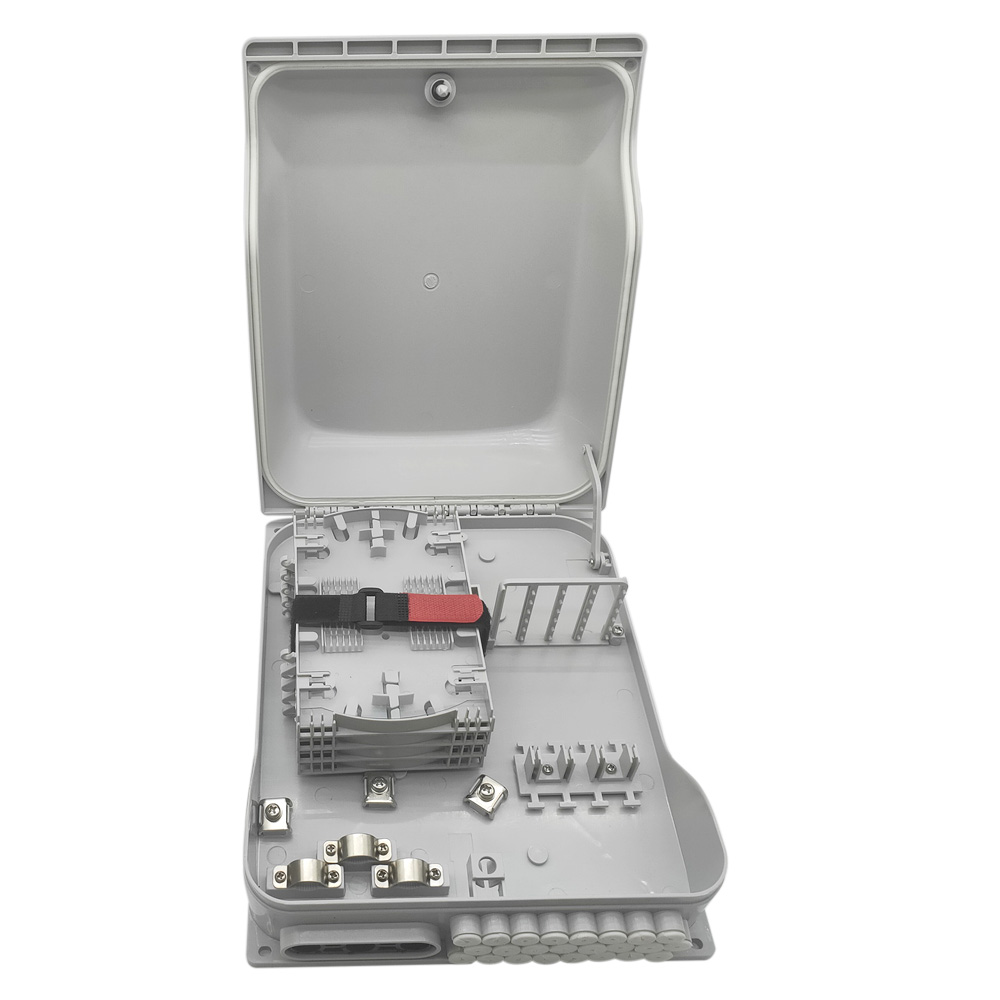

The Fiber distribution box can hold up to 24 subscribers. This box is used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
