9 Cores Waterproof Fiber Distribution Box

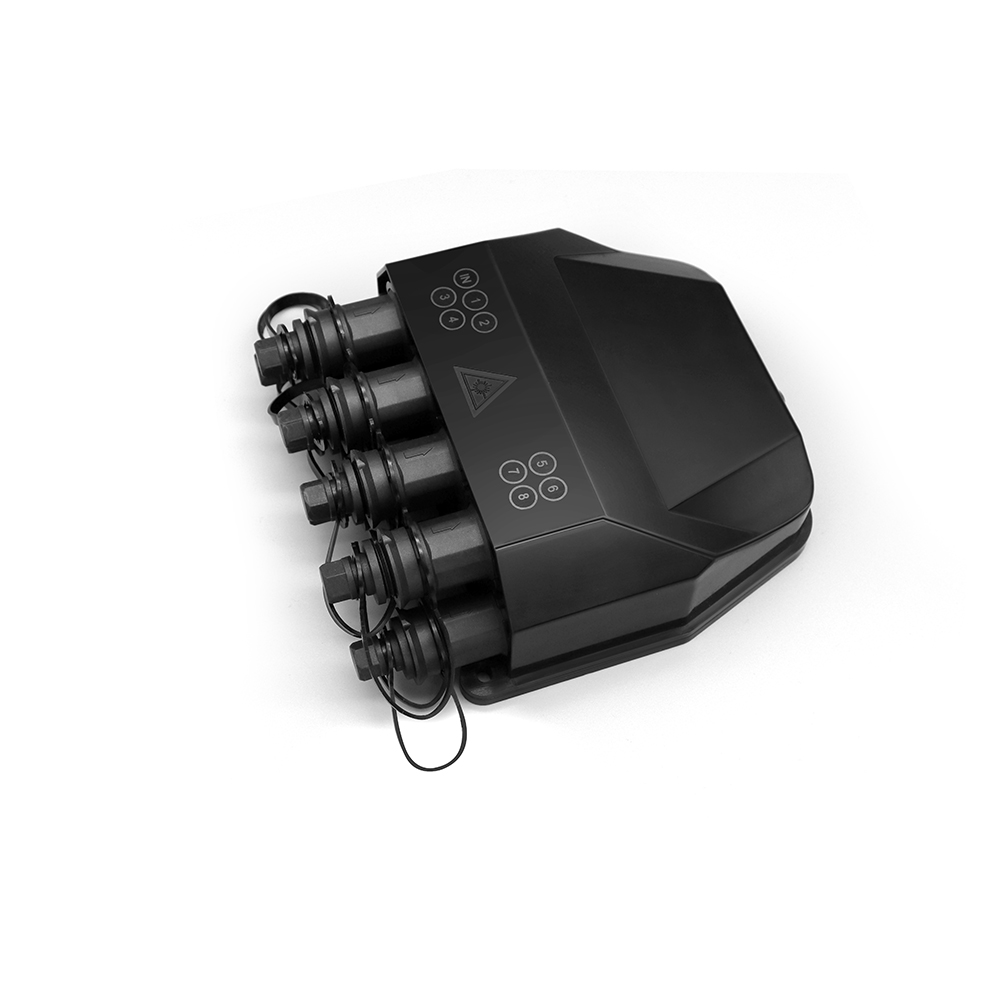

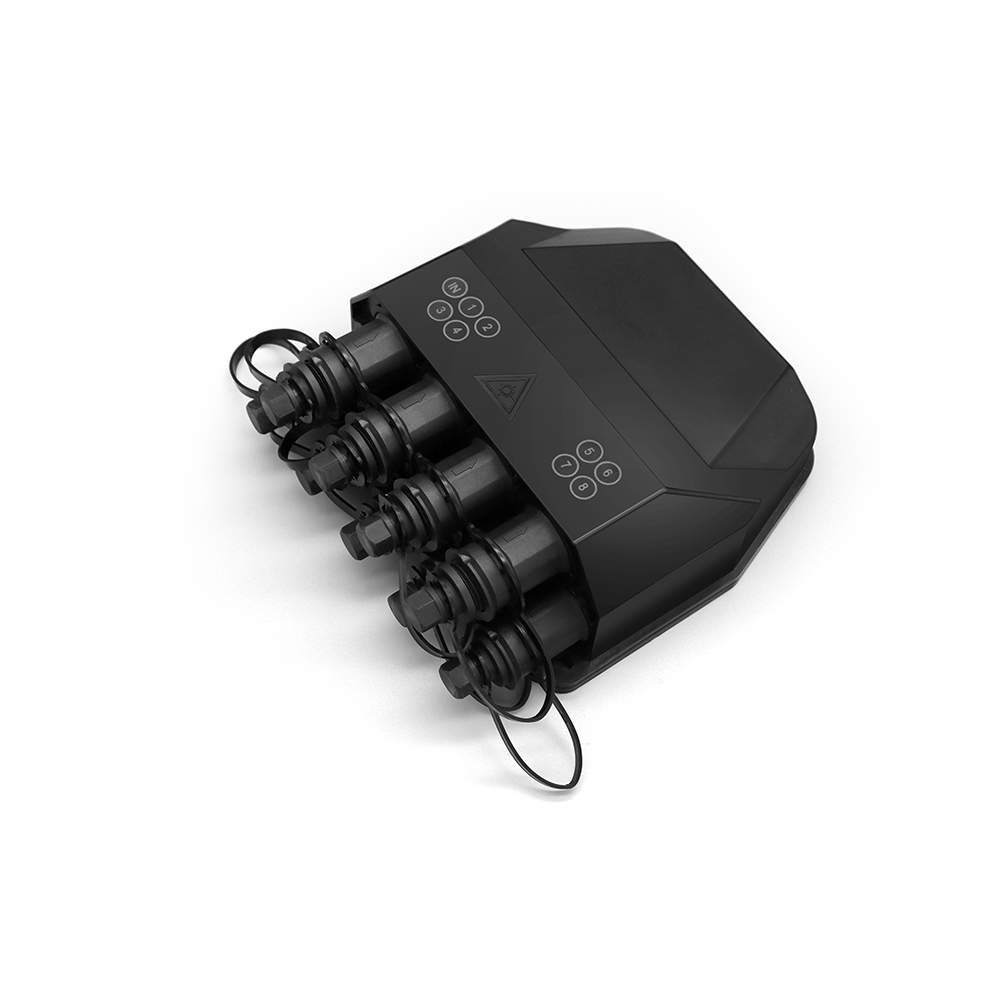

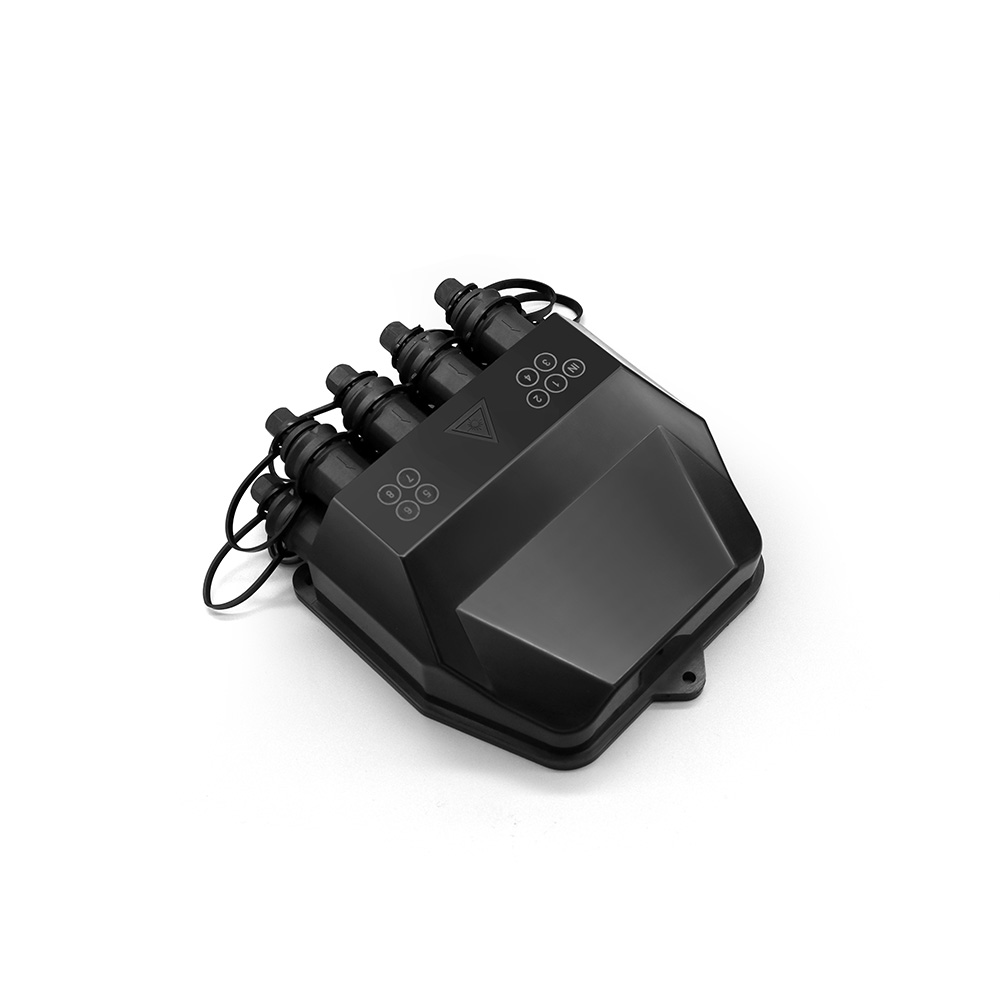

9 Cores Waterproof Fiber Distribution Box

Model
CFO-FDB-73
MOQ
>500
Place of Origin
China
Brand
CFO
Material
ABS
Delivery Time
7-25days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

This type of fiber access termination box(FDB) is able to hold up to 9 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Configuration



Model

CFO-FDB-73

Passageway

Max.9 core

Dimension

153*144*63(mm)

Material

ABS or PC+ABS or PC+PBT

Box Colour

Black

Adapter Colour

Blue、Red、Green、Black

Protection LevelIP68Weight0.22kg
Operating temperature-40℃ +65℃


Products Features

Pre-Connectorized Distribution box 9 core

▶Apply to wall-mounted Hold-up and pole-type installation

▶ High-strength material with good weather adaptability and UV resistance.

▶Port into the end and leakage design, no need to open the box, easy construction.

▶Internal multi-wiring, can be independent or combined with different types of  PLC Splitter.

▶Corning、Huawei and conventional waterproof adapters can be installed, And these adapters can be distinguished by different colors

▶Ultrasonic welding, excellent sealing performance, Waterproof to IP68.

The bottom shell and upper cover are welded by hot plate welding, which is not detachable...Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
