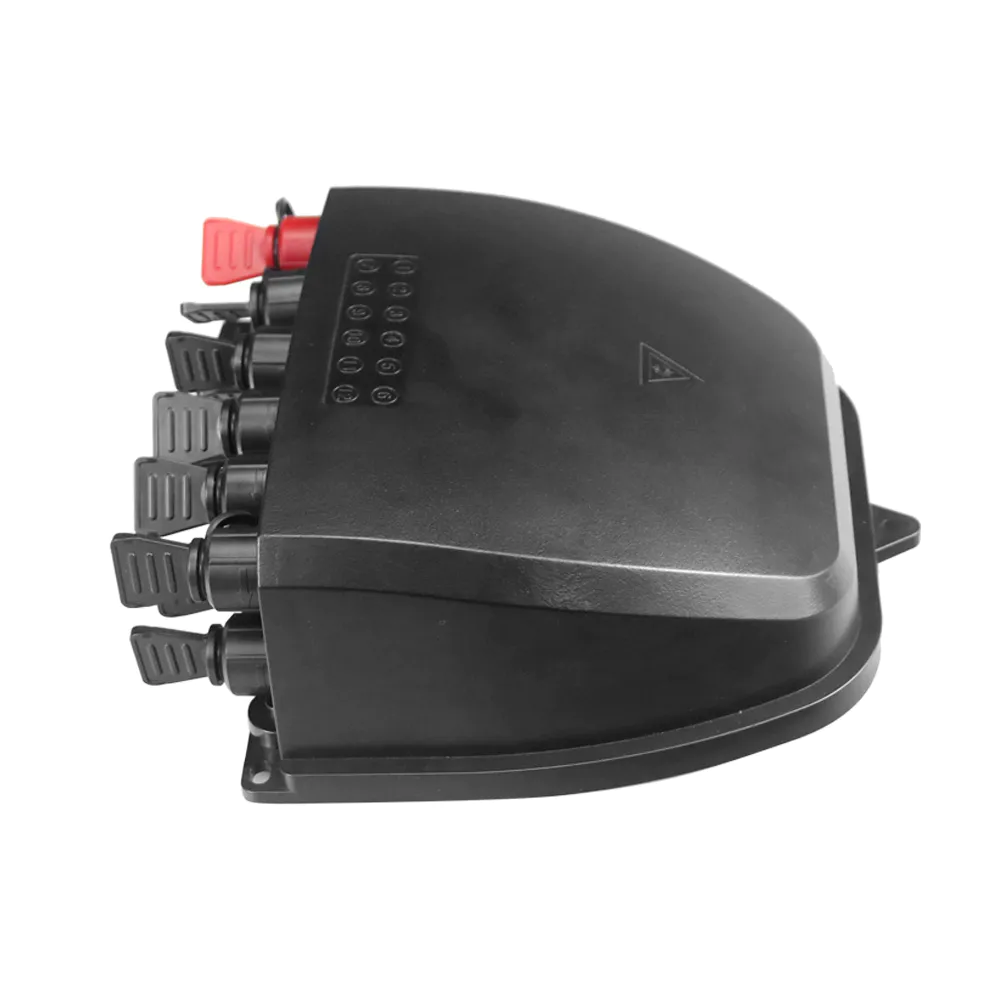

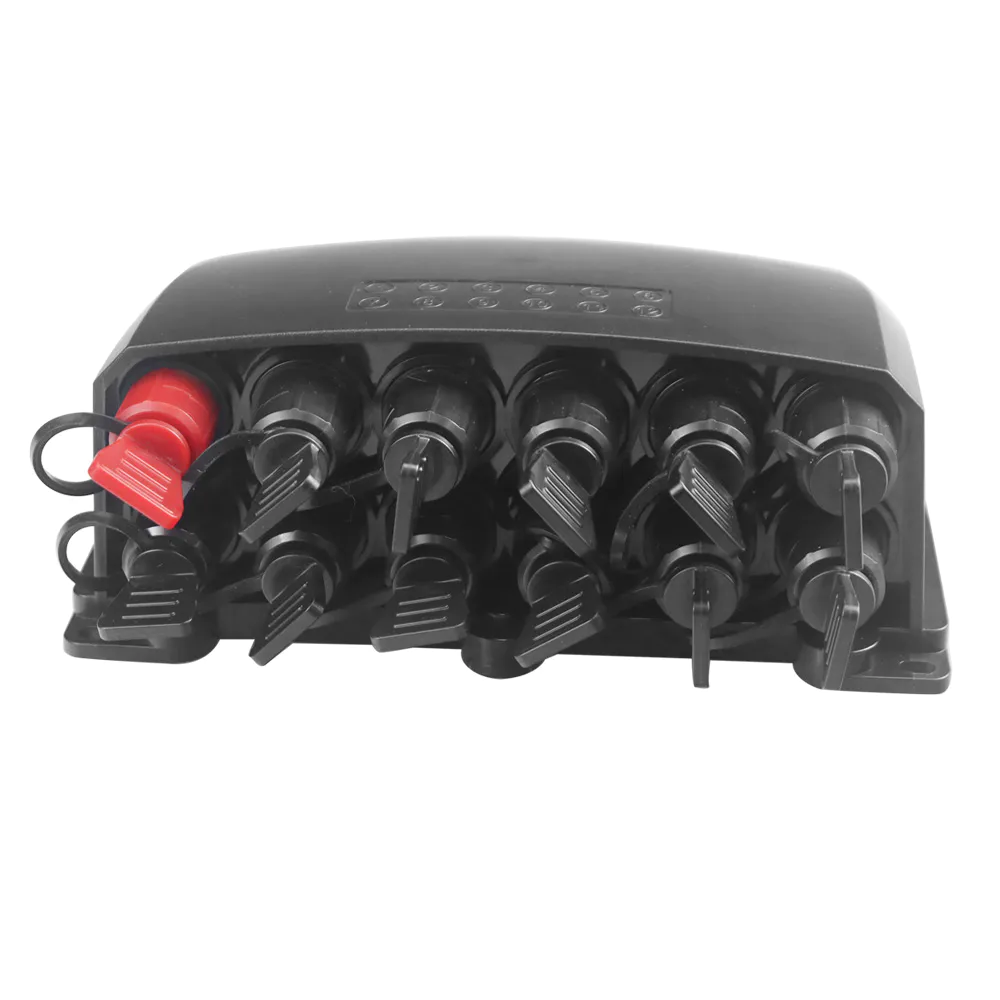

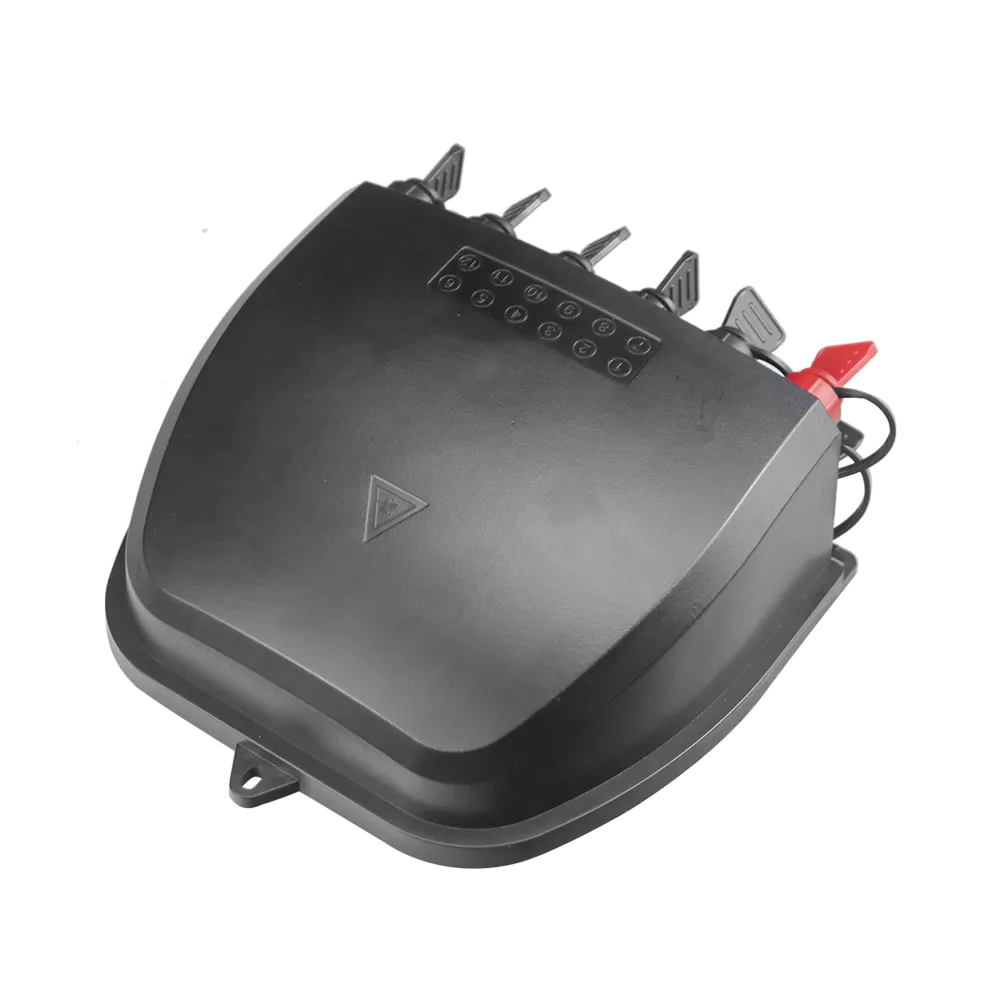

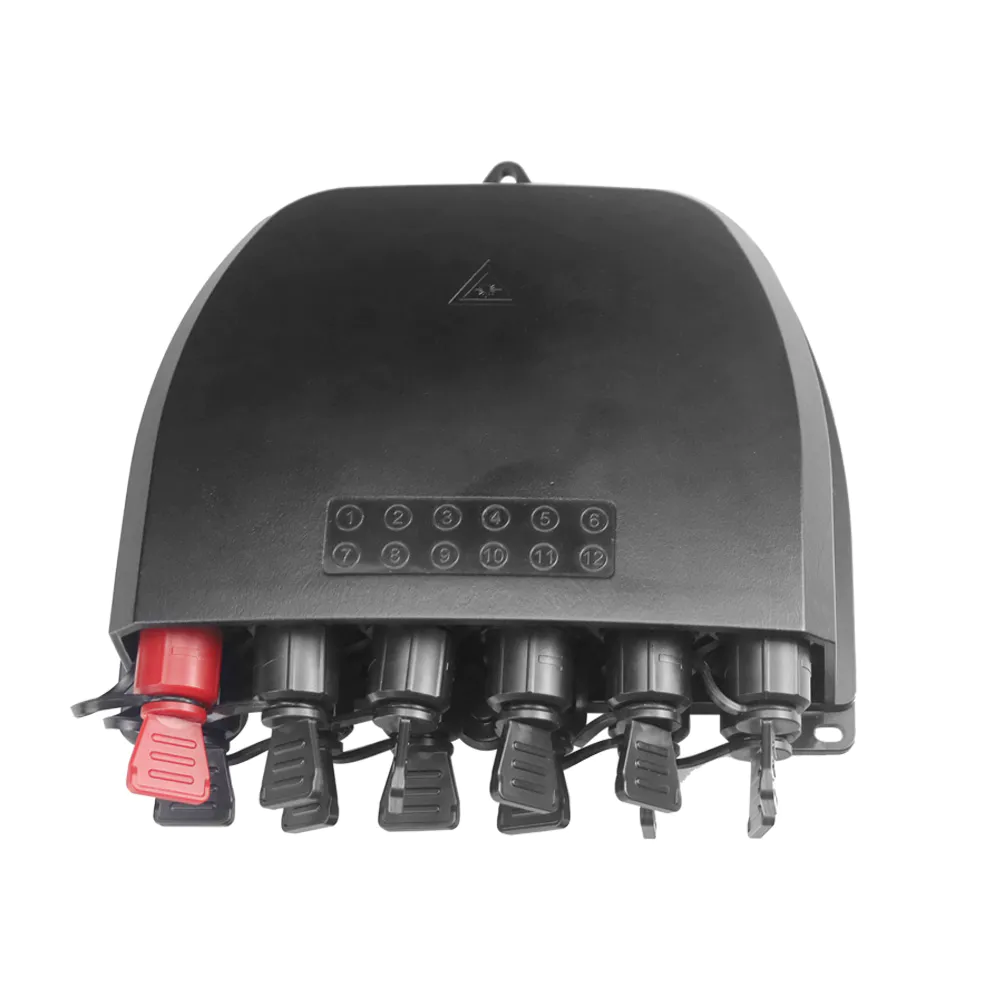

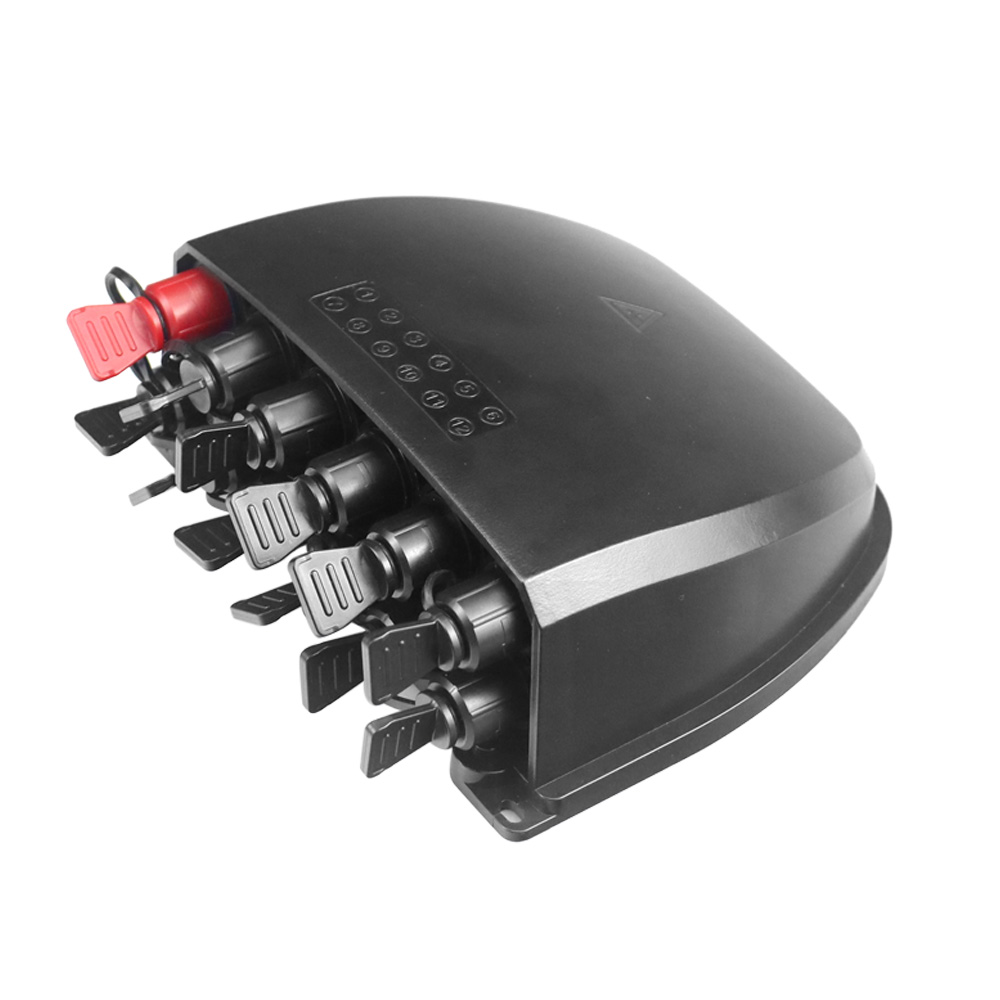

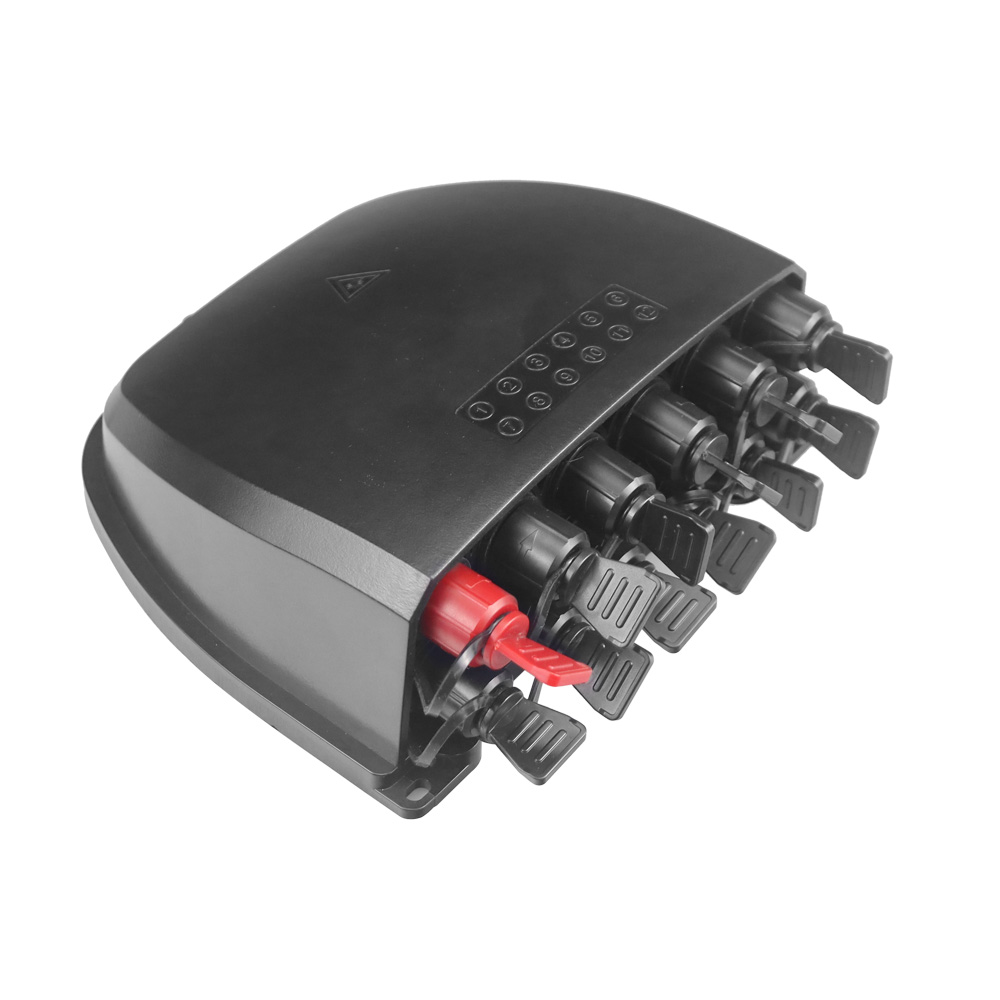

Pre-Connected 12-core Fiber Optic Distribution Box Red/Green/Black with Mini SC Adapter

Pre-Connected 12-core Fiber Optic Distribution Box Red/Green/Black with Mini SC Adapter

Model
CFO-FDB-84C
MOQ
>500
Place of Origin
China
Brand
CFO
Material
ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

This type of fiber access termination closure can hold up to 12 subscribers, The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTH communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Configuration



Model

CFO-FDB-84C

Passageway

Max.12 core

Dimension

200x180x65(mm)

Material

ABS

Box Colour

Black

Adapter Colour

Blue、Red、Green、Black

Support PLC Splitter1*12 Splitter.1 pcsAdapter Capacity(Max)12 pcs
Protection LevelIP68Weight0.54kg
Operating temperature-40℃ +65℃


Products Features

Pre-connected 12-core Fiber Optic Distribution Box Red/Green/Black with Mini SC Adapter

▶ Apply to wall-mounted Hold-up installation.

▶ High-strength material with good weather adaptability and UV resistance.

▶ Port into the end and leakage design, no need to open the box, easy construction.

▶ Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

▶ Different color adapters are supported to distinguish the box channels.

▶ Water-proof, dust-proof, anti-aging, protection level up to IP68.

The bottom shell and upper cover are welded by hot plate welding, which is not detachable...Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
