Model | CFO-FDB-95A | Passageway | Max.10 core |
Dimension | 334x210x112(mm) | Material | ABS |
Box Colour | Black | Adapter Colour | Blue、Red、Green、Black |
Support PLC Splitter | 1*8.1 pcs | Adapter Capacity(Max) | 10-12 pcs |
Splice Tray Capacity | Max.96 cores | Support Adapter | Mini SC, Optitap, Slim Waterproof Adapter |
Protection Level | IP68 | Net Weight | 1.75kg |
Operating temperature | -40℃ +65℃ | Gross Weight | 2.25kg |

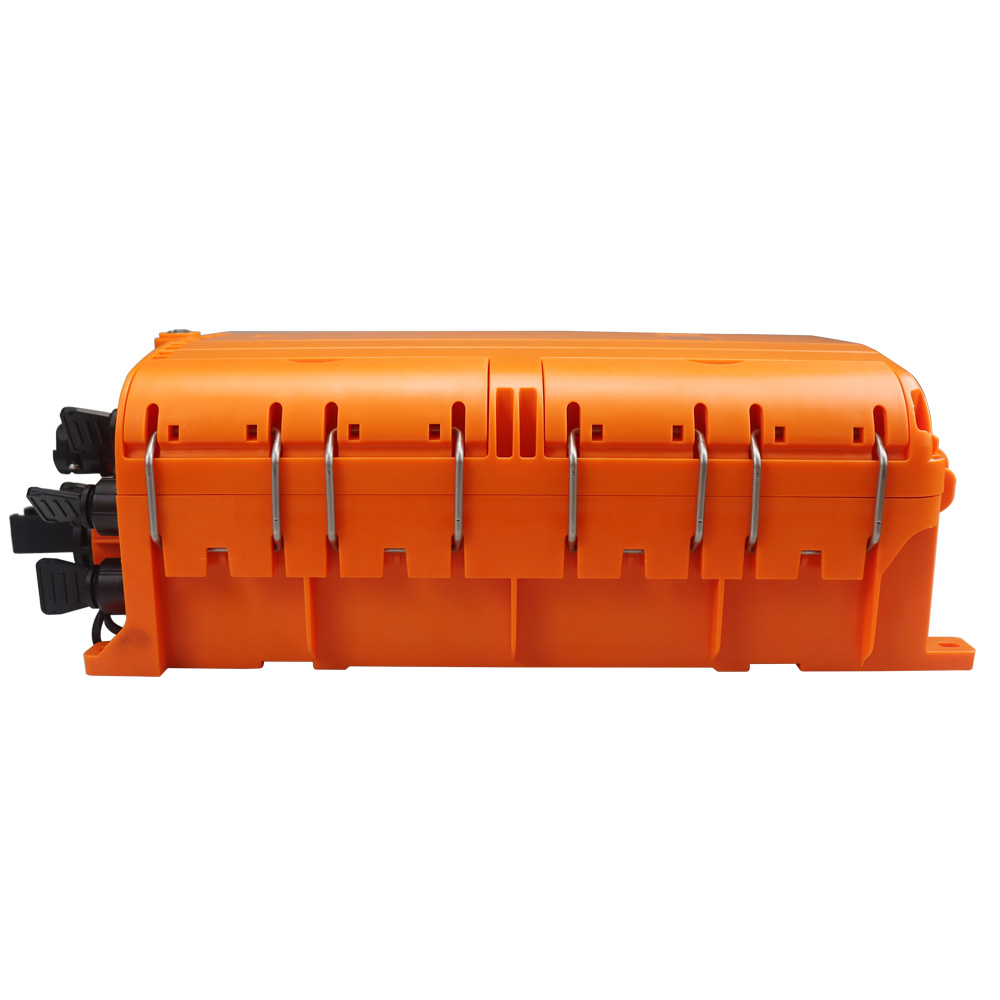

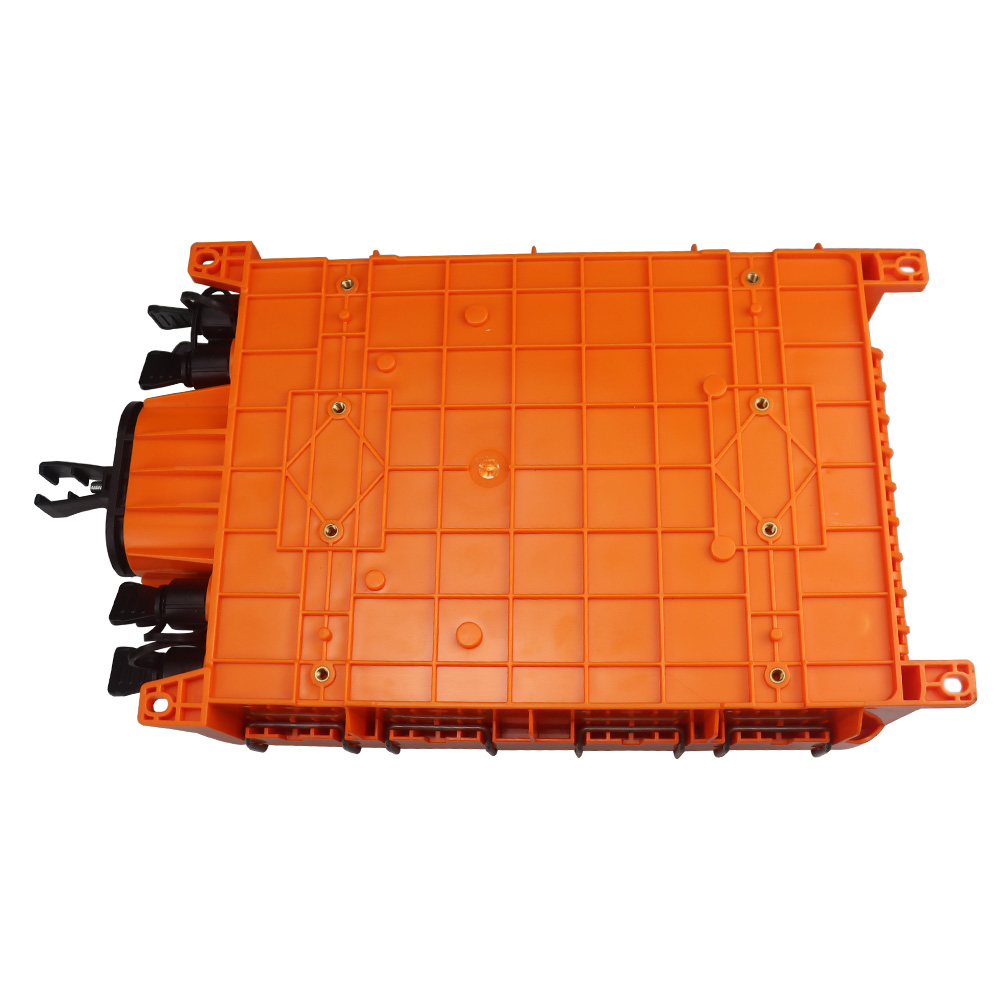

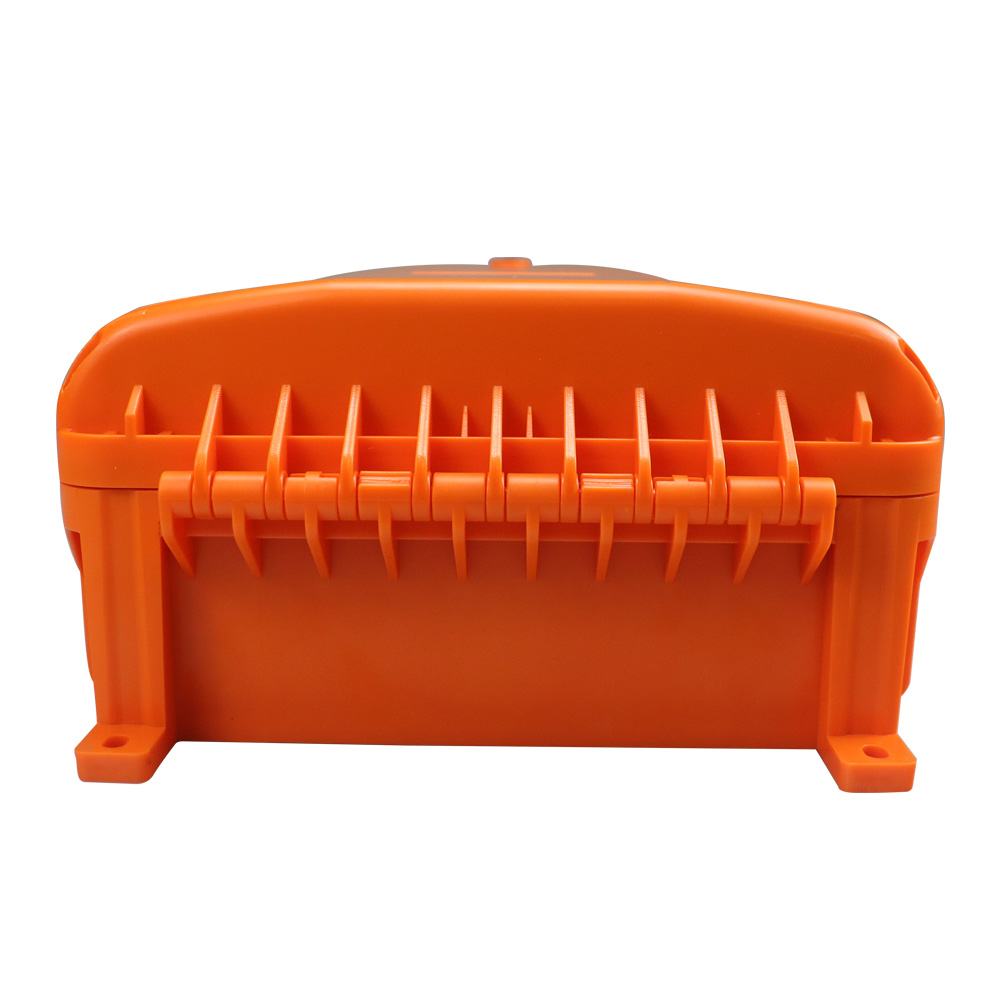

Pre-Connected 10 Prot Fiber Optic Distribution Box For FTTH FTTB FTTC FTTA
▶ Material: PC+ABS,wet-proof、water-proof、dust-proof、anti-aging,protection level up to IP68.

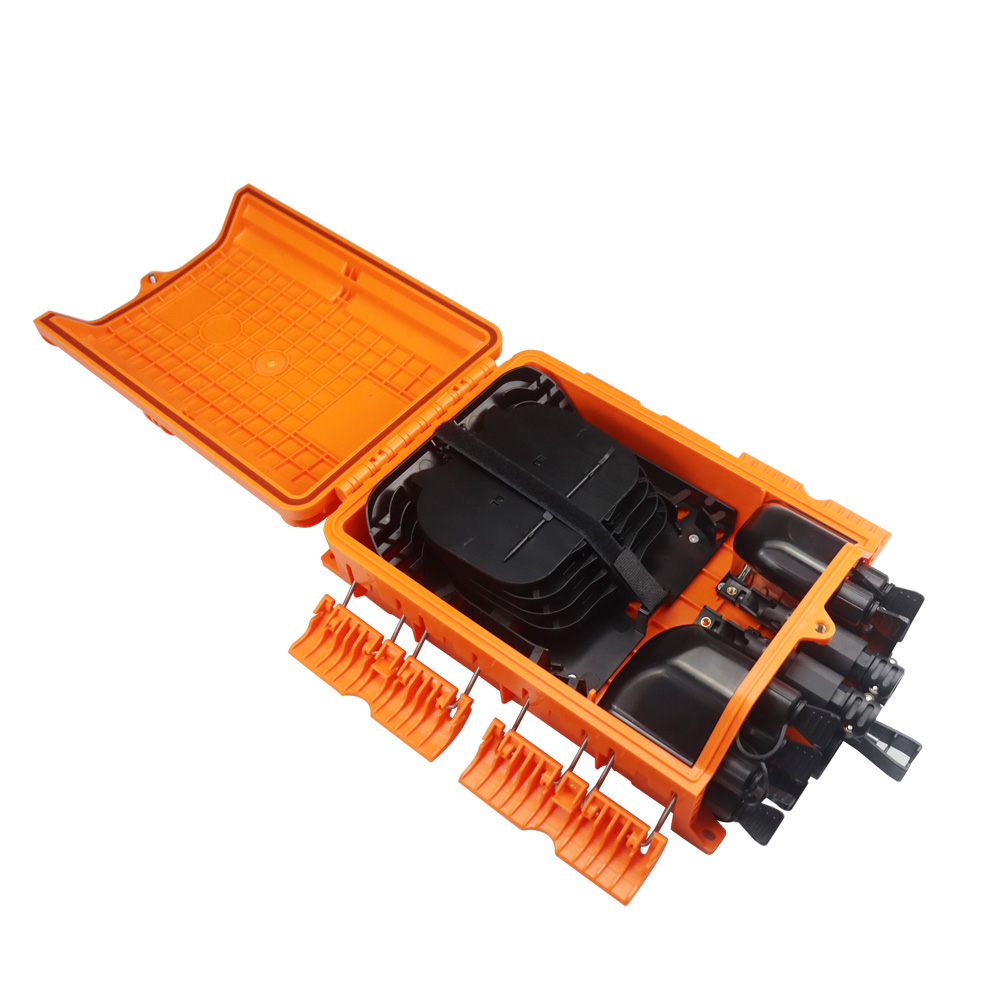

▶ Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
▶ Cable, pigtails, and patch cords run through their paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
▶ The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
▶ Do More supports 10 waterproof adapters. However, the cable holes can be expanded to 4 (1 oval hole +2 round holes), which supports 10 adapters.
▶ Prefabricated end waterproof interface for fast connection wiring.
▶ Cabinet can be wall-mounted or column-mounted, suitable for indoor and outdoor use.
The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
