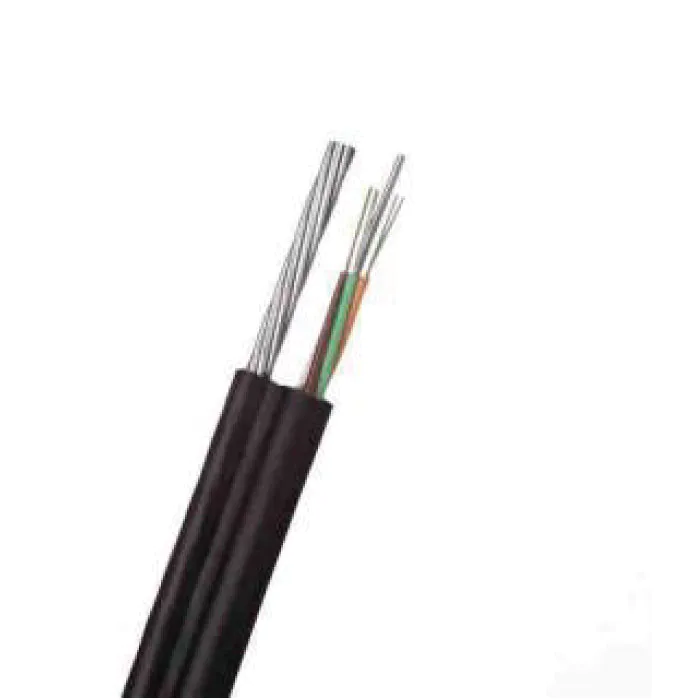

Gytc8y-2-24f Optical Fiber Cable Non Armored Aerial Fig8 For Fttx

Description

Carefiber's 2-24 Core GYXTC8Y Central Loose Tube Figure 8 Self-Supporting Aerial Outdoor Single Jacket Steel Wire Strength Fiber Optic Cables, suitable for installation in aerial environment for long haul communications. The high tensile strength of stranded wires meets the requirement of self-supporting. It can also be used for duct and buried methods.

Product Structure

Features

1. Excellent mechanical and environmental performance.

2. Small cable diameter, light cable weight, self-supporting, easy to install.

3. Low dispersion and attenuation.

4. Medium Density Polyethylene Jacket: low friction installation, excellent protection from environmental hazards.

5. Stainless steel or galvanized steel self-supporting.

6. Load-supporting element is made of zinc-coated wire that provides a high resistance grade to long tension.

7. High-strength loose tube that is hydrolysis resistant.

8. Light self-supporting cable with the figure 8 shape.

Applications

1. Suitable for aerial duct and buried method

2. Long-distance and local area network communication

3. CATV & computer network system

4. Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable

5. Laying method: overhead, pipeline

Specification

Fiber Count	Nominal Diameter(mm)	Nominal Weight(kg/km)	Allowable Tensile Load(N)		Allowable Crush Resistance(N/100mm)
			Short Term	Long Term‍	Short Term	Long Term‍
2~12	6.0x12.5	85	4000	2000	200	100
>12‍	Available upon customer's request!

Packge Method

Multiple packaging options are available.

0.00 ~~0.00~~

Advantages of Carefiber

1. Good Aramid yarn has excellent tensile performance.
2. Fast delivery,200km ADSS cable regular production time of about 10 days
3. Can using glass yarn instead of aramid to anti-rodent
