FTTx Outdoor Fiber Optic Cable Non-Armored Uni-Tube Single Jacket Fiber Optic Cable - GYXY

FTTx Outdoor Fiber Optic Cable Non-Armored Uni-Tube Single Jacket Fiber Optic Cable - GYXY

Model
GYXY
MOQ
>500
Place of Origin
China
Brand
CFO
Material
PE
Delivery Time
7-25days
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

Carefiber's Non-Armored Uni-Tube optical cable with fibers placed in the loose buffer tube. The cable core is protected with jelly to prevent water intrusion and migration, and covered with a black polyethylene out jacket. Two embedded FRP or metallic wires provide the desired tension.

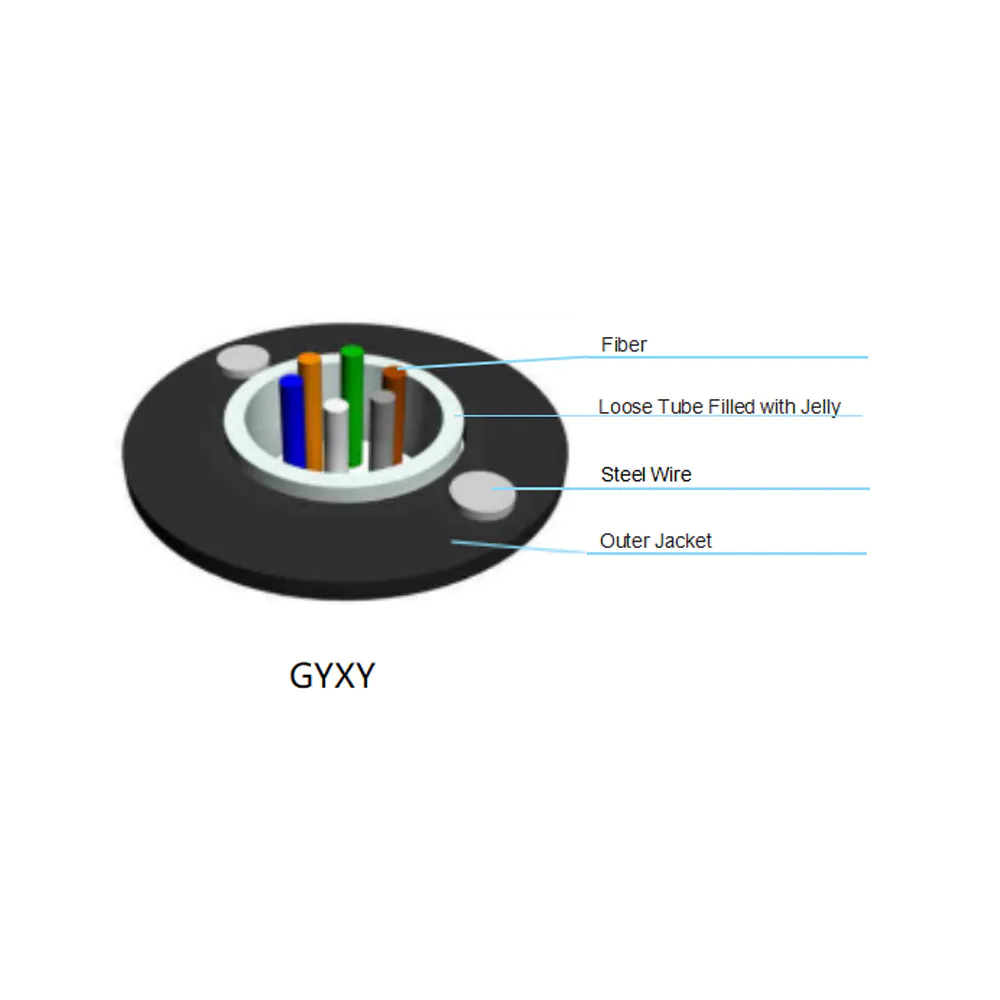

Product Structure
Features

1. Good mechanical and temperature performance
2. The high-strength loose tube that is hydrolysis resistant
3. Special tube-filling compounds ensure the critical protection of fiber
4. Crush resistance and flexibility
5. Two parallel steel wires ensure tensile strength
6. Small diameter, lightweight and friendly installation
7. Embedded strength members provide desirable tensile strength. Compact, easy to install.
8. UV and moisture-resistant design.

Applications

1. Usable in Duct or Aerial
2. Long-haul communication system
3. Junction communication system.
4. FTTx.

Specification

Fiber

Count

Nominal

Diameter(mm)

Nominal

Weight(kg/km)

Allowable

Tensile Load(N)

Allowable Crush

Resistance(N/100mm)

Short TermLong TermShort TermLong Term
2~126.25210004001000400
14~247.06412005001000400
Packge Method

Multiple packaging options are available.
