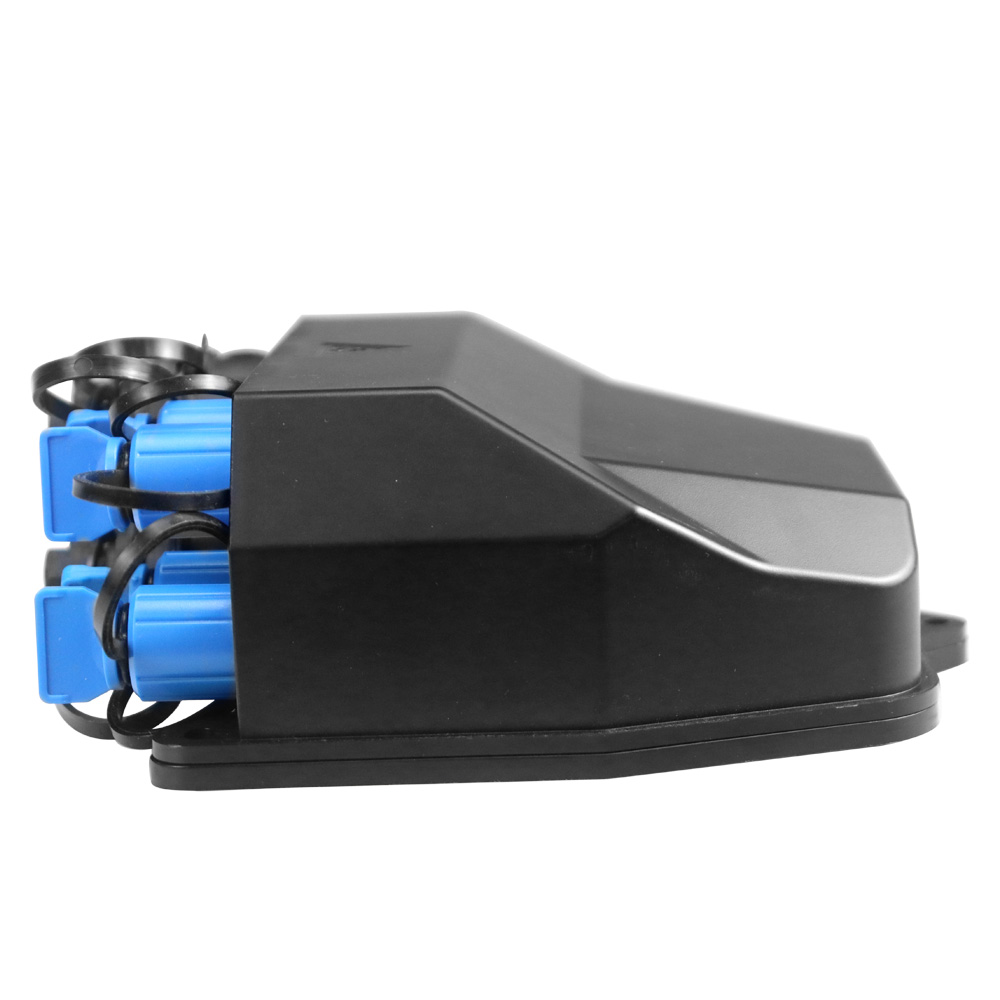

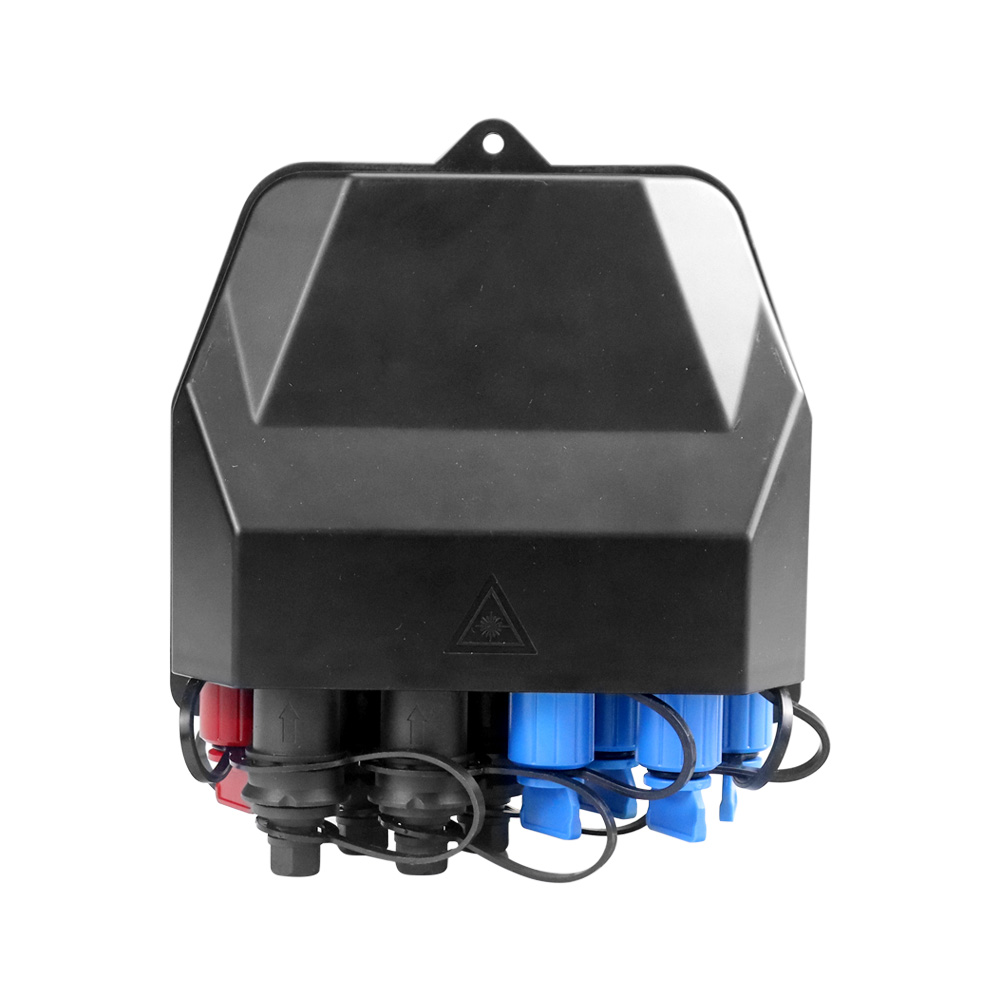

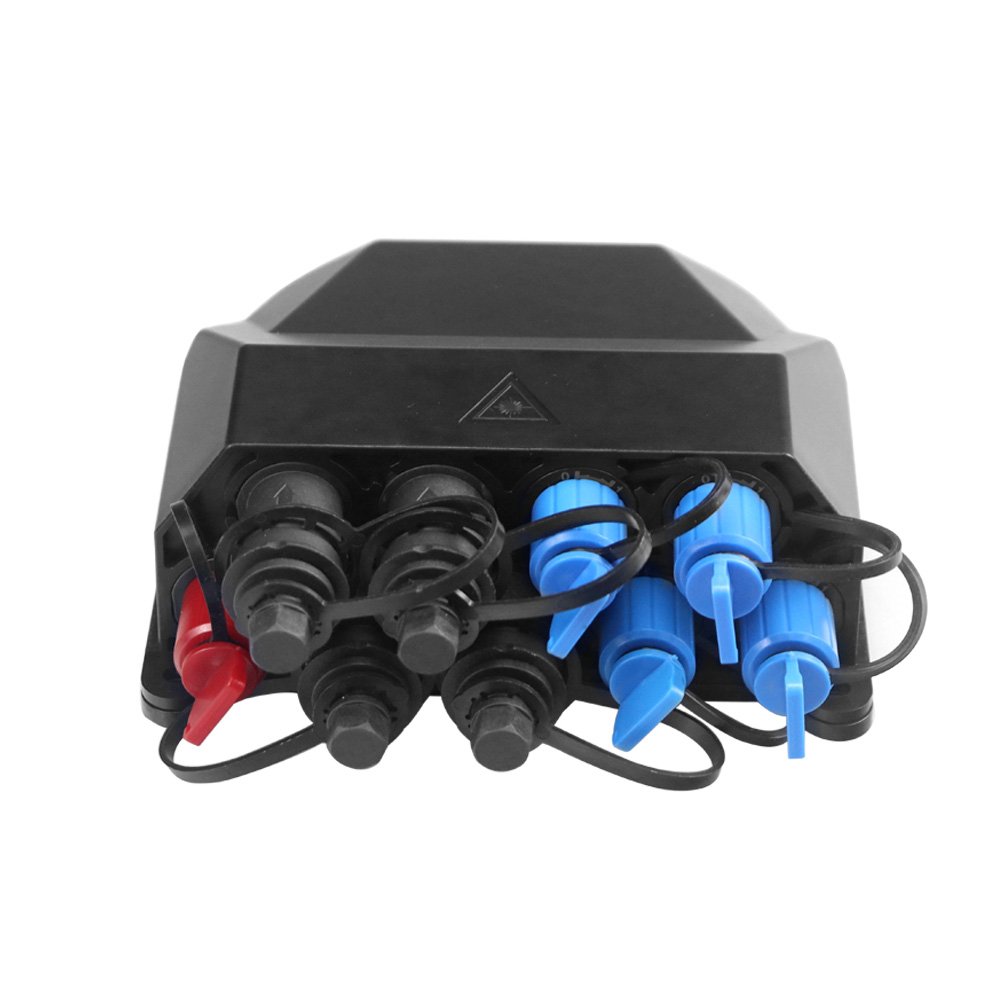

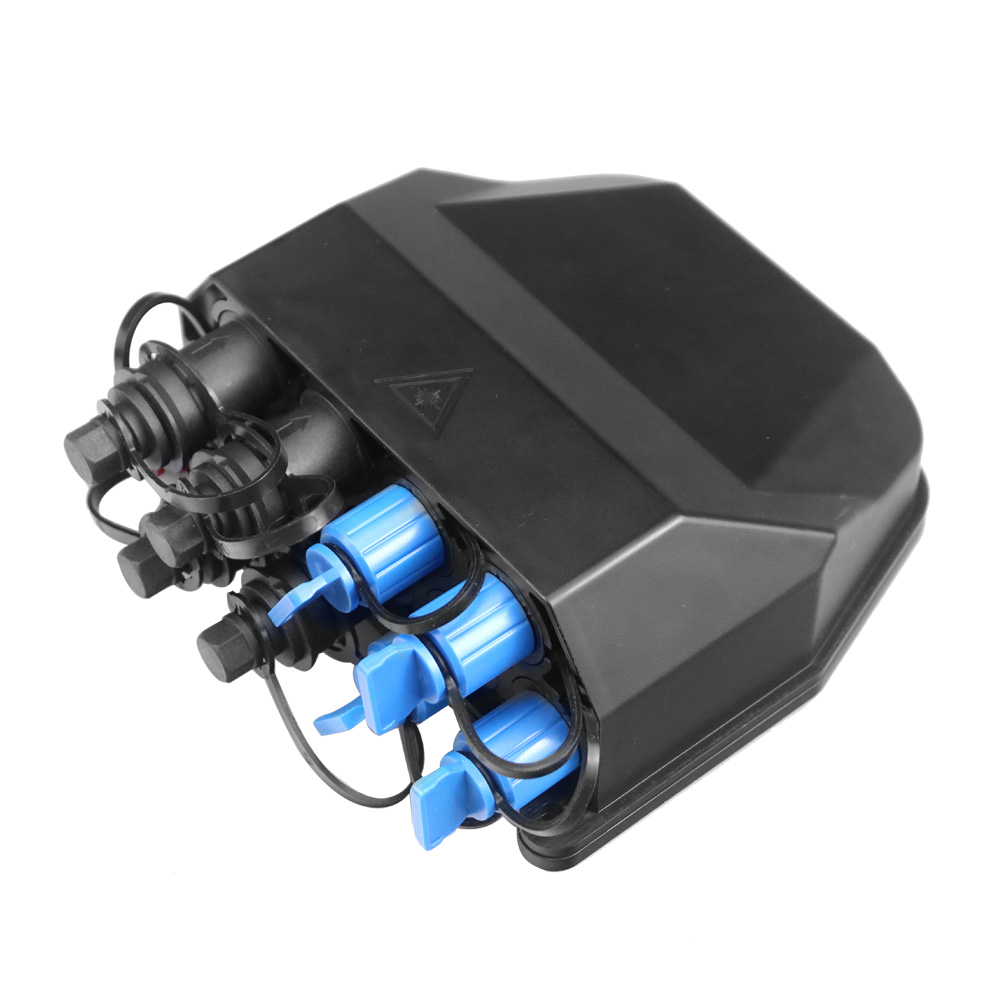

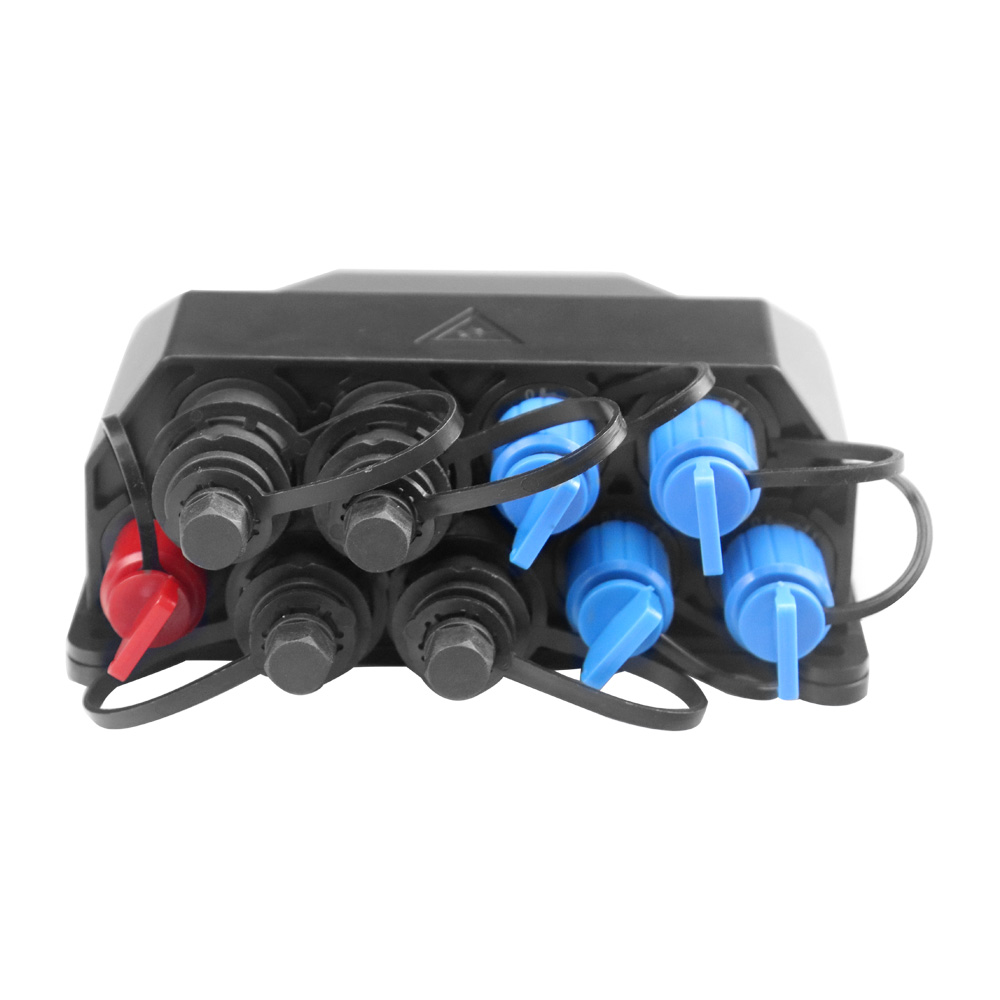

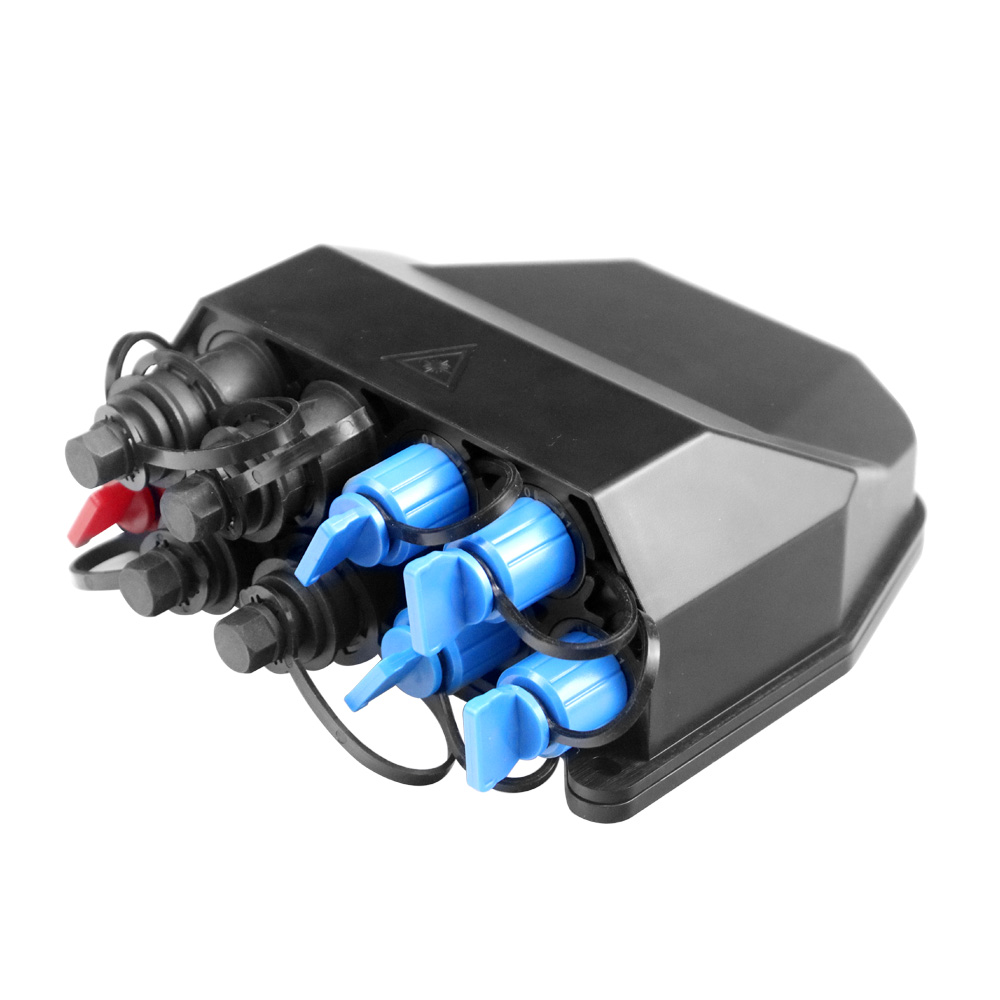

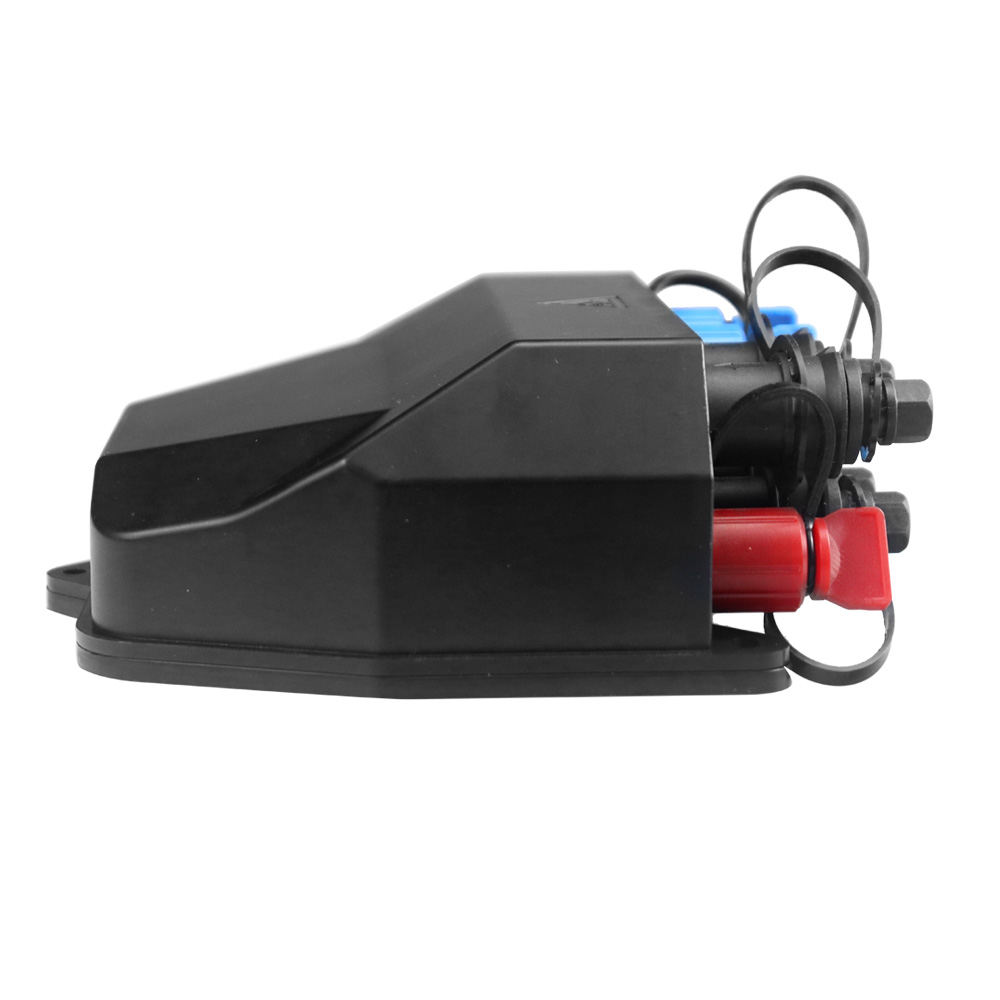

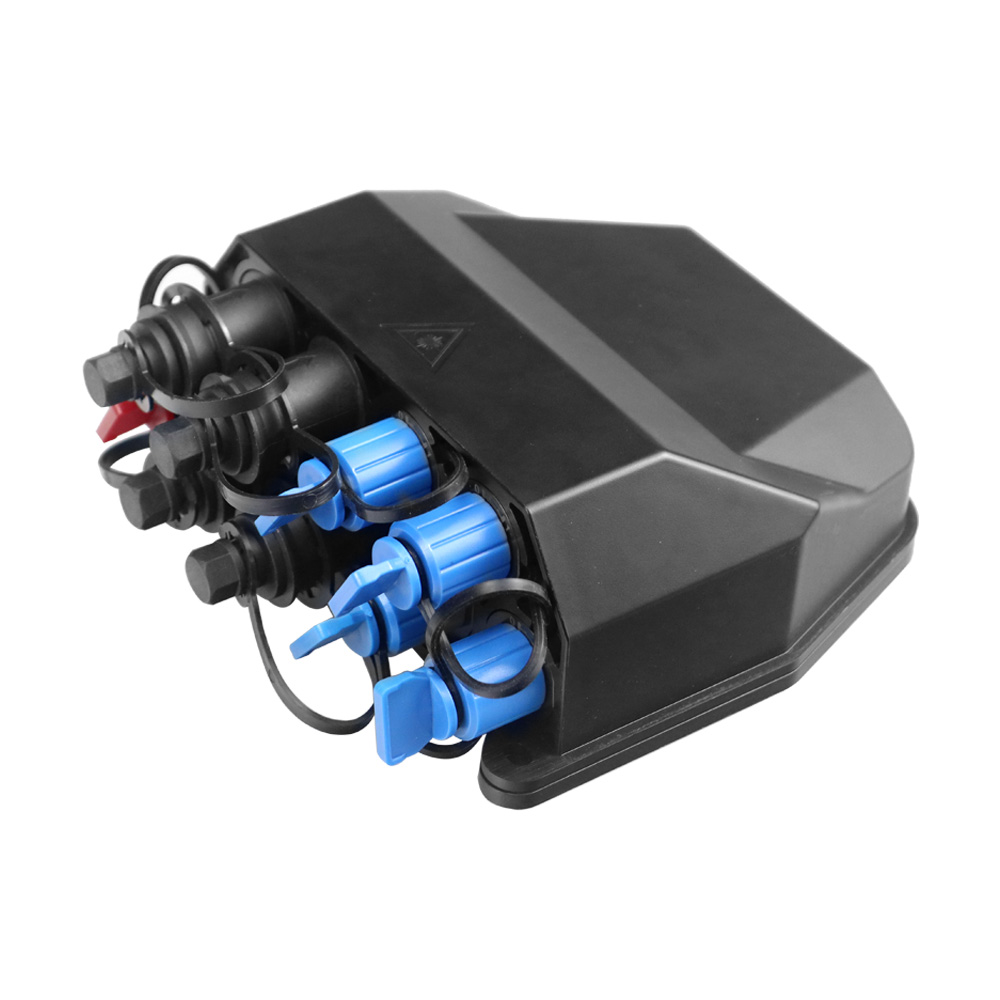

Black 9 Ports Fiber Optic Termination Box Compatible With Waterproof Adapter

Black 9 Ports Fiber Optic Termination Box Compatible With Waterproof Adapter

Model
CFO-FDB-73
MOQ
>500
Place of Origin
China
Brand
CFO
Material
ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

Fiber Optic Distribution Box is an indispensable device for FTTH, FTTB, FTTC, and FTTA networks. This box is designed to provide a secure and efficient means for the termination, distribution, and protection of optical fiber connections. It is available in white color and features SC, LC, ST, and MPO connectors for maximum flexibility. It can accommodate up to 9 ports and is suitable for a wide range of applications. This Optical Fiber Distribution Box is ideal for connecting different types of optical fibers, such as single-mode and multi-mode fibers. It is also designed for easy installation and maintenance. The Optical Fiber Distribution Boxes are reliable, durable, and offer excellent performance.

Configuration



Model

CFO-FDB-73

Passageway

Max.9 core

Dimension

153x144x62.69(mm)

Material

ABS

Box Colour

Black,

Adapter Colour

Blue、Red、Green、Black

Support PLC Splitter1*4,1*5,1*6,1*8Adapter Capacity(Max)9 pcs
Protection LevelIP68Weight0.22kg
Operating temperature-40℃ +65℃


Products Features

Black 9 Ports Fiber Optic Termination Box Compatible With Waterproof Adapter

▶ Apply to wall-mounted Hold-up and pole-type installation
▶ High-strength material with good weather adaptability and UV resistance.
▶ Port into the end and leakage design, no need to open the box, easy construction.
▶ Internal multi-wiring, can be independent or combination with different types of PLC Splitter.
▶ Slim, Optitap, Mini SC, and conventional waterproof adapters can be installed, And these adapters can be distinguished by different colors
▶ Ultrasonic welding, excellent sealing performance, Waterproof to IP68.

The bottom shell and upper cover are welded by hot plate welding, which is not detachable...Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
