ABS Material 16 Ports Pre-connected Fiber Optic Distribution Box for Durable and Long-Lasting Performance

Model
CFO-FDB-99A
MOQ
>500
Place of Origin
China
Brand
CFO
Material
PC+ABS
Delivery Time
5-15days
Start Port
shenzhen
Supply Ability
500pcs/day
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Description

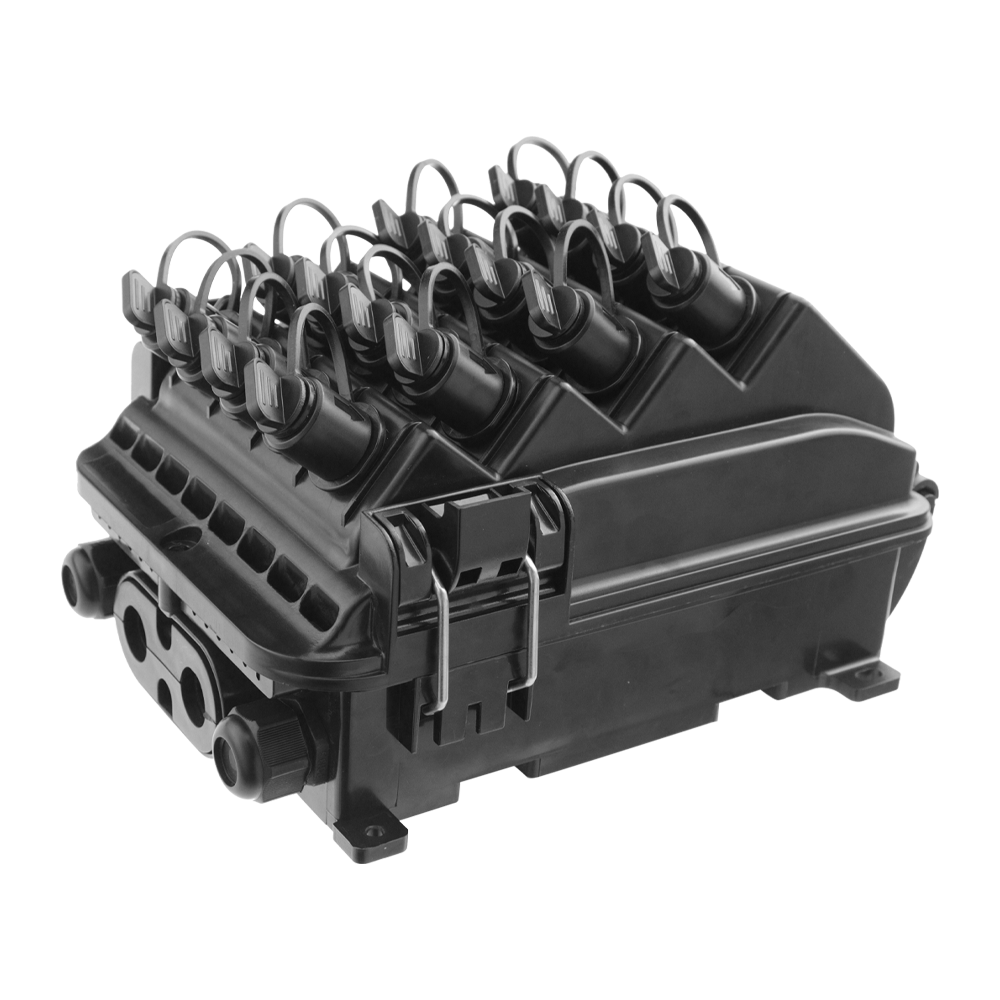

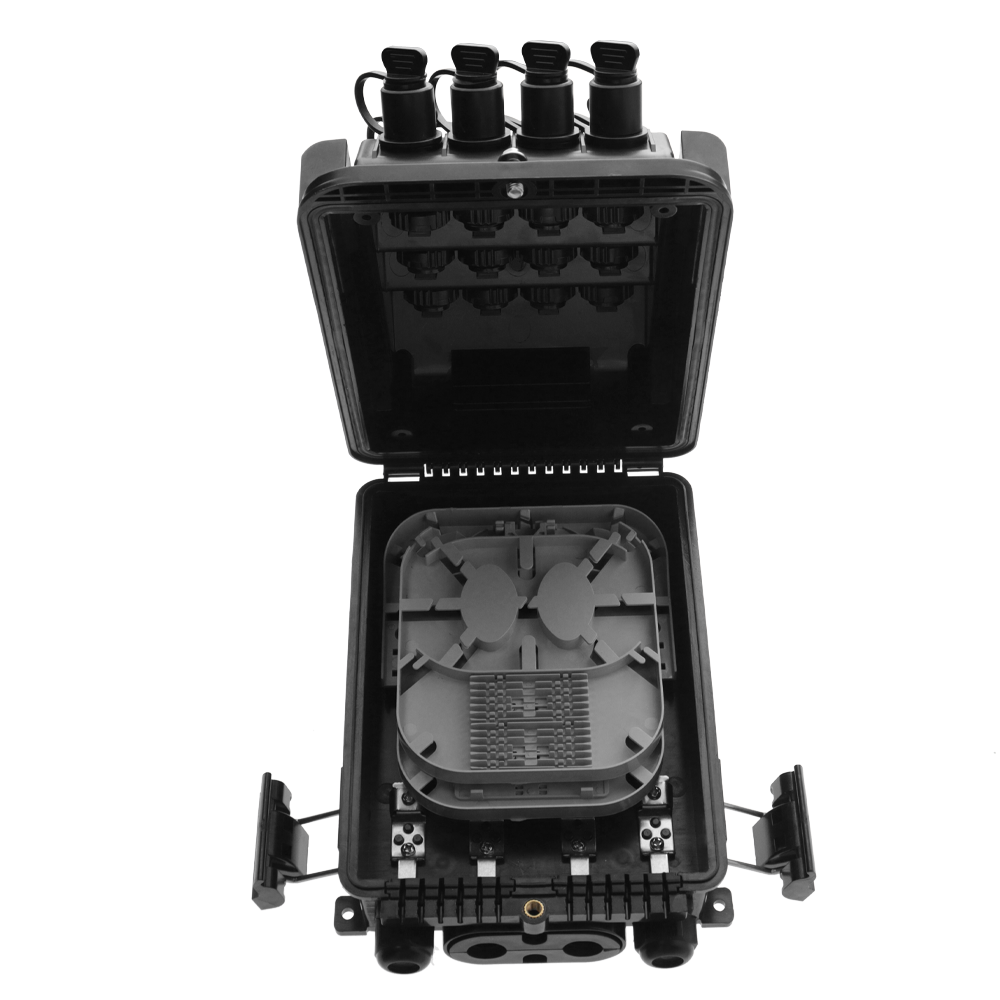

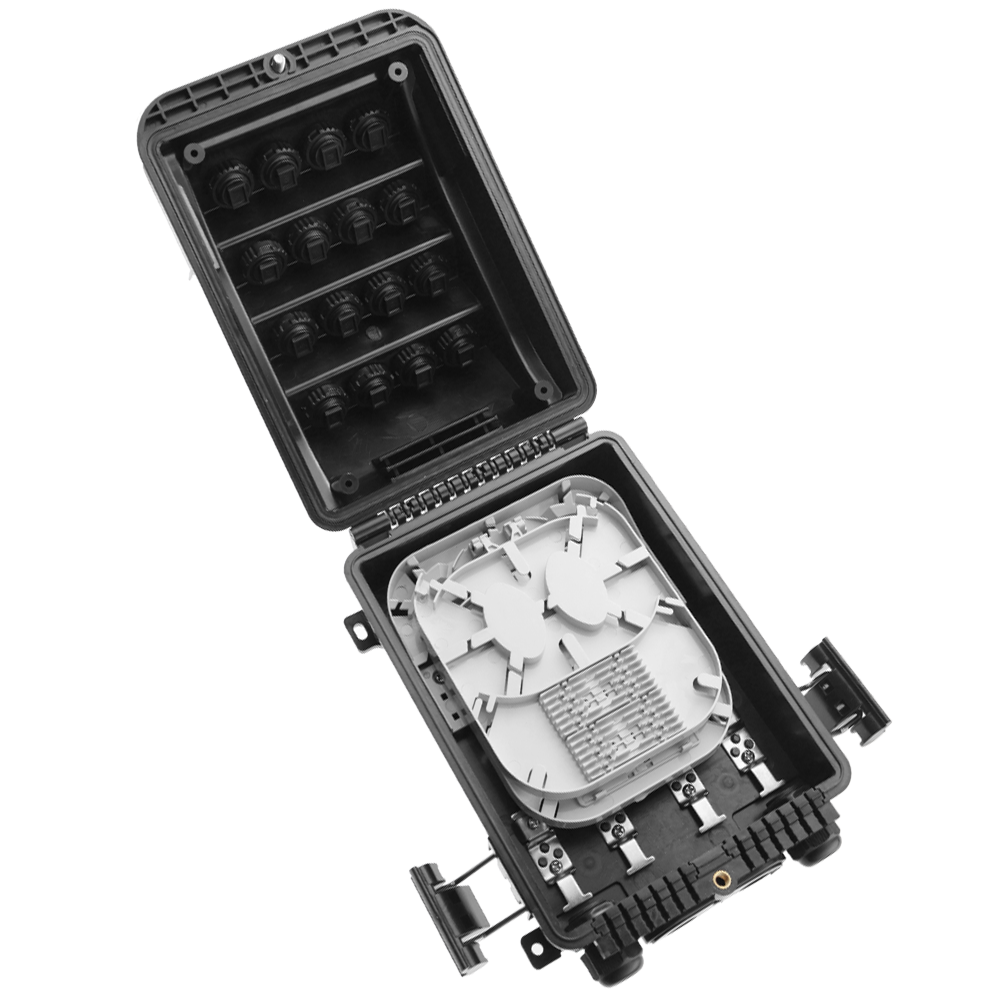

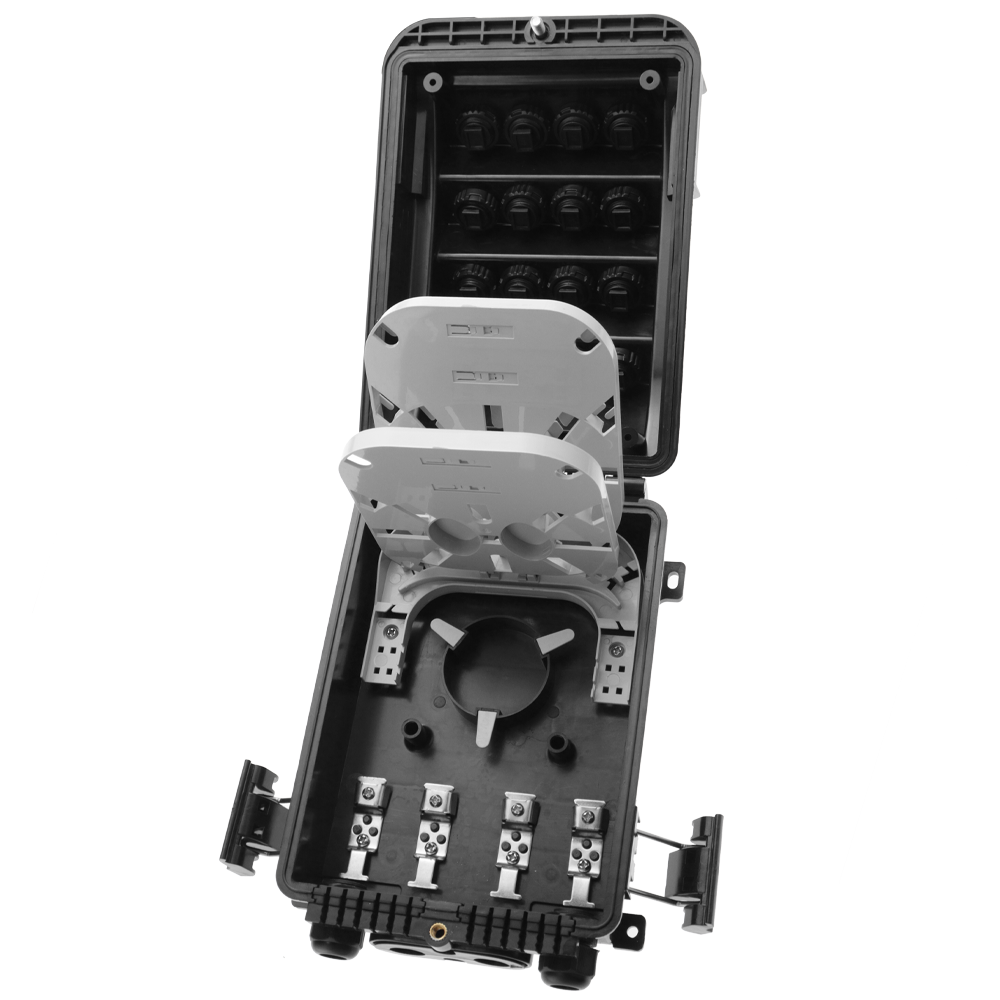

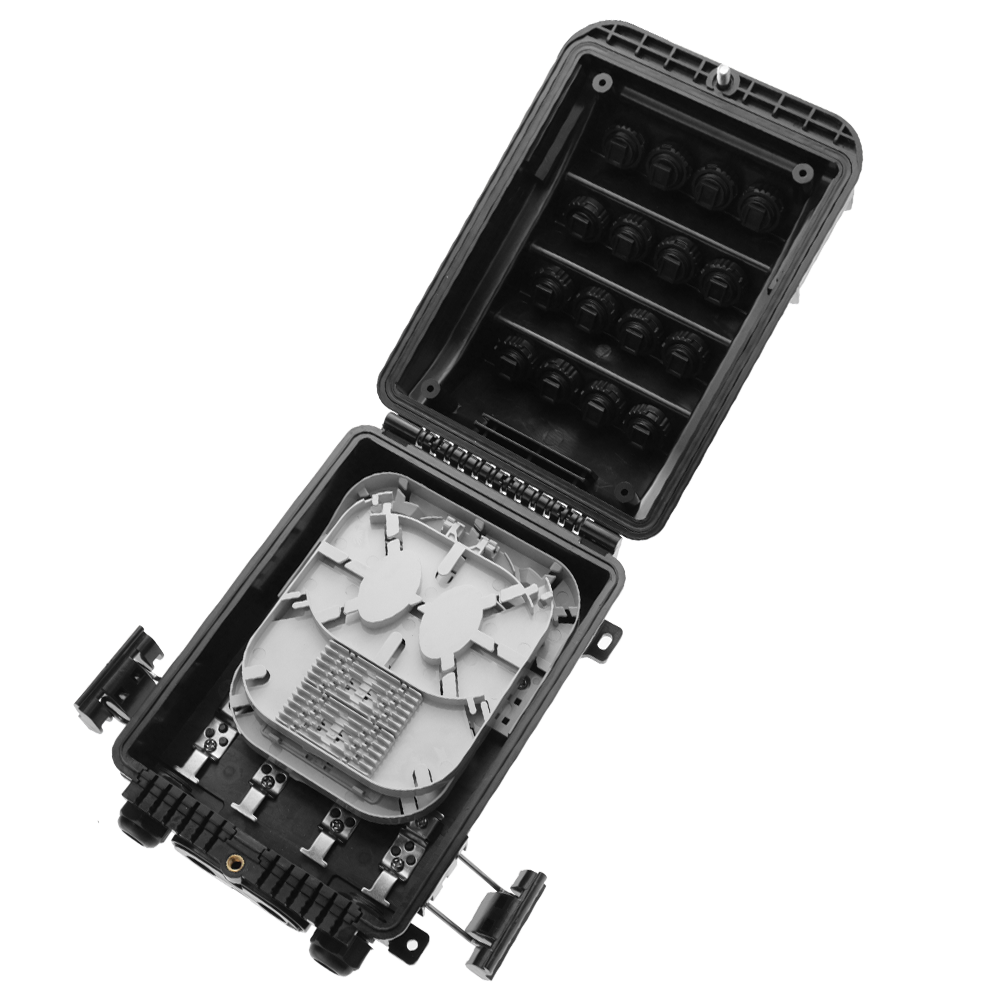

This type of fiber access termination box(FDB) is able to hold up to 9 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.

Configuration



Model

CFO-FDB-99A

Passageway

Max.16 core

Dimension

242*167*137(mm)

Material

ABS or PC+ABS

Box Colour

Black,Grey, White

Adapter Colour

Blue、Red、Green、Black

Support PLC Splitter1 pc 1 * 16 TypeAdapter Capacity(Max)16 pcs
Protection LevelIP68Weight0.78kg
Operating temperature-40℃ +65℃


Products Features

ABS Material 16 Ports Fiber Optic Distribution Box for Durable and Long-Lasting Performance

▶ The box is small and lightweight, but it has complete functions and is easy to operate.

▶ Plug and play, pre-connected household cable instead of fusion, no need to open the box.

▶ Fast insertion can fix and seal the optical cable outside the connector box for quick installation.

▶ Support a variety of installation methods, holding poles, hanging walls, and cables.

▶ Unique design front 45-degree angle fiber output.

▶ The drop leaf can be installed in 1 pcs of 1:16 PLC or 2 pcs of 1:8 PLC.

▶ Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

Pre-connected technology Plug and play.Moisture-proof, waterproof, dust-proof, anti-aging.Protection level up to IP68.
Read More
Various waterproof adapters are interchangeable

The box is not only used in waterproof situations, but also can be used for indoor cable deployment by replacing ordinary carefiber adapters and kits.
