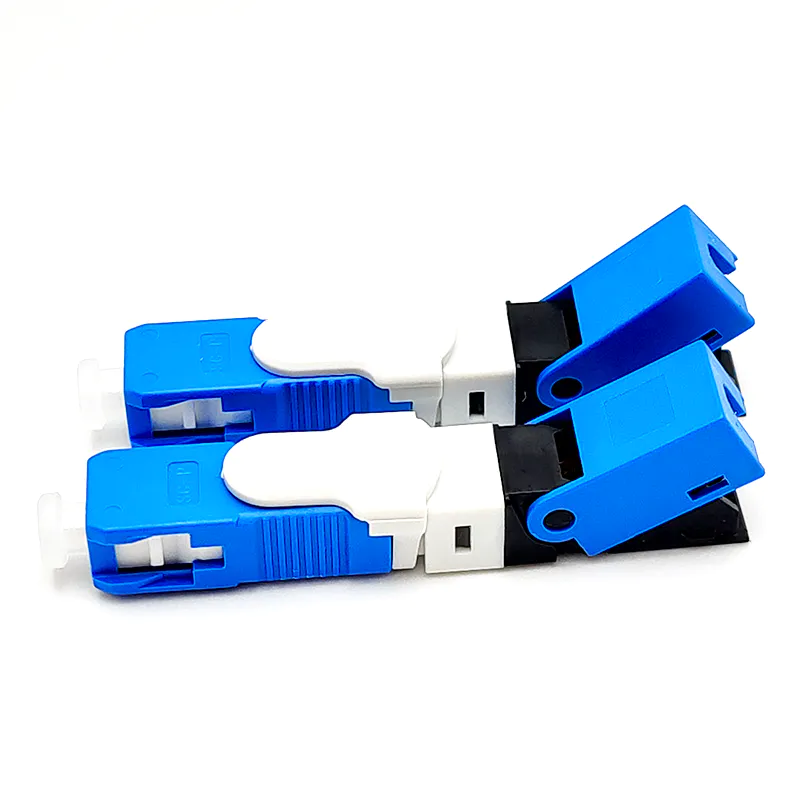

SCAPCandSCUPC Single-Mode Fiber Optic Quick Connector FTTHSMOptic Fast Connector

Model

CFO-5204

MOQ

>500

Place of Origin

China

Brand

CFO

Material

ABS

Delivery Time

5-15days

Start Port

shenzhen

Supply Ability

30000pcs/day

Price

Get Latest Price

Description

Our Fast Connector series connectors are now available in FC, SC and LC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Specification

Applicable for	Drop cable,indoor cable	Tension	20N( +-0.2dB)
Fiber mode	Single mode or Multi mode	Reusable Time	≥ 10 times
Operation time	About 50 seconds (not including fiber cut time)	Operating Temperature	-40~+85℃
Insertion Loss	≤.5dB	Fastening strength of naked fiber	≥5N
Insertion Loss Typical Value	0.3dB	Certificate	Anatel
Return Loss	≥50dB
Return Loss	≥50dB

Model

ANATEL Certificated Click Tipo Optic Fiber Fast Connector for Fiber to the Home(FTTh)

Features:
1. Low insertion loss
2. Ease of installation
3. Low cost & Reliability
4. Ease of use
5. Low environmental sensitivity
6. High return loss (low amounts of reflection at the interface)

Applications:
1. CATV & FTTH
2. Telecommunication networks
3. Local area networks (LAN)
4. Wide area networks (WAN)
5. Premise installations
6. Data processing networks
7. Video and military active device termination
8. Optical Distribution Frame
9. Optical Network Equipments

Fiber cutting length

Production tests

Connector end face detection

Packge Method

CFO-SC/UPC

0.00 ~~0.00~~
