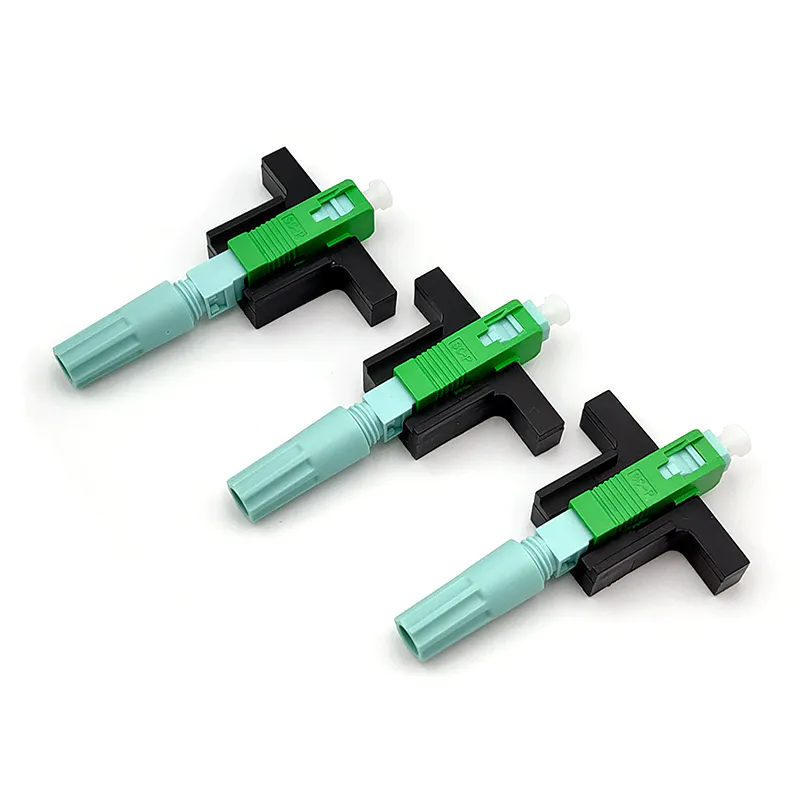

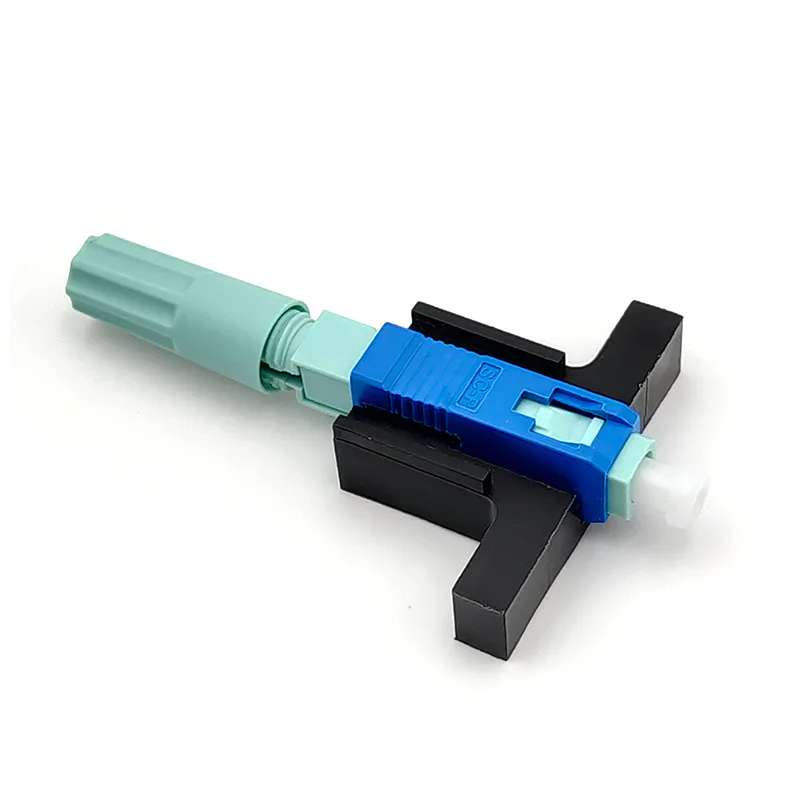

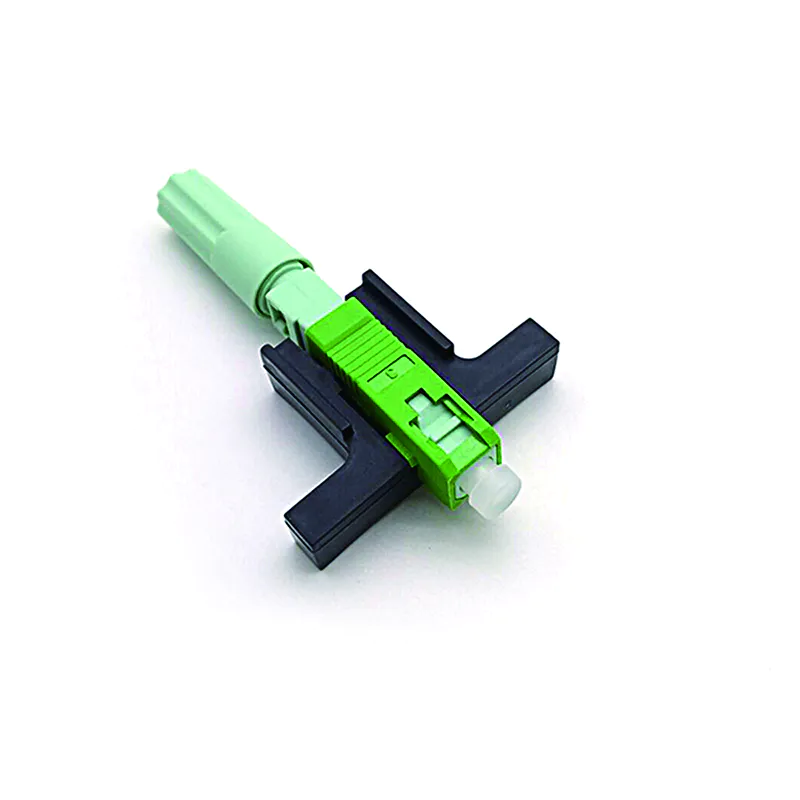

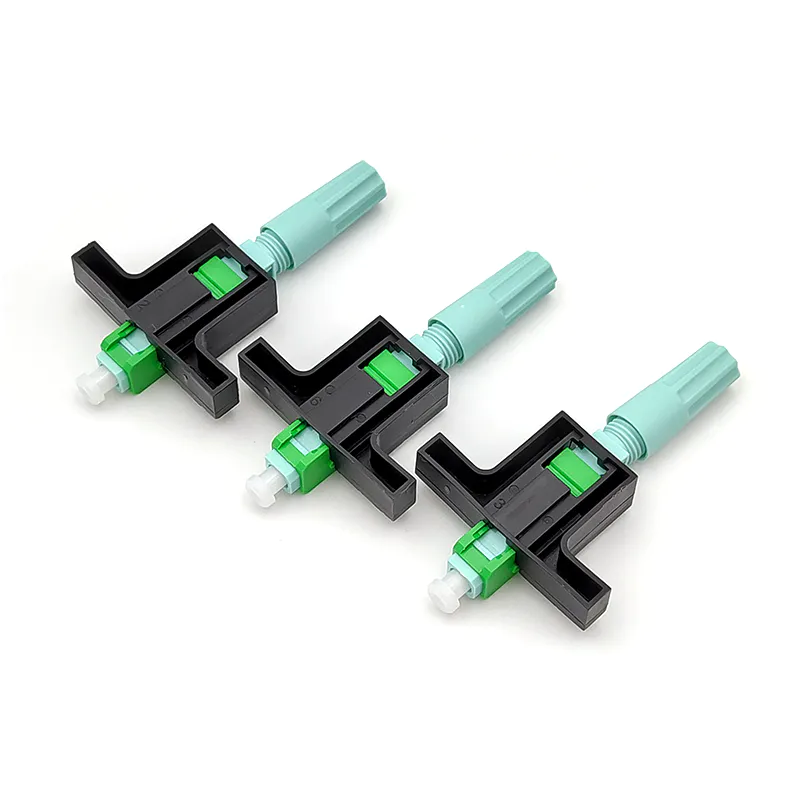

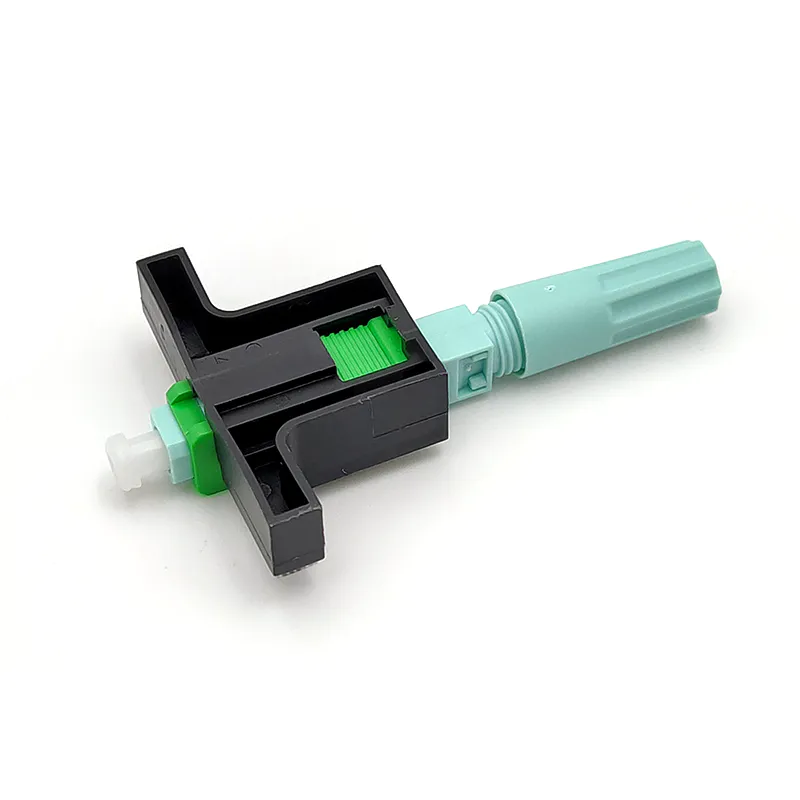

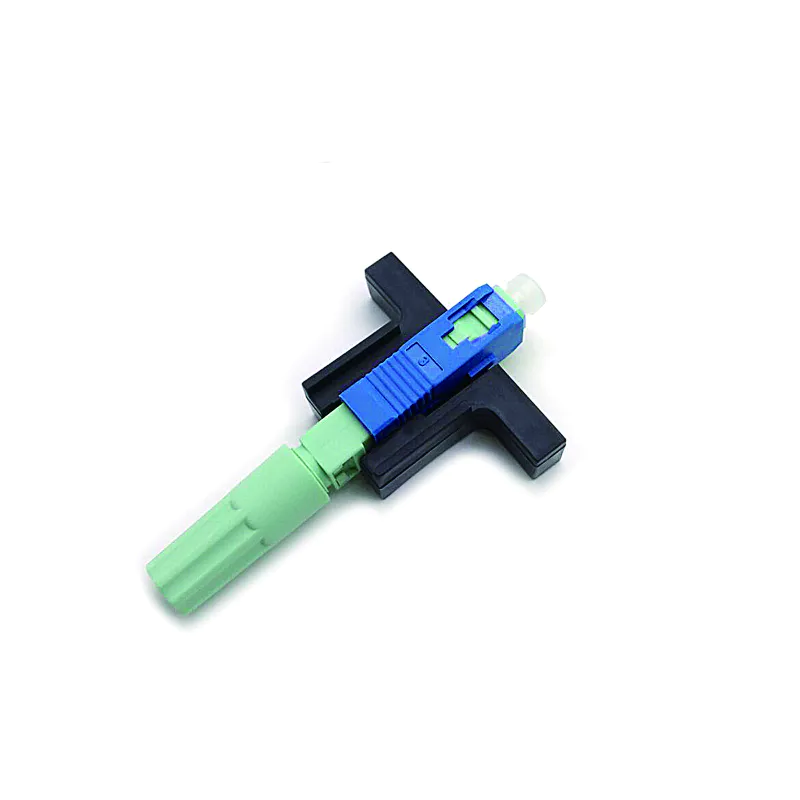

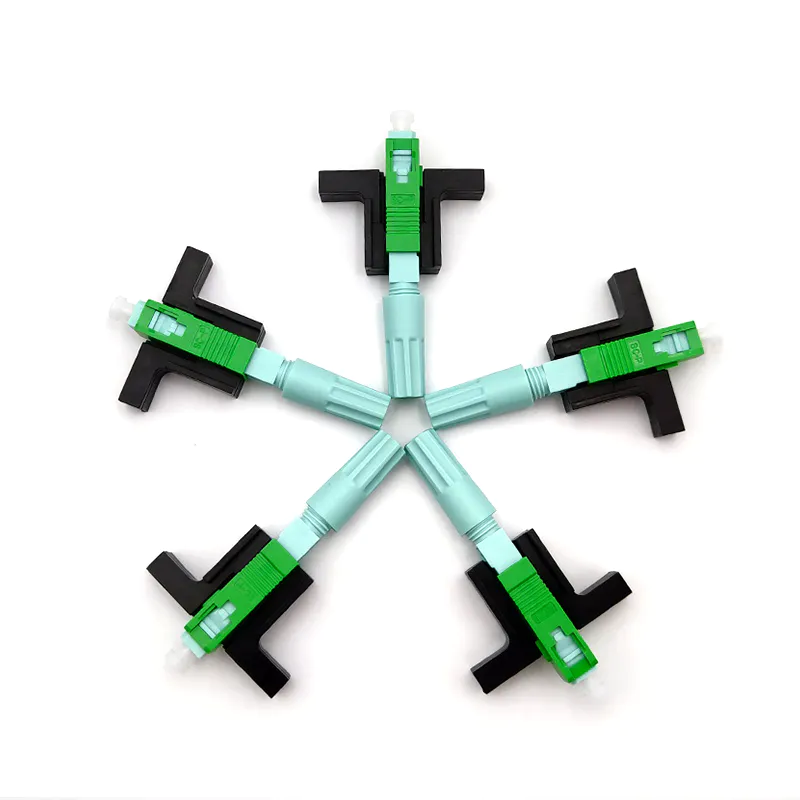

Ftth Sc-apc/upc Screwed Type Fiber Optical Fast Connector

Description

Quick Assembly Connector (also named “ No-Polish Connector ”, “Pre-polish Connector” or “ Fast Connector ”) is an easy-to-install device. No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.

it was designed for fast termination with a pre-polished connector. Using V groove technology, it requires no epoxy. With a transparent body, the connecting result can be seen by Fiber Checker immediately. This is an ideal solution, either for an outside plant or inside a building.

Specification

Type Mode	SC/APC(UPC) Connector	Cable Type	2.03.0mm 21.6mm
Return Loss	≥40dB	Insertion Loss	≤.0.3dB
Bare Fiber Strength	>5N	Clad Strength	>10N
Tension	>50N
Mechanical durability(500times)	IL≤0.2dB&RL≤5dB	Tensile strength(20N)	IL≤0.2dB&RL≤5dB
Operating Temperature	minus5~70°c	Storage Temperature	minus40~+85°c
Fiber Mode	Single Mode	Application	FTTH Drop Cable, CATV,CCTV,etc

Model

Optic Fiber Fast Connector

1.Simple structure
2.Save time
3.Low insertion loss

Features

1. Based on the pluggable non-preset tube technology
2. Precision ceramic components with co-axial self-centering, Excellent and durable optical property
3. Optical fiber fits axially inelastic way and avoids completely any false connect
4. Triple clamping through the naked fiber, tight buffer, and cable, etc., can be used as patch cord
5. High online tensile strength of Optical Fast Connector after terminating, always keep connecting under the force from cabling and drawing.
6. Integrated protection of the casing to withstand harsh user environment.
7. Directly connectable with ONU without any optical socket, which reduces FTTH cost.
8. High success rate and easiness in installation with average splicing time 100 sec
9. Lower requirement for the habit working and work environment call for the builder.
10. Visible Installation quality; independent from any far end light source and special device satisfying cabling construction in any sectioned way.

Fiber cutting length

Fast connector field operation

apply to 2*3mm or 2*1.6mm Bow-type drop fiber cable
