Lc Simplex Fiber Patch Cord

Description

The 50/125μm OM2 multimode fiber optic cable meets RoHS compliant and is optically tested for insertion loss to ensure high quality. It is very cost-effective for network cabling in data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any places fiber patch cables are needed.

Specification

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
		SM			MM
Fiber Diameter	um	9/125			65.5/125	50/125
Endface Type		PC	UPC	APC	PC	PC
Insertion Loss	db	≤ 0.2	≤ 0.15	≤ 0.2	≤ 0.1	≤ 0.1
Return Loss	db	≥ 45	≥ 50	≥ 60
Insert-pull Test	db	≤ 0.2	≤ 0.2	≤ 0.3	≤ 0.15	≤ 0.15
Interchangeability	db	≤ 0.1	≤ 0.1	≤ 0.15	≤ 0.1	≤ 0.1
Temperature Range	℃	-40~+80

The best insertion loss and return loss ensure stable signal transmission and network security.Good thermal stability, high hardness, strong environmental adaptability.

0.00 ~~0.00~~

The best insertion loss and return loss ensure stable signal transmission and network security.Good thermal stability, high hardness, strong environmental adaptability.

0.00 ~~0.00~~

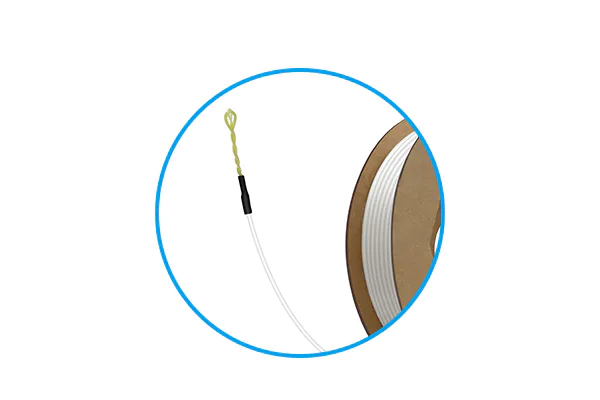

In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.

0.00 ~~0.00~~

Features

Technical parameters:

1. Good durability
2. Good exchangeability
3. High-temperature stability
4. Low insertion loss and back reflection loss
5. Superior Quality Standard PC/UPC/APC Polishing
6. Standard: Telcordia GR-326-CORE, TIA/EIA and IEC

Production Tests

Connector end face detection
