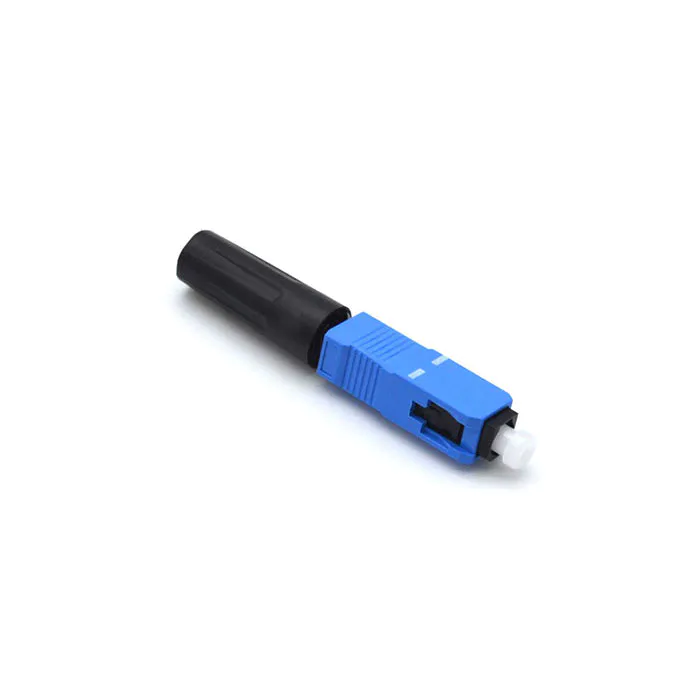

Ftth Drop Cable Fiber Optic Fast Connector Pre - Polished 55mm Made On-site...

Description

The Fast Connector also is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.
Assembly of the SC type quick connector requires only normal fiber preparation tools: a fiber stripping tool, wipes, and a fiber cleaver. No electrical power supply is needed.
Our Fast Connector series connectors are now available in FC, SC, and LC variants, catering for 250um to 900um diameter single-mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with PC or APC ferrules.

Specification

Item	Technical Parameters	Item	Technical Parameters
Applicable for	Drop cable, indoor cable	Tensile strength	≥50N
Fiber mode	Single-mode or Multimode	Reusable Time	≥ 10 times
Operation time	About 50 seconds (not including fiber cut time)	Operating Temperature	-40~+85℃
Insertion Loss	≤0.5dB	On-line tensile strength(20N)	△IL≤0.3dB
Insertion Loss Typical Value	0.3dB	Mechanical durability(500 times)	△IL≤0.3dB
Return Loss	≥50dB	Drop-off test (drop off height 4m, once per direction, totally 3 times)	△IL≤0.3dB
Fastening strength of naked fiber	≥5N		△IL≤0.3dB
Connector length	55mm	Cable Type	2X3mm Drop Cable

Model

Product Structure

Features

FTTH Drop Cable Fiber Optic Fast Connector Pre - Polished 55mm Made On-Site

1. Features:

1) Factory-installed fiber stub.
2) No epoxy and polishing required, No special tools needed when installed.
3) Allows up to three re-termination result.
4) Easily installed, Quick and easy fiber termination in the field.
5) Only 30 seconds needed to learn the process of installation and making.
6) Cost effective, Warranty: One year.
7) Fast connecting and repeat, No special tools needed when installed.
8) Can be made on-site without splicing connectors.
9) Eliminates cable excess length and pigtail splice storage.
10) Can be intalled and maked repeatedly thus avoiding loss

2. Applications:

1. Optical fiber communication room
2. Coss connecting cabinet
3. CATV
4. NET EPON
5. FTTB/FTTH
6. Networkcabinet
