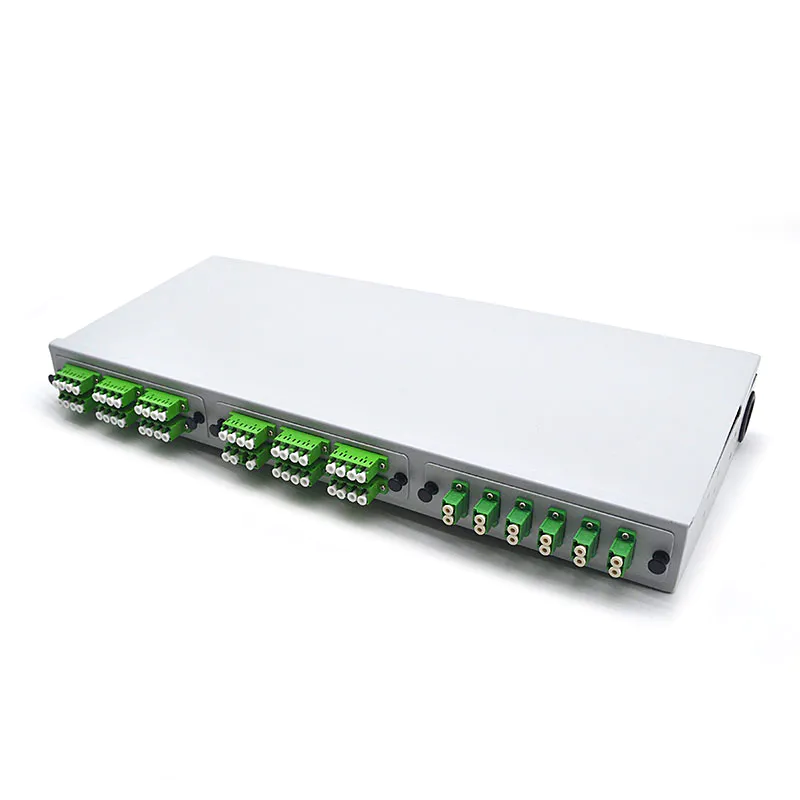

Wholesale Fiber Distribution Frame supplier, Odf Optical

Description

The case is made of cold-roll steel sheets, electrostatic spraying,provide 12 to 48 single and or double adapter,available for SC,LC,FC,ST.

Specification

Item	Characteristics
Insertion Loss	≤0.3dB
Return Loss	APC≥60dB,UPC≥50dB
Repeatability	≤0.1dB
Interchange	≤0.2dB
Operation Temperature	-30～75℃
Relative Humidity	≤85%

Product

Finger clasps are used to secure detachable panels.

0.00 ~~0.00~~

It is made of thickened cold-rolled steel plate, which is more resistant to pressure and impact.

0.00 ~~0.00~~

Ensure splicing tray attach to the bottom of inside box when facing the windy weather.

0.00 ~~0.00~~

Fit for“19”rack

Suitable for FC,SC,LC,ST,etc

Removable panel design can meet different requirements.

There are 4 entrances and exits, which can

be used for multiple wires at one time, or one in and one out.

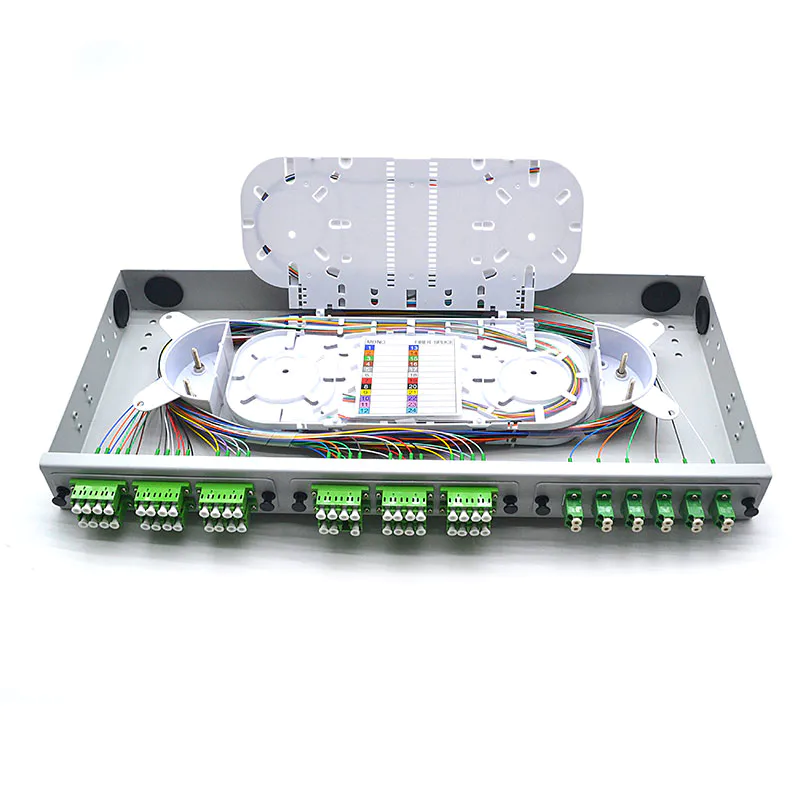

Built-in 3 layers of integrated fusion fiber plate can protect the fusion fiber point from looseness.

Connector end face detection Plug back loss test 3D Test

Features

-Removable panel design can meet different requirements.

-Slide rail construction、panel fasteners for fixing.

-Fit for“19”rack.

-Suitable for FC,SC,LC,ST,etc

-To assemble panels according to customer requirements

Applications

-Optical Access Network

-Data Processing Centers

-Cable television

-Local Area Network

-Coarse Wavelength Division Multiplexer

Packge Method

Put the product in a small carton, then put it in a big carton, and finally put it on the board, multi-layer packaging, so that the product gets multiple protection.

0.00 ~~0.00~~
