Oem & Odm Ftth Drop Cable Price List

Description

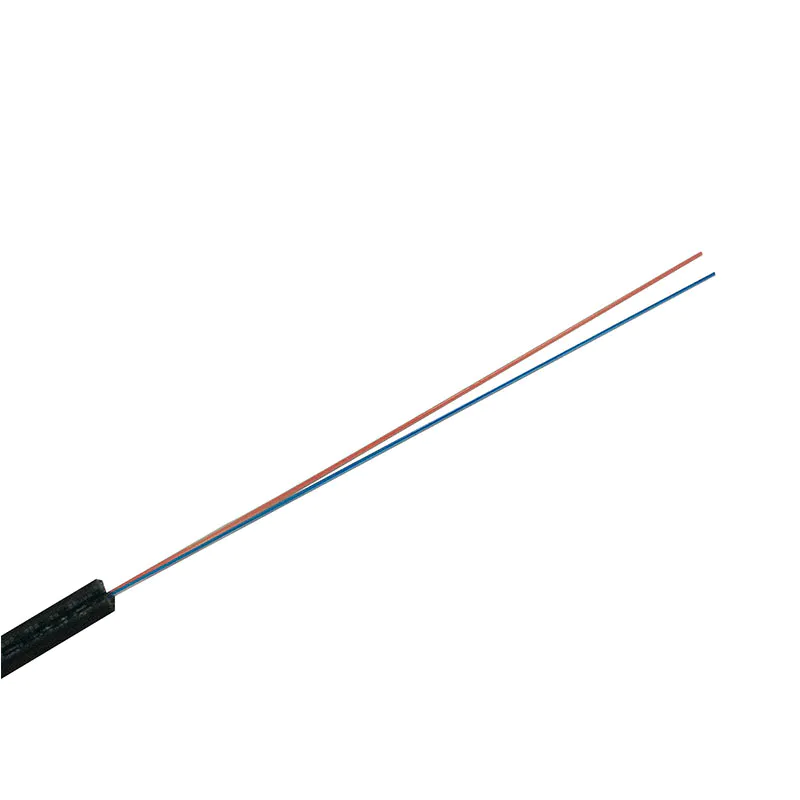

GJX(F)H is generally used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable. At last, sheathed with LSZH/PE/PVC material.

Specification

Fiber Count	Outer Diameter	Weight	Minimum bend radius		Tensile strength		Crush resistance
	Outer Diameter	Weight	Dynamic	Static	Short term	Long term	Short term	Long term
	mm	kg/km	mm	mm	N	N	N/100mm	N/100mm
1	3（±0.1）X2（±0.1）	10.7	30D	15D	200	100	2200	1000
2	3（±0.1）X2（±0.1）	11.7	30D	15D	200	100	2200	1000
4	3（±0.1）X2（±0.1）	12.7	30D	15D	200	100	2200	1000

Product Structure

Features

-Compact structure, low cost

-Light weight, small size

-LSZH material, environmentally friendly

-Flexible, easy to deploy

-handy for terminated with fast connectors

Application

-Fiber to the home(FTTH)

-Access network

Installation

-Aerial

Packge Method

Multiple packaging options are available.
