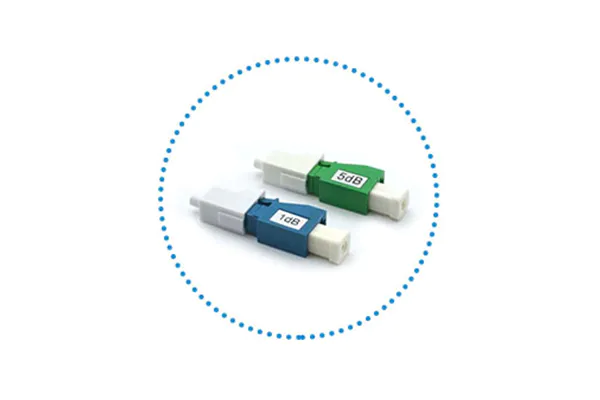

Fiber Optic Attenuator Single Mode, Single Mode Fiber Attenuator

Description

The Optical attenuator is used for attenuating the optical power,which is mainly used to measure the index of fiber optic systems, short-range communication signal attenuation system and system tests and other occasions.

Specification

Item	Specification
	Single-mode	Multi-mode
Test Wavelength	1310&1550nm	1300&850nm
Return loss	UPC≥50dB,APC≥60dB	≥40dB
Operating Wavelength	1260～1650nm
Attenuation Range	0～30dB
Tolerance of Attenuation	0～5dB:±0.5dB
	5～30dB:±10%
Repeatability	≤0.1dB
Interchange	≤0.2dB
Mechanical Durability	≤0.2dB（1000 Times）
Optical Power	≤200mw

Product

Flange type attenuator

0.00 ~~0.00~~

Male female type attenuator

0.00 ~~0.00~~

Features

-Product Features

-Good Reproducibility and Compatibility

-Accurate Attenuation value

-High Reliability

-According with IEC standard and RoHS

-Telcordia-GR-910-CORE According with Telcordia-GR-910-CORE

Purpose

-Testing of equipment

-Between equipments connecting

-Between patch cords connecting

-FTTX

-LANs、WANs

Packge Method

Place the product in a blister box and then in a carton.

0.00 ~~0.00~~
