Specification
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | Typlical ≤ 0.25dB ≤0.3dB | ≤ 0.25dB | |
| Return Loss | ≥ 50dB | ≥ 65dB | ≥ 35dB |
| Interchangeability |
≤ 0.2dB |
||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB (1000 times mating) | ||
| Tensile Strength | > 10kg | ||
| Temperature | ≤ 0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤ 0.2dB (+25+65 93 R.H.100 hours) | ||
Product Structure
-
- The best insertion loss and return loss ensure stable signal transmission and network security.Good thermal stability, high hardness, strong environmental adaptability.
-

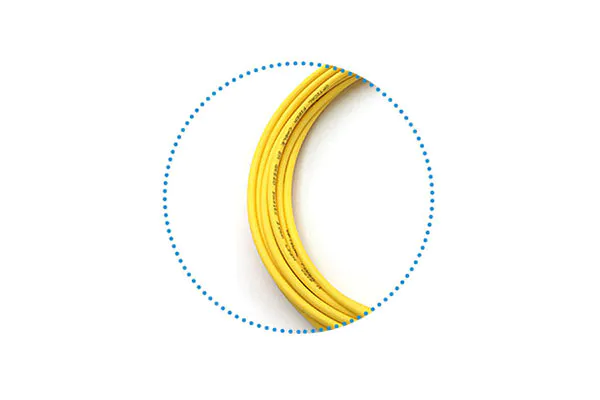

- Ultra-high bending performance can meet the requirements of corner bending, improve the utilization of cable, and ensure the normal and stable operation of communication.
-
- In the case of extreme fiber bending, the optical signal leaked to the outside of the core due to bending is retained to reduce fiber loss and print clearly.
Technical parameters
- connector types: FC, SC, LC, STand etc
- The min bending radius: 3.8 cm
- Operating temperature range: - 40 ~ 85 °C
- connector materials: ceramic plug core
- Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm
- Repeat plug: < 0.25 dB, each 500 times plug
- Min reflection loss: 20 db
- Max return loss:-50dB
Production tests
-
- Connector end face detection
-
- Plug back loss test
-
- 3D Test
Packge Method
Tie the line into the PE bag, the connector head position down, product labels affixed to the middle of the PE bag. The long side of the label is parallel to the bottom edge of the PE bag, finally put it into the carton.
