Specification
| Category | Specification | ||
| Working Wavelength | nm | 1260～1650 | |
| Test Wavelength | nm | 1310&1490&1550 | |
| Insertion Loss | exclude connector | dB | ≤7.2 |
| With connector | dB | ≤7.5 | |
| Channel Uniformity | dB | ≤0.6 | |
| Polarization Dependent Loss-PDL | dB | ≤0.2 | |
| Directivity | dB | ≥55 | |
| Return Loss | dB | ≥55 | |
| Operating Temperature | ℃ | -40～+85 | |
-
- Adopt high quality core, anti-bending core, low insertion loss and high return loss.
-
- New ABS plastic synthetic resin shell, impact resistance, long life.
-
- The loss is not sensitive to the transmission wavelength and can meet the transmission requirement of the wavelength. print clearly.

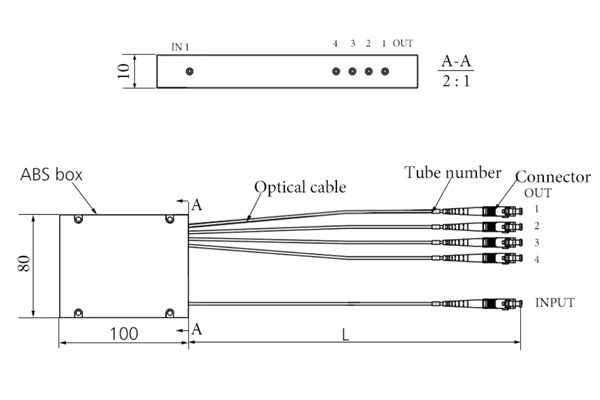

Product Sketch Map
Tolerance length of the 2.0mm or 3.0mm tube is ±50mm；
The matching tolerance of ABS-Box is ±0.5mm；
“L” represents the order length.
Packge Method
Put the product into the PE bag and stick the label in the middle of the ABS box.The long side of the label is parallel to the bottom edge of the product, and then put into a small carton, and finally put into a large carton.
