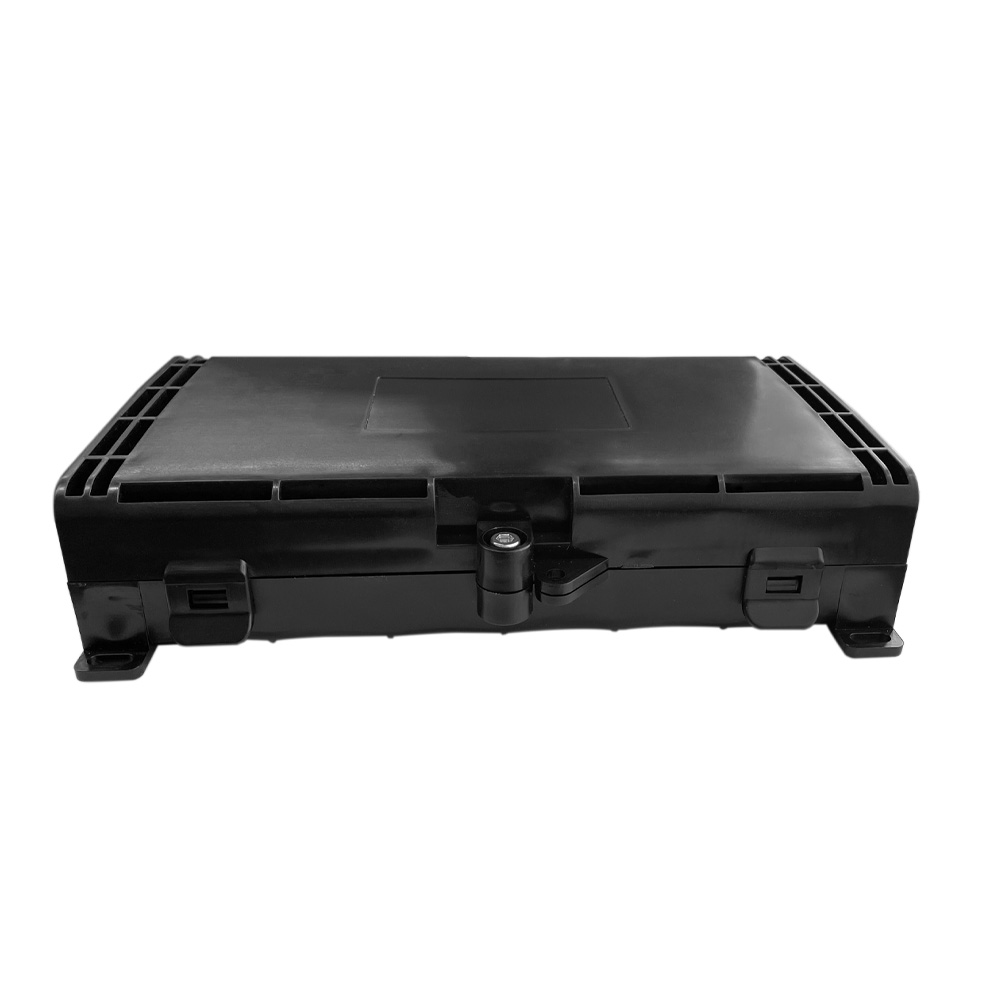

8 Ports Fiber Optic Termination Box Tpye for FTTx Dorp Cable
The Fiber distribution box can hold up to 8 subscribers. This box is used as a termination point for the feeder cable to connect with the drop cable in the FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
8 Ports Fiber Optic Termination Box Tpye for FTTx Dorp Cable Features:
- Material: PP,wet-proof、water-proof、dust-proof、anti-aging.
- Clamping for feeder and drop cables, fiber splicing, fixation, storage, distribution...etc.
- Cable, pigtails, and patch cords run through their paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- The distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Installation method: pole-mounted, aerial-mounted, wall-mounted.
- Lock provided for extra security.
- Protection level up to IP65.
8 Ports Fiber Optic Termination Box Tpye for FTTx Dorp Cable Applications :
- Optical LAN & WAN & CATV
- FTTH project & FTTX Deployments
- Broadband High-bit rate data transmission
- Active device terminations
- Testing instruments
- Optical fiber communication networks
- PON Networks
- Optical Signal Distribution
8 Ports Fiber Optic Termination Box Tpye for FTTx Dorp Cable Configuration:
| Item | Specifications | Remark |
| External dimension | 253*147.8*54mm | |
| Distribution Cable ports | 4 Round | 2 port each end |
| Distribution Cable Diameter | Max.Ф10mm | |
| Door Cable ports | 8 F | |
| Door Cable Diameter | Round cable：3.0mm
Flat cable： 2*3mm |
Replace the cable plug |
| Splice Tray Capacity | Max.16cores | |
| Support adapter | Max.9 pcs | SC Adapter |
| Support PLC Splitter | 1 pc 1*8 Type | |
| Material | PP | |
| Box Color | Black | Customizable |
| IP protection level | IP65 | |
| Weight | 0.6kg | |
| Flammability | HB(Conventional) | can be customized
according to requirements |
| Neutral salt spray test (NSS) | 168 h |
