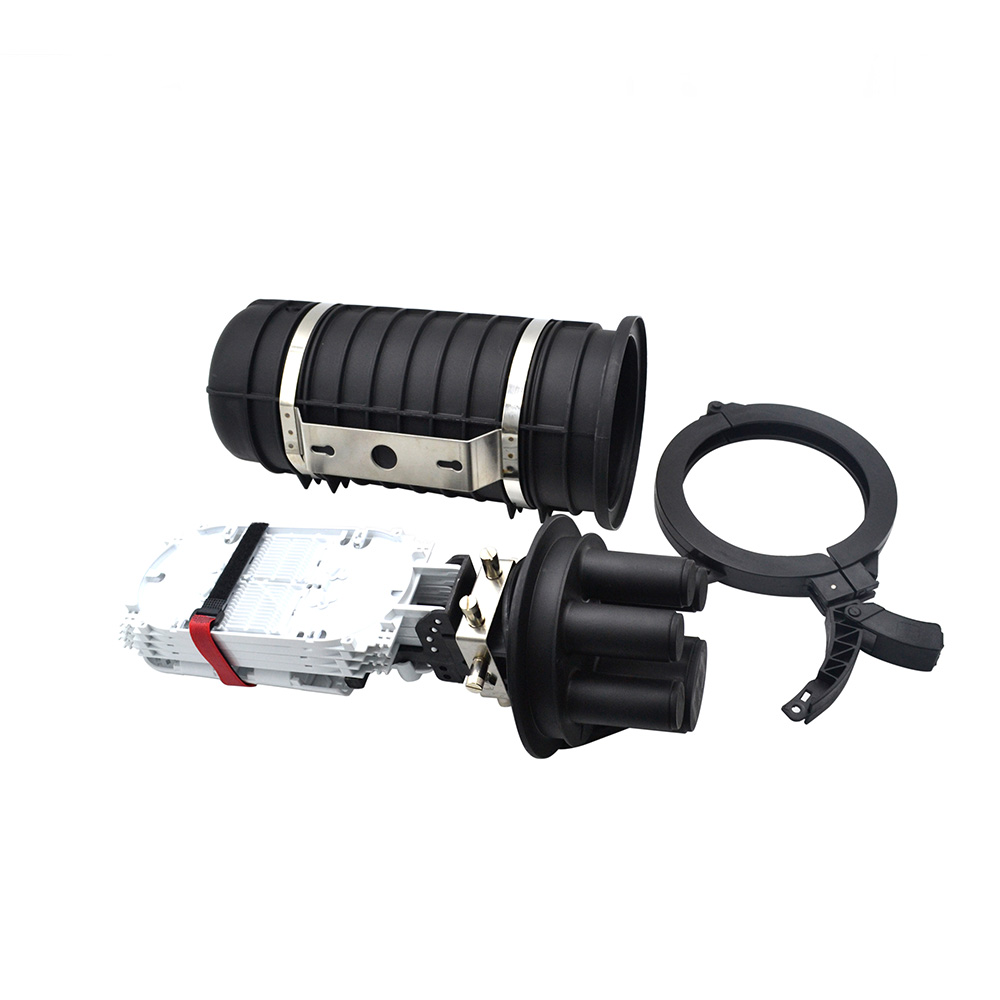

144cores FTTH Network Dome Type Wall Mounting Fiber Optic Splice Closure

The fiber optic splice closure is specially designed to protect the fiber optic cable splices. Excess optical fiber can be stored in the storage basket behind the splice tray. The optical fiber is fused on the side of the tray. One tray can splice 24 optical fibers; it can hold 6 trays and splice a total of 144 optical fibers. It is made of modified PP material, which is resistant to UV, aging, and corrosion. Good quality and long service life. It is reusable.

144cores FTTH Network Dome Type Wall Mounting Fiber Optic Splice Closure Features:

  1. Excess fiber can be stored in the storage basket. Easy fiber management.
  2. Fully mechanically sealed. Easy installation and re-entry. No other sealing tapes are required.
  3. Base and dome sealed with clamp and O-ring system. Cable entry sealed with rubber.
  4. Splice trays are hinged to allow access to any splice tray without interfering with other trays.
  5. Internal components and fixed parts are made of stainless steel.
  6. A grounding device is provided to prevent damage by lightning strikes.
  7. Compatible with most fiber cable types (single fiber or ribbon) and cable structures (loose tube, center core, slotted core, modular). The product can be used in any environment (aerial, buried, hand hole, manhole) and multiple applications (tap, express, branch, and repair).

144cores FTTH Network Dome Type Wall Mounting Fiber Optic Splice Closure Applications:

  1. Suitable for bunchy & ribbon fiber
  2. Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
  3. It's especially applicable to FTTH optical fiber distribution

144cores FTTH Network Dome Type Wall Mounting Fiber Optic Splice Closure Indicators:

  1. Disc fiber curvature radius: ≥40mm
  2. Additional loss of optical fiber disk: ≤0.01dB
  3. Temperature range: - 40℃ ~ + 65℃
  4. Resistance to side pressure: ≥2000N / 10cm
  5. Impact resistance: ≥20N.m
  6. Voltage Strength: 15KV/1min, no arcover or breakdown
  7. Protection level: IP68

144cores FTTH Network Dome Type Wall Mounting Fiber Optic Splice Closure Configuration:

Item Spec.
Outside dimension ( Diameter*Height ) 410mm×φ250mm
Sealing Type Heat Shrinkable Seal
Cable ports 1 Oval port +4 Round
Cable Diameter 4-round ports: Max.φ11.5mm

1-Oval ports: Max.φ20mm(for mid-span)
Splice Tray Capacity Max.6pcs
The capacity of the splice tray 24F
Max. capacity of closure 144F
