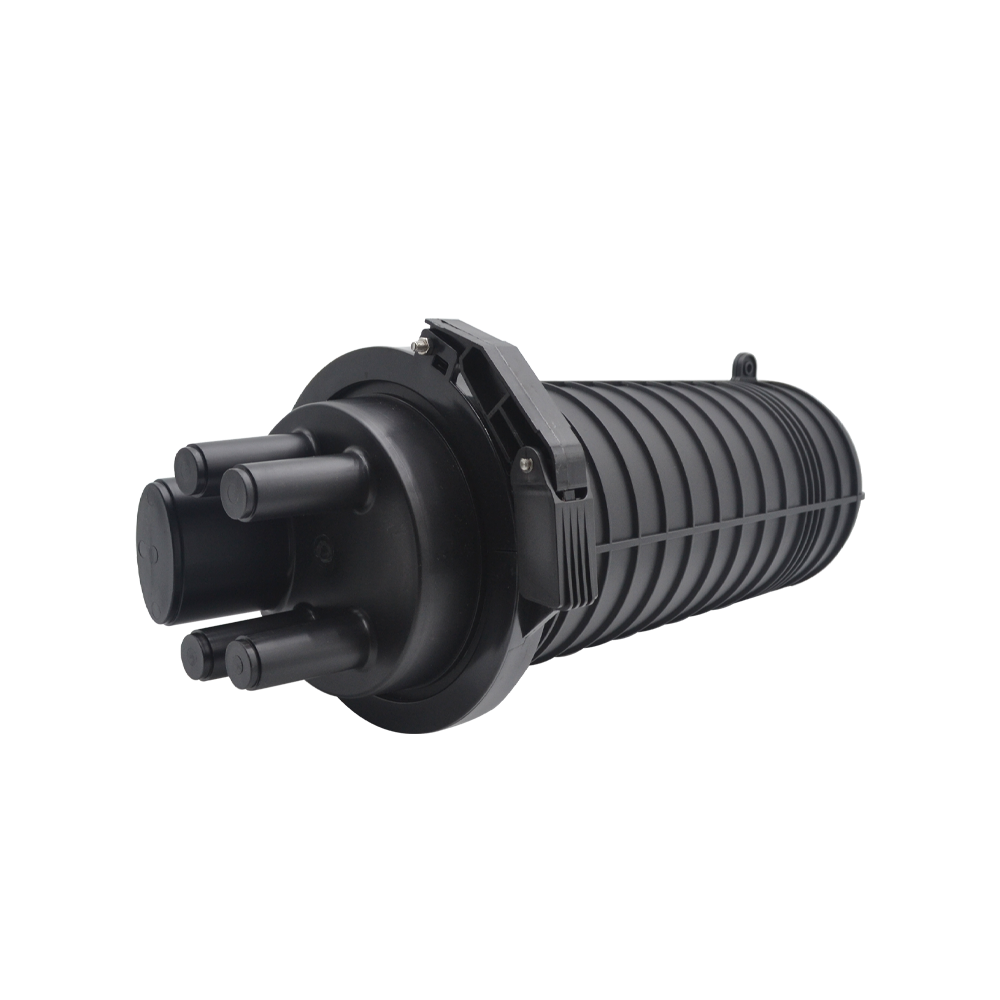

144FO Heat Shrinkable Closure Fiber Optic Joint Box Polycarbonate Housing
Big splice capacity dome splice closure, 576 splice, 9 circular ports, and 1 oval port for loop-through cable. IP68, suitable for aerial, underground, and duct applications.
144FO Heat Shrinkable Closure Fiber Optic Joint Box Polycarbonate Housing Features:
- The Housing is made of Polycarbonate (PC), good mechanical performance,
- Dome-type heat shrinkable seal
- 1 oval port for loop-through cable and 9 circular branch ports.
- Reasonable fiber routing and layout.
- Big splice tray and fiber bend radius of more than 37.5mm..
- Aerial, wall-mounted, or pole-mounted kit for customer option.
144FO Heat Shrinkable Closure Fiber Optic Joint Box Polycarbonate Housing Applications :
- Suitable for bunchy & ribbon fiber
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- It's especially applicable to FTTH optical fiber distribution
144FO Heat Shrinkable Closure Fiber Optic Joint Box Polycarbonate Housing Configuration:
| Item | Spec. | |
| Outside dimension ( Diameter*Height ) | 470 mm × Φ210 | |
| Material | PP+GF | |
| Sealing Type | Heat Shrinkable Seal | |
| Cable ports | Oval port | 1*（Φ8 - Φ25 mm） |
| Branch port | 8*（Φ8 - Φ25 mm） | |
| Splice Tray Capacity | Max.6pcs | |
| Closure Max Capacity | Bunchy: 24-144 (cores)
Ribbon: up to432(cores) |
|
| Weight (excluding outside box) | 2350 g— 3500g | |
| Protection Grade | IP68 | |
| Weight | (4.0±0.2)KG | |
| Temperature range | - 20℃ ~ + 60℃ | |
