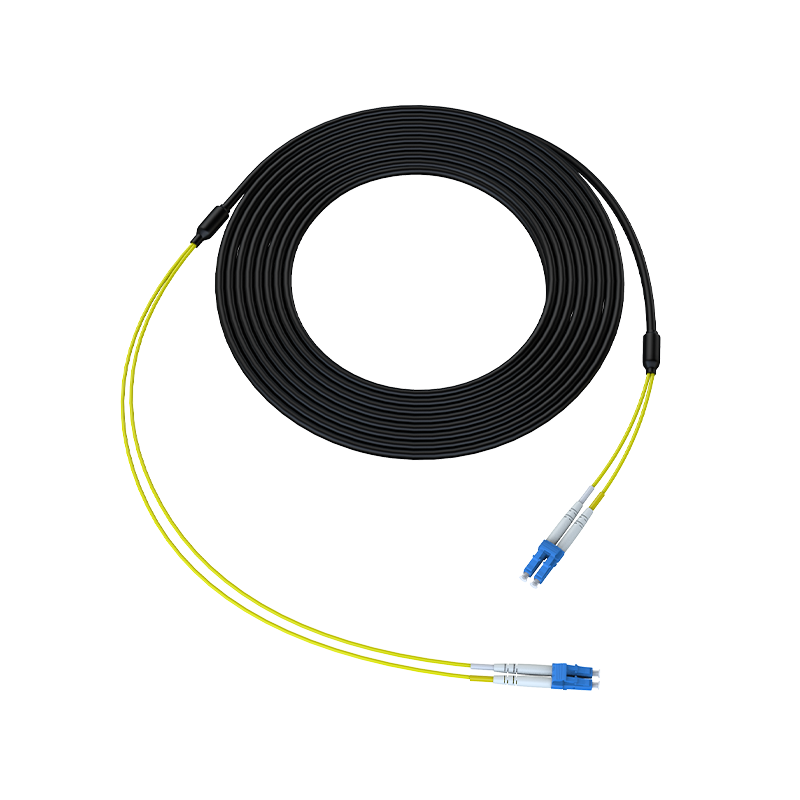

5.0mm Black Fiber Optic Patch Cord G652D With Duplex LC APC Connector
Bundle pigtails, or pigtail bundles and multi-core connectors, have only one end with a connector, and the other is a broken optical fiber end. They are connected to other optical fiber cores by fusion and often appear in optical fiber terminal boxes. They are used to connect optical cables and terminal equipment.
5.0mm Black Fiber Optic Patch Cord G652D With Duplex LC APC Connector Features:
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
- Provides moisture and dust protection for use in harsh industrial environments.
- 100% optically tested to ensure quality performance assemblies.
- "Available in single mode and multimode styles to work with any common fiber type.
- A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
- Special specifications are available upon the customer’s request.
5.0mm Black Fiber Optic Patch Cord G652D With Duplex LC APC Connector Applications :
- Data transmission Networks
- Image transmission Networks
- FTTA
- Optical test instrument
- Photoelectric automatic control system
5.0mm Black Fiber Optic Patch Cord G652D With Duplex LC APC Connector Specifications:
1. The Connector
| Project | Spec. | Standard | |
| Operating wavelength | 850、1300nm | GR-326-CORE；
IEC61754-20. |
|
| Insertion loss | ≤0.3dB（Typical value：0.2dB) | ||
| Return loss | ≥40dB | ||
| Repeatability | ≤0.2dB | ||
| Interchangeability | ≤0.2dB | ||
| Mechanical Endurance | ≥500 Times | ||
| Branch | Length | 0.05M and 0.35M | |
| Cable Diameter | 2.0mm LSZH Cable | ||
| Cable Color | Yellow | ||
| Working temperature | -40～+75℃ | ||
2. Optical Cable
| Items | Descriptions | |
| Optical Fiber | Fiber count | 2F OM2 |
| Color | Natural | |
| Tight buffer fiber | Color | Blue +Orange |
| Diameter | 0.85±0.05mm | |
| Material | PVC | |
| Strength Member | Material | Non-metallic reinforced yarn |
| Sheath | Material | HFFR Anti-UV |
| Color | Black | |
| Diameter | 5.0±0.2mm | |
| weight ±10%KG/KM | 24 | |
