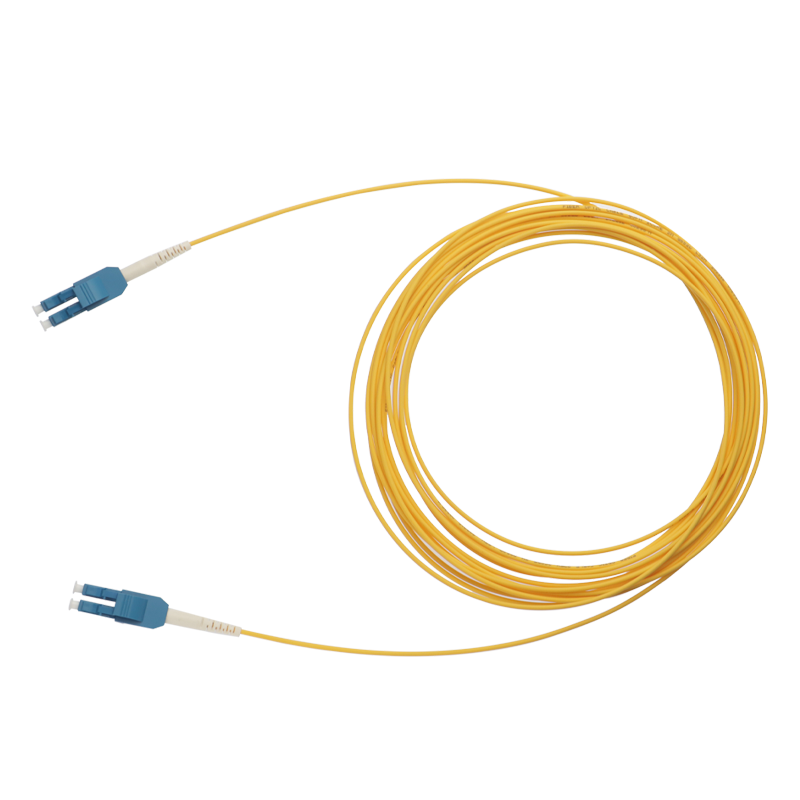

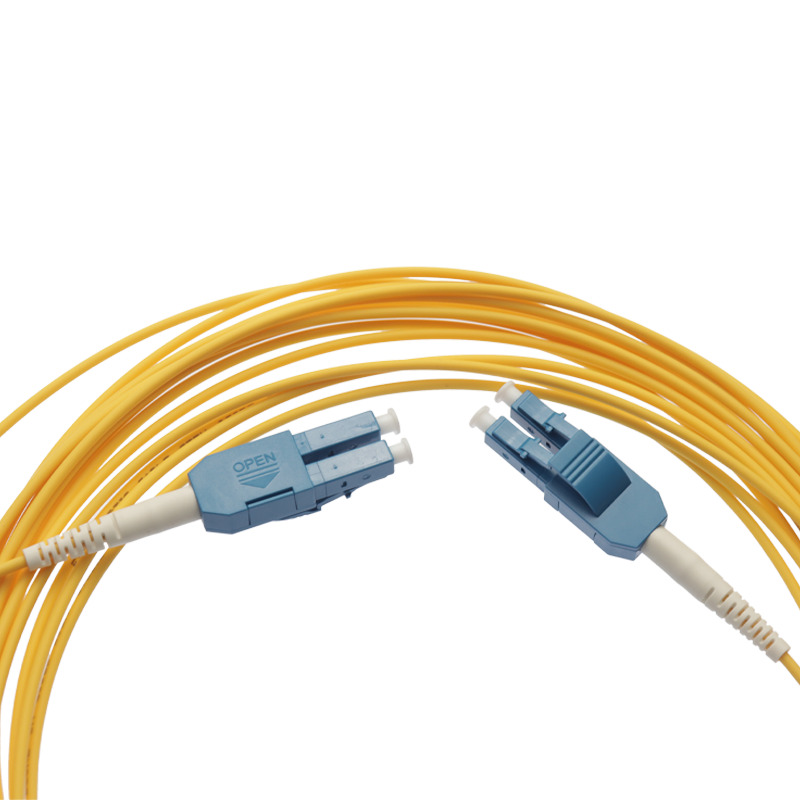

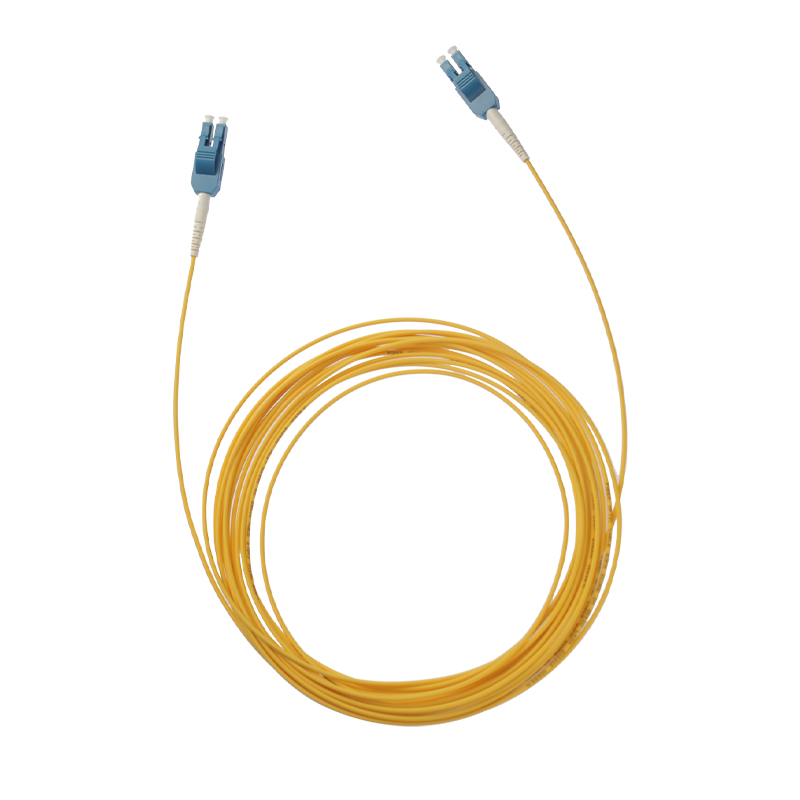

Customized Length Fiber Optic Patch Cord Uniboot LC APC Connector Yellow Fiber Optical Cable
The Carefiber transparent fiber system provides installers with a fast and easy technique for deploying fiber seamlessly around baseboard, windows, and trim work-holding firmly in place and nearly invisible to the casual observer.
Single Mode Fiber Optic Cable Patch Cord FTTA IP68 APC/UPC G652D Waterproof Features:
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
- Special specifications are available upon the customer’s request.
- The tie rod type is suitable for small-space installation
Single Mode Fiber Optic Cable Patch Cord FTTA IP68 APC/UPC G652D Waterproof Applications :
- Data transmission Networks
- Image transmission Networks
- CATV
- Optical test instrument
- Photoelectric automatic control system
Single Mode Fiber Optic Cable Patch Cord FTTA IP68 APC/UPC G652D Waterproof Specifications:
1. The Connector
| Project | Spec. | Standard |
| Operating wavelength | 1260～1650nm | GR-326-CORE；
IEC 61300 |
| Insertion loss | ≤0.3dB（Typical value：0.2dB) | |
| Return loss | ≥60dB（APC）≥50dB(UPC) | |
| Repeatability | ≤0.2dB | |
| Interchangeability | ≤0.2dB | |
| Mechanical Endurance | ≥500 Times | |
| Working temperature | -40～+85℃ |
2. Optical Cable
| Items | Descriptions | |
| Optical Fiber | Fiber count | 2F G652D |
| Color | Yellow+White | |
| Strength Member | Aramid yarn | |
| Outer sheath | Material | LSZH Anti-UV |
| Color | Yellow | |
| Diameter | 2.0±0.2mm | |
