LC Armored branch Fiber Optical Patch Cord For FTTx
The Carefiber transparent fiber system provides installers with a fast and easy technique for deploying fiber seamlessly around baseboard, windows, and trim work-holding firmly in place and nearly invisible to the casual observer.
LC Armored branch Fiber Optical Patch Cord For FTTx Features:
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
- Special specifications are available upon the customer’s request.
LC Armored branch Fiber Optical Patch Cord For FTTx Applications :
- Data transmission Networks
- Image transmission Networks
- CATV
- Optical test instrument
- Photoelectric automatic control system
LC Armored branch Fiber Optical Patch Cord For FTTx Specifications:
1. The Connector
| Project | Spec. | Standard | |
| Operating wavelength | 1260-1650nm | GR-326-CORE；
IEC61754-20. |
|
| Insertion loss | ≤0.3dB（Typical value：0.2dB) | ||
| Return loss | ≥60dB（APC） | ||
| Repeatability | ≤0.2dB | ||
| Interchangeability | ≤0.2dB | ||
| Mechanical Endurance | ≥500 Times | ||
| Branch （Armored Cable） | Length | 0.3M（As per the order） | |
| Cable Diameter | 1.8mm | ||
| Material | SUS200CU/SU204 | ||
| Working temperature | -40～+75℃ | ||
2. Optical Cable
| Items | Descriptions | |
| Optical Fiber | Fiber count | 2F G657A2 |
| Color | Natural | |
| Tight buffer fiber | Color | Blue +Yeiiow |
| Diameter | 0.55±0.05mm | |
| Material | PVC | |
| Flexible spiral armoring tube | Thickness | 0.2±0.05mm |
| Clearance | 0.2±0.05mm | |
| Material | SUS200CU/SU204 | |
| Strength Member | Aramid yarn | |
| Sheath | Color | Black |
| Material | PVC Anti-UV | |
| Diameter | 3.0±0.2mm | |
| weight ±10%KG/KM | 24 | |
Carefiber Service:

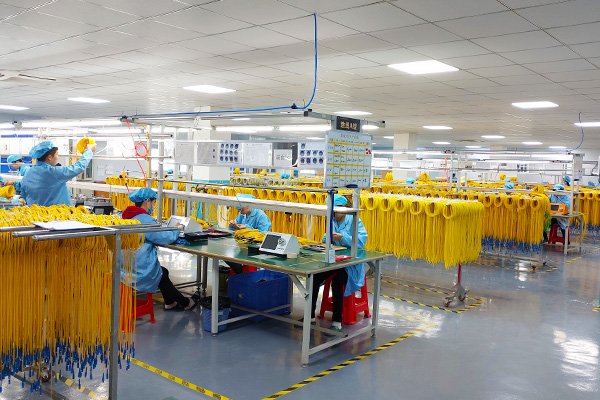

Carefiber Optical Technology Co., Ltd. is in Longhua New District, Shenzhen City, Guangdong Province. Founded in 2010, over the past 15 years， the Carefiber group has HK Carefiber, and Guangxi Carefiber two sub-companies, they both are high-tech enterprises dedicated to research, development, production, and sales of FTTH products in the following categories: Indoor/outdoor drop cable, Fiber optical fast connector, Patch cord, Pigtail, PLC splitter, FTB coupler, Adaptor, Fiber distribution box, Fiber distribution frame, Fiber Joint closure, indoor and outdoor base station wiring products, MPO, data center products, 5G supporting solutions, etc, Carefiber provides customers with standard products and customized products of the integrated solutions.
Our Vision: Be a first-class optical communication enterprise.
Our Mission: Better products, technology, and services for customers.
Our Value: Strive for creation and super excellence. Make customers succeed based on mutual benefit.
