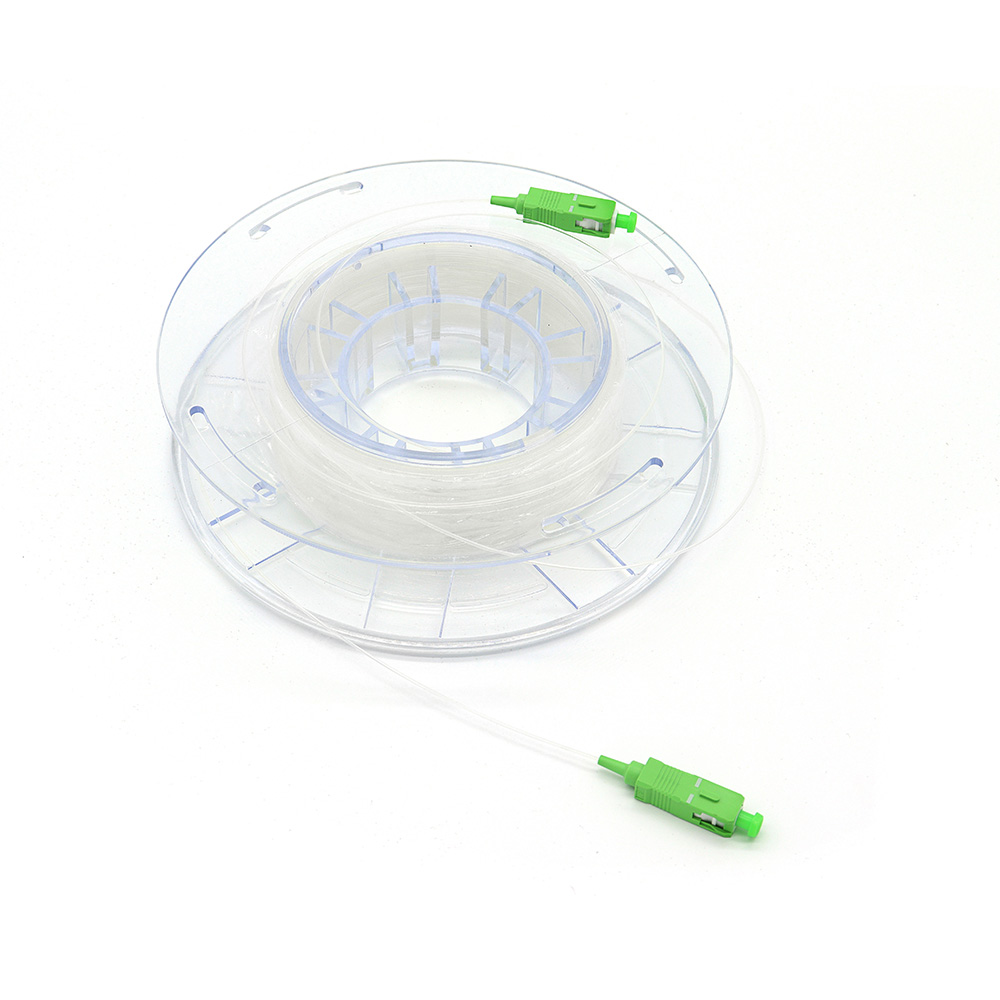

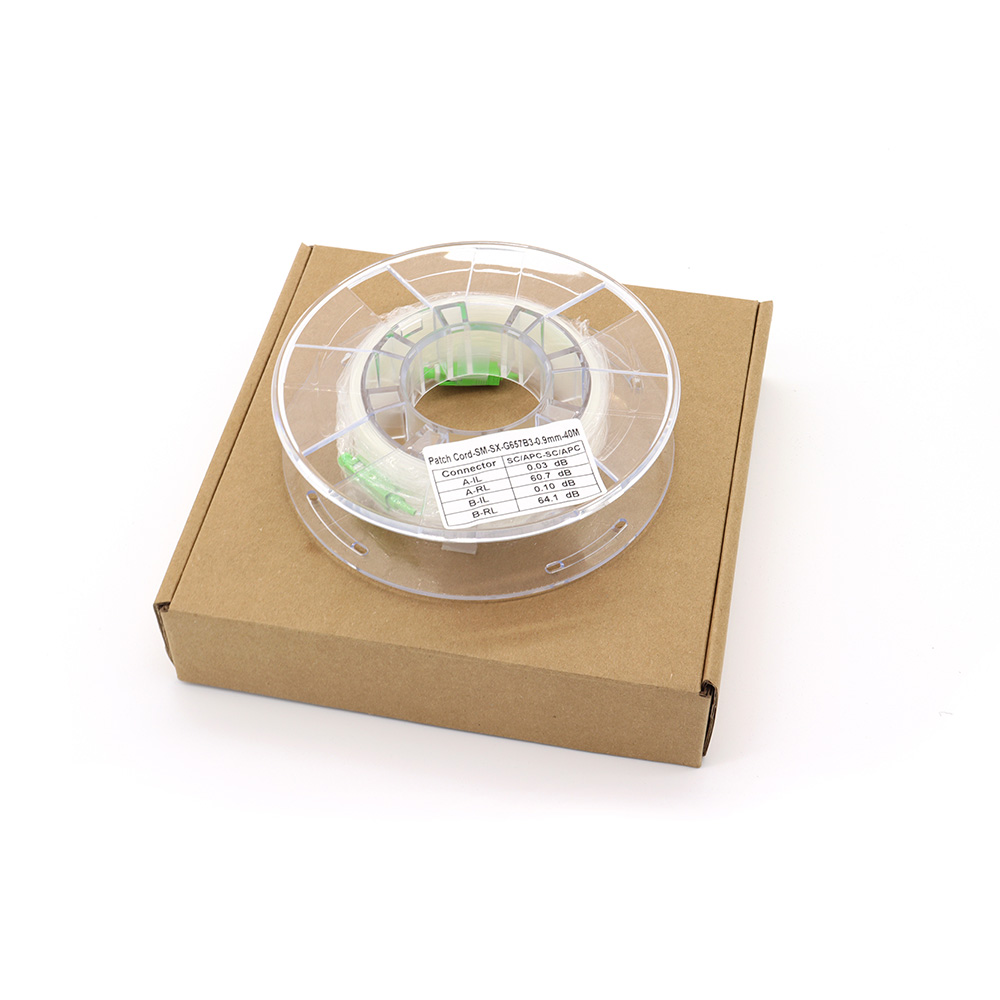

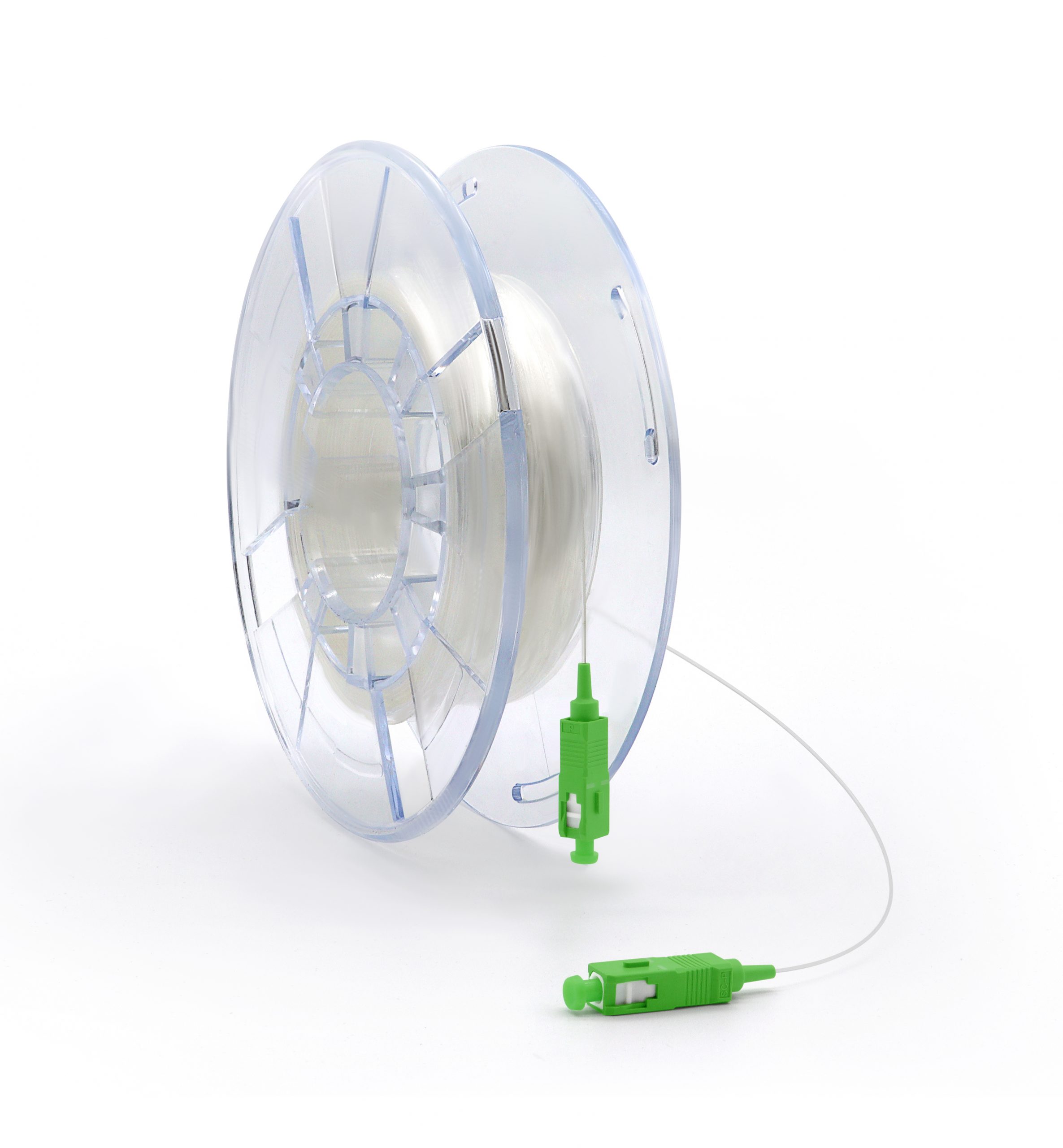

0.9mm Invisible Fiber Optic Patch Cord For FTTH FTTx Network
The Carefiber transparent fiber system provides installers with a fast and easy technique for deploying fiber seamlessly around baseboard, windows, and trim work-holding firmly in place and nearly invisible to the casual observer.
0.9mm Invisible Fiber Optic Patch Cord For FTTH FTTx Network Features:
- Ultra bend-insensitive fiber
- Fiber bonds consistently to common surface types in any indoor environment
- Does not require messy caulking, staples, or brackets
- Installed cable almost undetectable to the casual observer
- Reduced bend radius fiber technology is less susceptible to attenuation loss as a result of handling and tight bends
- Low insertion loss and high return loss
- Excellent end-face geometry parameter
0.9mm Invisible Fiber Optic Patch Cord For FTTH FTTx Network Applications :
- Mainly used as wiring cable in user access section of fiber to the home (FTTH) and other optical access (FTTx) network. Can be matched connectors for pre-assembling or field assembling.
Black 3.0mm SC APC Patch Cord Through Wall Signal Transmission Specifications:

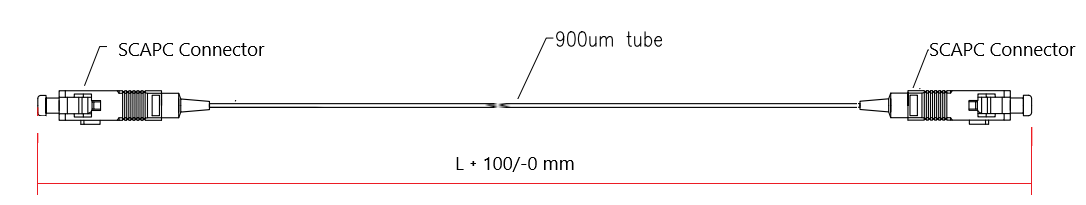

1. The Connector optical performance(Single mode cable)
| Project | Spec. | Standard |
| Operating wavelength | 1260～1650nm | Follow GR326-CORE and IEC Standard |
| Applicable optical cable | φ0.9mm | |
| Insertion loss | ≤0.3dB（Typical：0.2dB） | |
| Return loss | ≥60（APC）、≥50（UPC） | |
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.1dB | |
| Mechanical Durability | 500 times | |
| Diameter of pipe | ≥7.0mm | |
| Tractive power | ≥100N | |
| Attenuation changes after traction | ≤0.1dB | |
| Working temperature | -40～+85℃ |

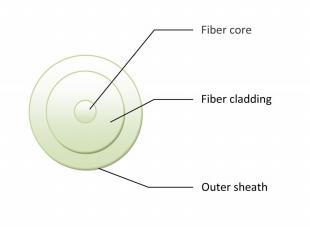

2. Optical Cable
| Items | Descriptions | ||
| Optical Fiber | Fiber count | 1G657A2 | 1G657B3 |
| Color | Natural | ||
| Tight buffer fiber | Material | Ultra transparent invisible composite material | |
| Color | Transparent | ||
| Diameter | 0.85±0.05mm | ||
| weight ±1%KG/KM | 0.85 | ||
| Bending Radius | Static | ≥7.5mm | ≥5mm |
| Dynamic | ≥15mm | ≥10mm | |
