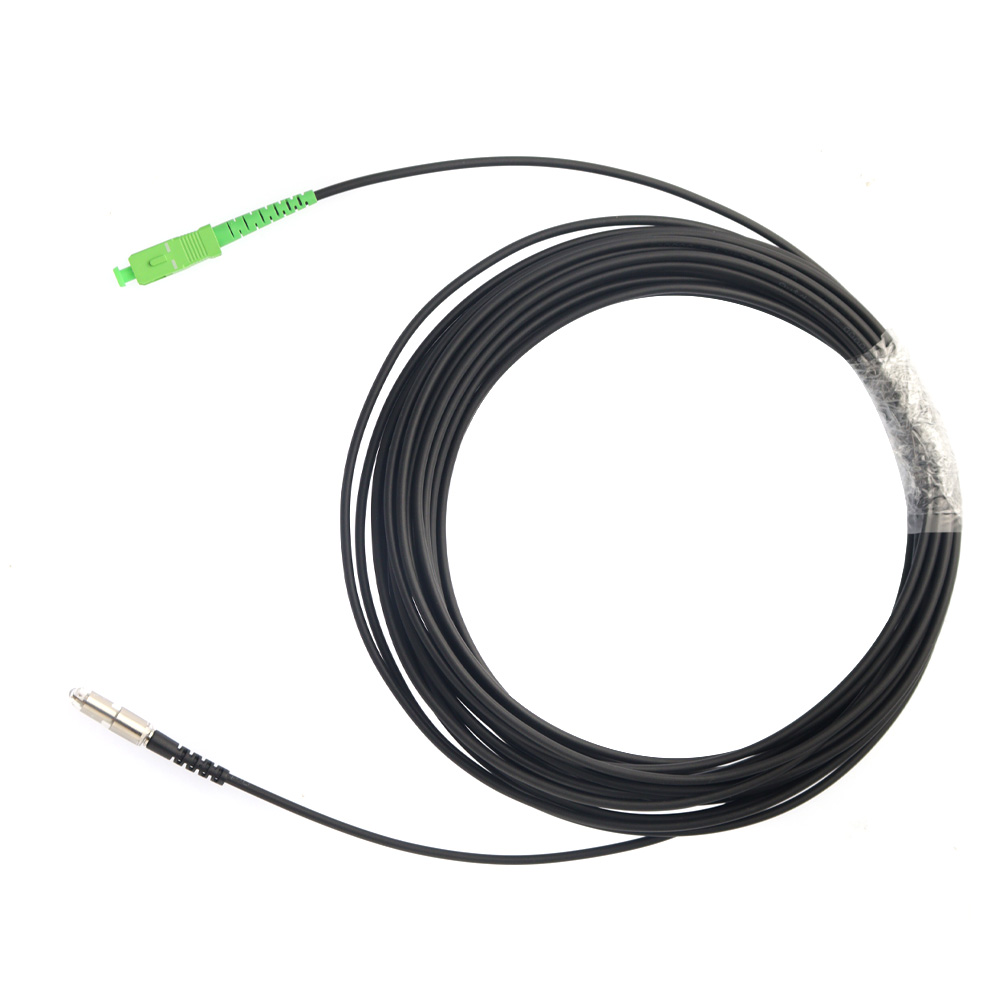

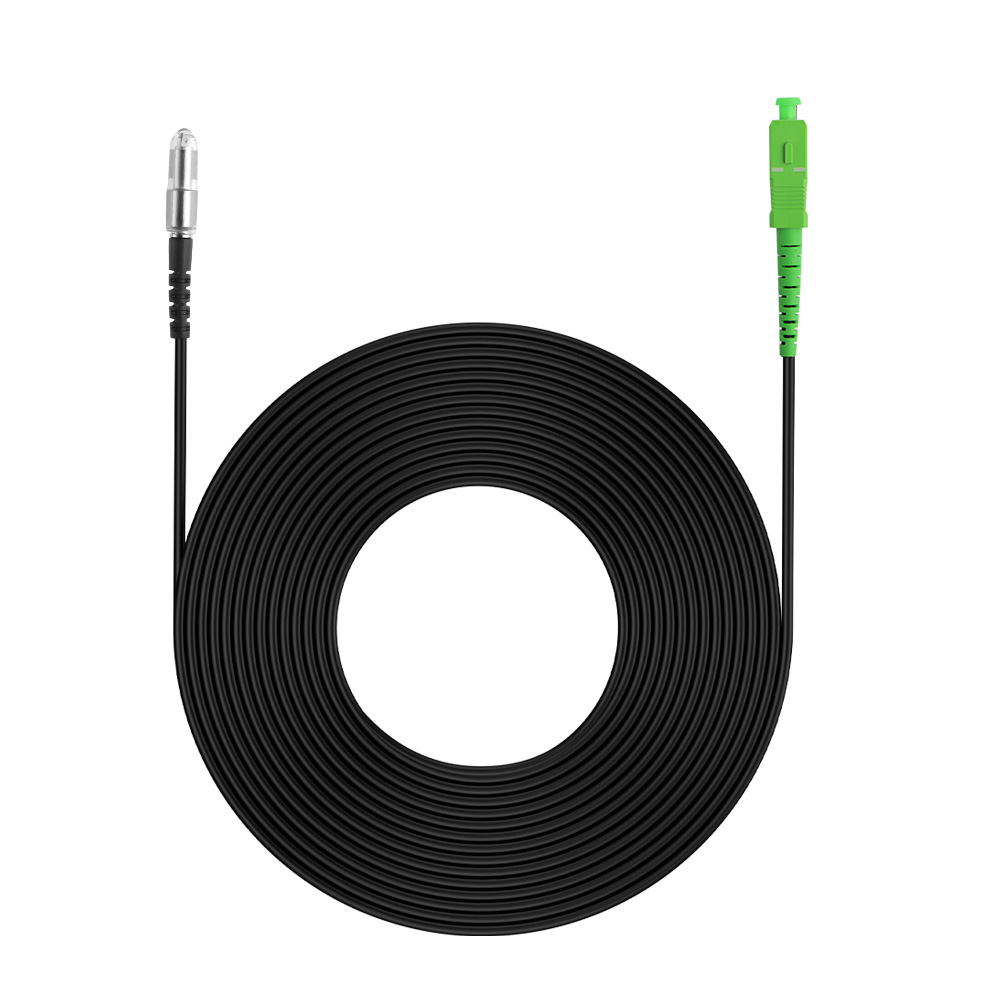

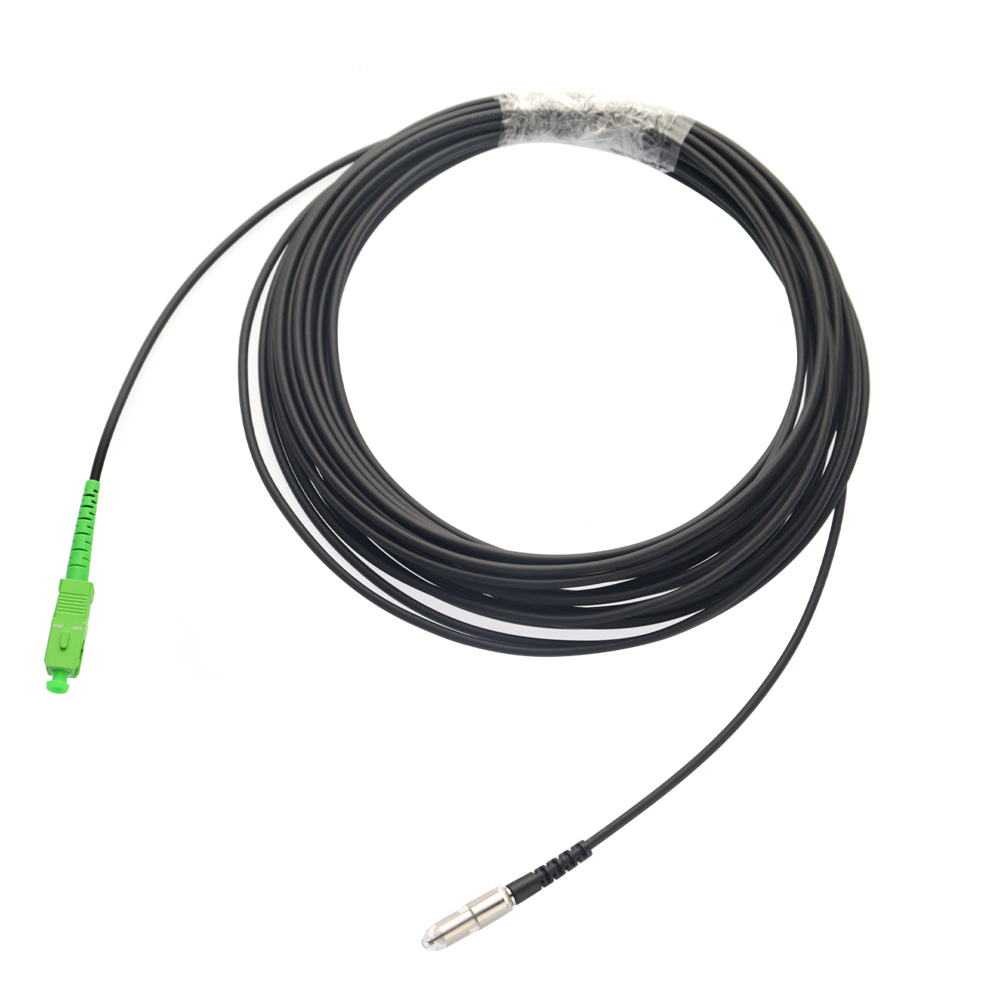

Black 3.0mm SC APC Patch Cord Through Wall Signal Transmission
The Carefiber Through-wall Patch cord is a type of cable used to transmit signals through walls or other obstacles, allowing for signal transmission between different rooms or areas. This type of cable is commonly used in applications such as networking, television, telephone, and security systems.
Black 3.0mm SC APC Patch Cord Through Wall Signal Transmission Features:
- A SCAPC connector has been assembled in the factory, and the other SCAPC connector can be assembled on-site.
- The SCAPC connectors assembled on-site can be used for traction construction,

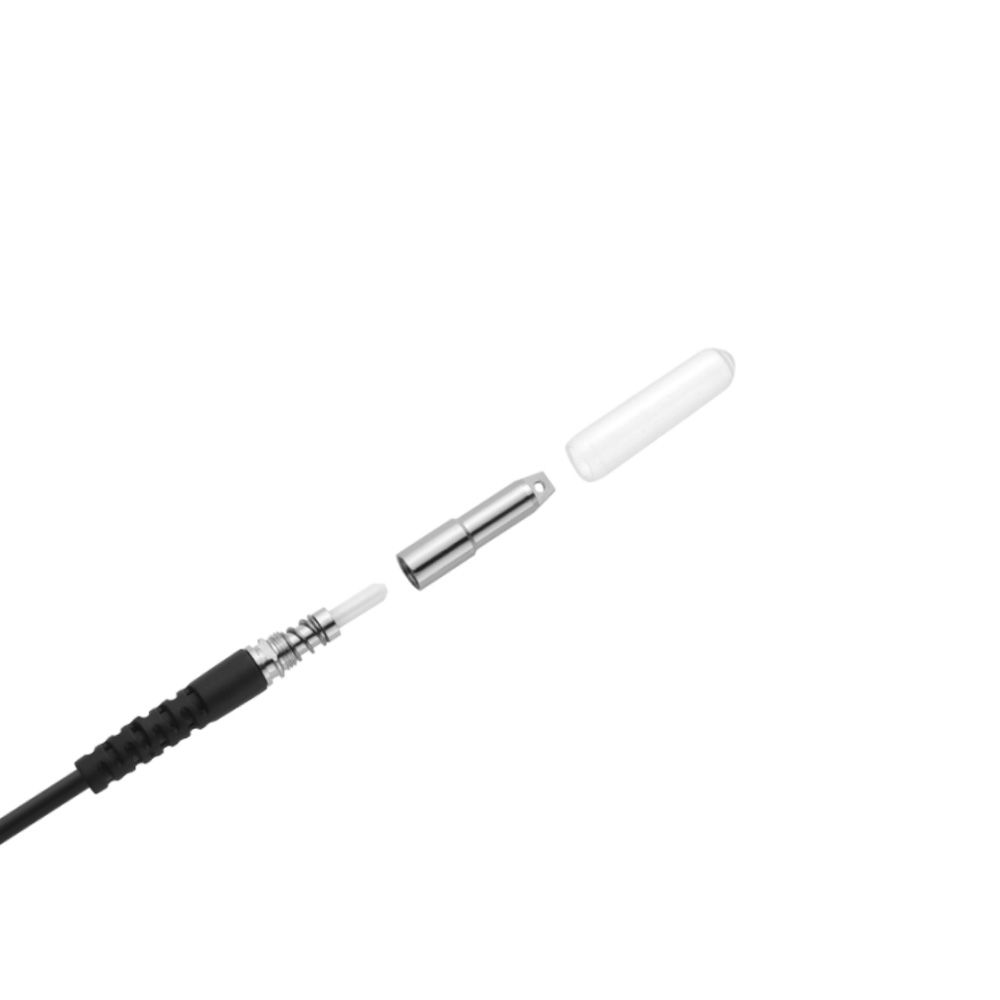

- The Assembling SCAPC connector is made of resistant, low-friction plastic. At its upper end, there is a hole from which a guide wire can be attached to be pulled over free and occupied ducts.
- 100% optically tested to ensure quality performance assemblies.
- A broad temperature range (-40 to +85 °C) is ideal for indoor applications.
Black 3.0mm SC APC Patch Cord Through Wall Signal Transmission Applications :
They are mainly used as wiring cables in the user access section of fiber to the home (FTTH) and other optical access (FTTx) networks. Can be matched connectors for pre-assembling or field assembling.
Black 3.0mm SC APC Patch Cord Through Wall Signal Transmission Specifications:
1. The Connector optical performance(Single mode cable)
| Project | Spec. | Standard |
| Operating wavelength | 1260～1650nm | Follow GR326-CORE and IEC Standard |
| Applicable optical cable | φ3.0 | |
| Insertion loss | ≤0.3dB（Typical：0.2dB） | |
| Return loss | ≥60（APC）、≥50（UPC） | |
| Repeatability | ≤0.1dB | |
| Interchangeability | ≤0.1dB | |
| Mechanical Durability | 500 times | |
| Diameter of pipe | ≥7.0mm | |
| Tractive power | ≥100N | |
| Attenuation changes after traction | ≤0.1dB | |
| Working temperature | -40～+85℃ |
2. Optical Cable
| Items | Specifications | |
| Cable Type | Φ3.0 Cable | |
| Fiber count | Count | 1 |
| Type | G657A2 | |
| Color | Red | |
| Tight Buffer | Diameter | 0.85±0.05mm |
| Material | LSZH | |
| Color | Red | |
| Strength Member | Aramid Yarn | High tensile tensile yarn |
| Outer Sheath | Diameter | 3.0±0.15mm |
| Material | TPU | |
| Color | Black | |
| weight | 9.0 Kg/KM（±5%） | |
