Single Mode 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span Fiber Optic Cable

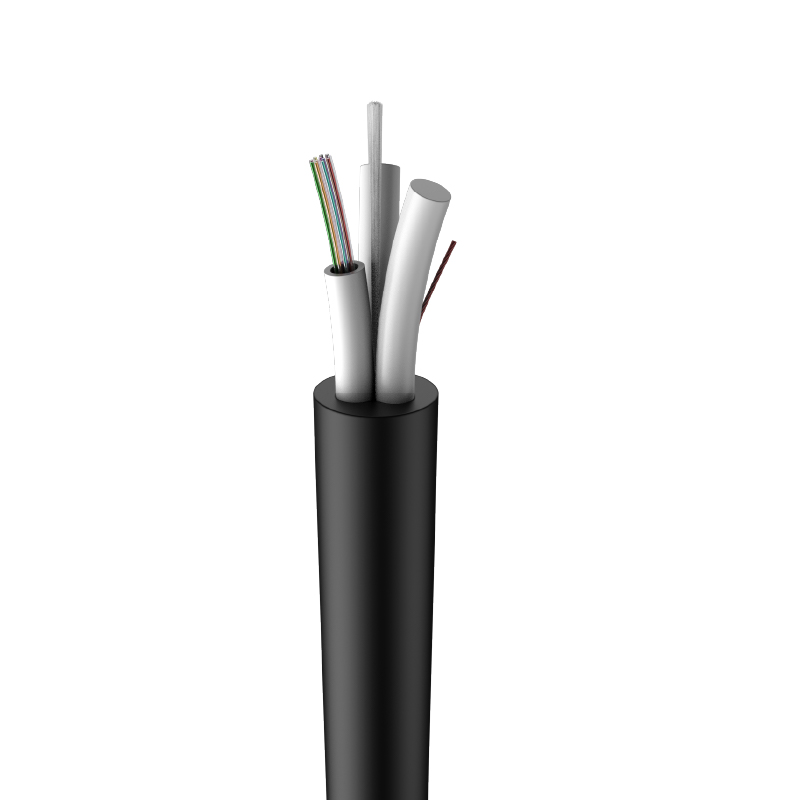

Carefiber's Mini Adss ASU Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watering. Two Parallel fiber-reinforced plastic(FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication. Carefiber can customize the number of cores of ASU Fiber Optic cables according to customer needs. The number of cores of mini ADSS Cable is 2,4,6,12 up to 24 cores.

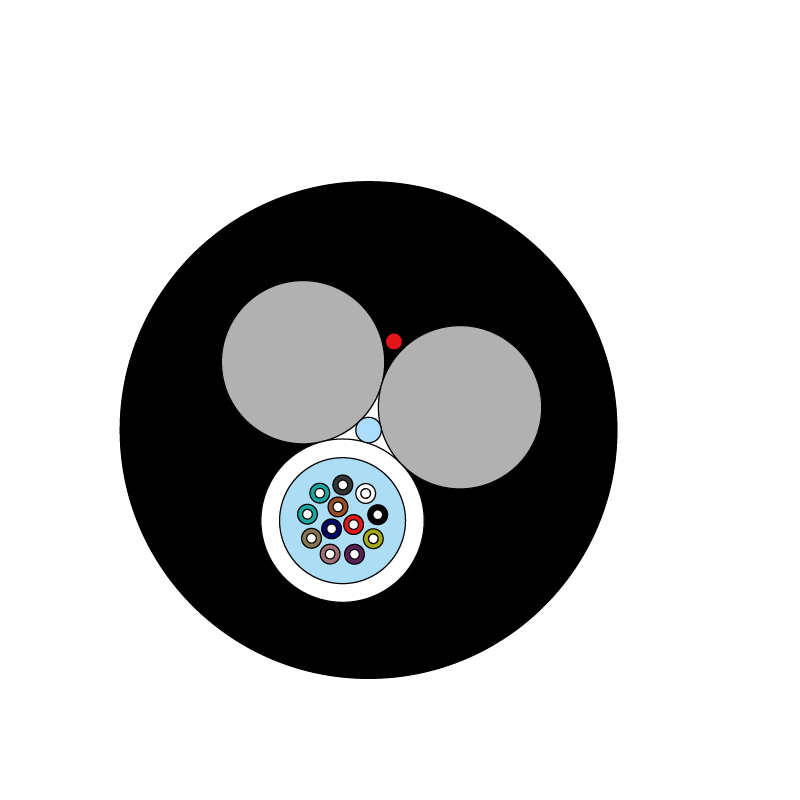

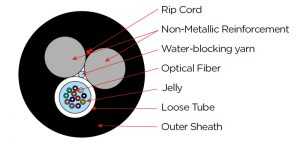

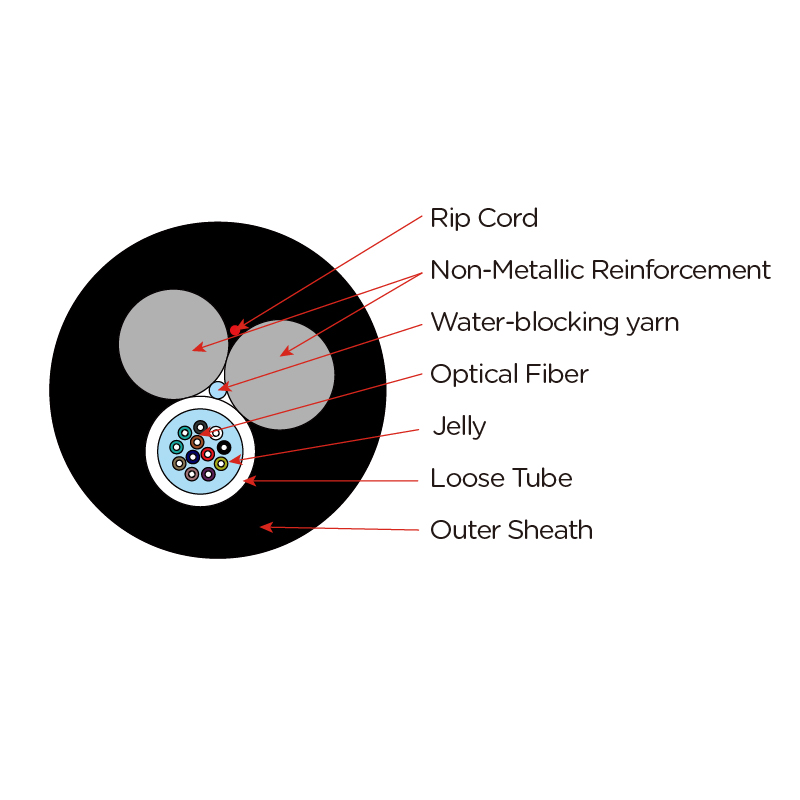

Single Mode 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span Fiber Optic Cable Dimensions and Construction:
| Items | Descriptions | ||
| Optical Fiber | Fiber count | G652D | |
| Color | Blue Orange Green Brown Grey White Red Black Yellow Violet Pink Aqua | ||
| Counts | 2/4/6/8FO | 12FO | |
| Structure | / | 0+3 | |
| CSM | Material | 2*Fiberglass Reinforced Plastic-FRP | |
| Loose tube | Material | PBT | |
| Color | Natural | ||
| Counts | 1 | ||
| Fiber per tube | 2/4/6/8 | 12 | |
| Outer sheath | Material | HDPE Anti-UV | |
| Color | Black | ||
| Tne Water-blocking Material | Block Water Yarn | ||
| Stripping Way | 1* Rip Cord | ||
| Cable diameter(mm)±5% | 7.0 | ||
| Span(m) | 120 | ||
| Weight ±10% Kg/Km | 50 | ||
Single Mode 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span Fiber Optic Cable Features:
- Small Size and Length Weight.
- Two FRPs are strength members to provide good tensile performance.
- Gel-filled or gel-free, good waterproof performance.
- The ASU Mini ADSS optical fiber is put in a loose tube with 4-12 cores in the tube.
- A tube-filling compound will be used as a water-blocking element.
- FRP are put together for tensile strength.
- The cable surface is extruded with a PE outer sheath.
Single Mode 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span Fiber Optic Cable Applications :
- Vertical cabling use
- FTTx indoor optical cable use
- Fiber optic loop cabling
- On-premises data center access
Single Mode 12 Core ASU Aerial Fiber Optic Cable Self Supporting ASU Mini Adss Span Fiber Optic Cable Attenuation:
- Single-mode
Fiber type G652D (1310/1550nm
G657A1 (1310/1550nm)
G657A2 (1310/1550nm)
G657B3 (1310/1550nm)
Attenuation Typical 0.35/0.21 0.35/0.21 0.35/0.21 0.35/0.21 Maximum 0.4/0.3 0.4/0.3 0.4/0.3 0.4/0.3 Zero Dispersion Slope ≤0.091 ps/km ·nm 2 ≤0.092 ps/km ·nm 2 ≤0.092ps/km ·nm 2 ≤0.092ps/km ·nm 2 Dispersion(1285~1340nm) -3.5-3.5ps/(nm-km) -3.5-3.5ps/(nm-km) -3.5-3.5ps/(nm-km -3.5-3.5ps/(nm ·km Mode field Diameter(@1310nm) 9.1±0.4 μm 8.8±0.4 μm 8.8±0.4 μm 8.6±0.4 μm Cutoff wavelength cable(nm) ≤1260 nm ≤1260 nm ≤1260 nm ≤1260 nm Min bend radius(mm) 16 mm 10 mm 7.5 mm 5 mm Cladding diameter(μm) 125±1.0 125±1.0 125±1.0 125±1.0
