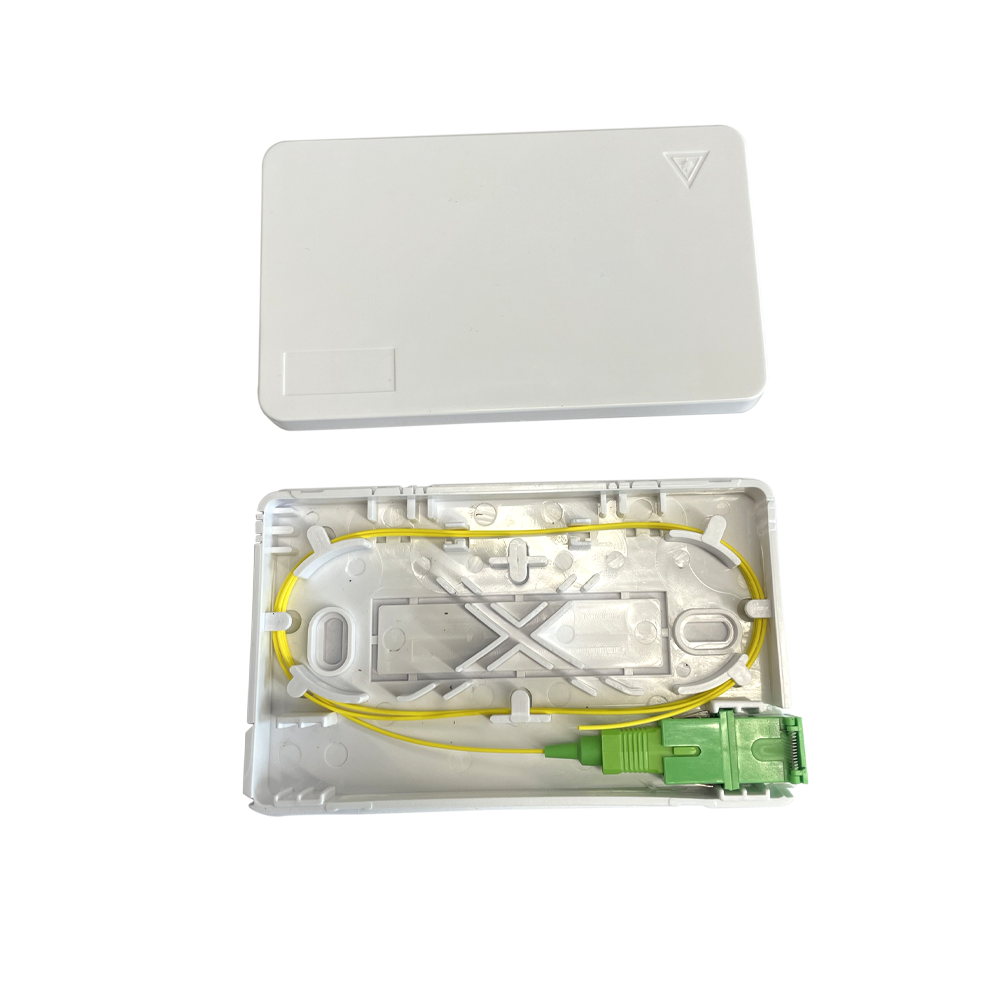

Fiber Optic Panel Box 2 Ports FTTH Fiber Optical Information Box
This type of fiber rosette box can hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with the patch cable in the FTTH indoor application. It integrates fiber splicing, termination, storage, and cable connection in one solid protection box.
Fiber Optic Panel Box 2 Ports FTTH Fiber Optical Information Box Features:
- Dust-proof design with IP-45 Protection level;
- The fiber rosette box supports up to 2 SC adapters;
- Manage fibers in a reasonable fiber radius condition;
- Easy to maintain and extend the capacity;
- Suitable for the fusion splice or mechanical splice;
- Embedded type surface, easy for installation and removal;
- Three sides of the box can be used for introducing optical cables for different optical cables;
- Support screw installation or double-sided tape installation.
- The logo can be printed according to customer requirements.
Fiber Optic Panel Box 2 Ports FTTH Fiber Optical Information Box Applications :
- Smart Broadband
- Fiber to the home
- Broadband cable TV
- Local area network
Fiber Optic Panel Box 2 Ports FTTH Fiber Optical Information Box Specifications:
ITEM | Parameters | Remarks |
External dimension | 117*70*16mm | |
Scope of application | 2*3mm、2*1.6mm Flat cable;3.0mm、5.0mm Round cable | |
Support adapter | SC-SX or LC-DX adapter | |
Adapter Qty’(Max) | 2 pcs | |
Capacity(Max) | SC 2ports or LC 4ports | |
Disc fiber curvature radius | ≥30mm | |
Additional loss of optical fiber disk | ≤0.01dB | |
Material | PC+ABS | Customizable |
Color | White | Customizable |
Weight | 0.2KG | |
Operating temperature | -40 ~ +65℃ |
