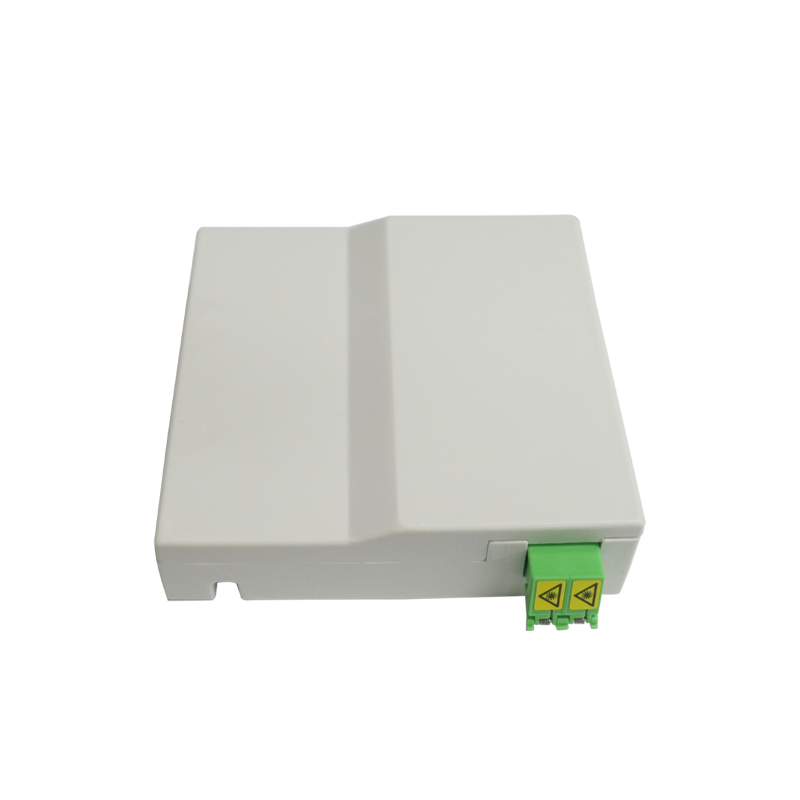

FTTH 1/2 Core Type Indoor Terminal Box FTTH Rosette Box

This type of fiber rosette box can hold one subscriber. It is used as a termination point for the drop cable to connect with the patch cable in the FTTH indoor application. It integrates fiber splicing, termination, storage, and cable connection in one solid protection box.

FTTH 1/2 Core Type Indoor Terminal Box FTTH Rosette Box Features:

  1.  Dust-proof design with IP-45 Protection level.
  2.  Manage fibers in a reasonable fiber radius condition.
  3.  Easy to maintain and extend the capacity.
  4.  Suitable for mechanical splice.
  5.  Embedded type surface, easy for installation and removal.
  6.  2 ports（Front, behind） cable entrance for patch cable.
  7.  Support screw installation or double-sided tape installation.

FTTH 1/2 Core Type Indoor Terminal Box FTTH Rosette Box Applications :

  1. Smart Broadband
  2. Fiber to the home
  3. Broadband cable TV
  4. Local area network

FTTH 1/2 Core Type Indoor Terminal Box FTTH Rosette Box Specifications:

ITEM Parameters Remarks
External dimension 86*86*22mm
Scope of application 3.0*2.0mm 、φ3.0mmDrop cable
Support adapter SC-SX or LC-DX adapter
Adapter Qty’(Max) 1 pcs
Capacity(Max) 1 port or LC 2ports
Disc fiber curvature radius ≥25mm
Additional loss of optical fiber disk ≤0.01dB
Material PC+ABS Customizable
Color White Customizable
Weight 0.1KG
Operating temperature -40 ~ +65℃
