FTTx Uni Tube Light Armored GYXTW Fiber Cable With Rodent Protection

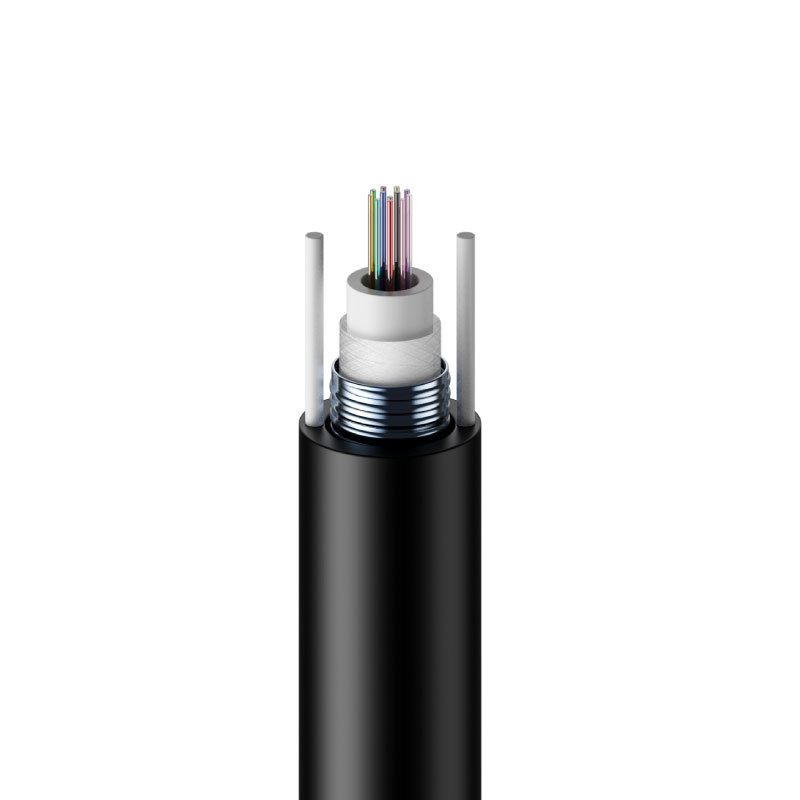

In the GYXTW cable, single-mode/multimode fibers are positioned in the loose tube, which is made of high-modulus plastic materials and filled with filling compounds. PSP is longitudinally applied around the loose tube, and water-blocking materials are distributed into interstices between them to guarantee compactness and longitudinal water-blocking performance. Two parallel steel wires are placed at both sides of the cable core while the PE sheath is extruded over it.

FTTx Uni Tube Light Armored GYXTW Fiber Cable With Rodent Protection Dimensions and Constructions:

Items Descriptions
Optical Fiber Fiber count G652D
Color Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink Aqua

The color wheel to distinguish
Counts 6FO 8FO 10FO 12FO 24B1.3
Strength Member Material Phosphating steel wire
Loose tube Material LSZH
Color Natural
Filler Jelly
Counts 1
Outer  sheath Material PE
Color Black
Metal layer Corrugated steel tape
Filler The water-blocking material
Cable Diameter(±5%) 7.0mm 8.0mm
weight      ±10%KG/KM 50 53 54 54 70

FTTx Uni Tube Light Armored GYXTW Fiber Cable With Rodent Protection Features:

  1.  The accurate excess fiber length guarantees excellent mechanical and temperature performance.
  2.  Critical protection to fibers, based on excellent hydrolysis resistance.
  3.  Excellent crush resistance and flexibility.
  4.  PSP enhances the cable crush-resistance, impact-resistance, and moisture-proof.
  5.  Two parallel steel wires ensure tensile strength.
  6.  Excellent ultraviolet prevention with PE sheath, small diameter, lightweight, and installation friendliness.

FTTx Uni Tube Light Armored GYXTW Fiber Cable With Rodent Protection Applications :

  1.  Installed in duct, direct burial.
  2.  FTTx.

FTTx Uni Tube Light Armored GYXTW Fiber Cable With Rodent Protection Fiber Attenuation:

  1. Single-mode
    Fiber type G652D

    (1310/1550nm

    		 G657A1

    (1310/1550nm)

    		 G657A2

    (1310/1550nm)

    		 G657B3

    (1310/1550nm)
    Attenuation Typical 0.35/0.21 0.35/0.21 0.35/0.21 0.35/0.21
    Maximum 0.4/0.3 0.4/0.3 0.4/0.3 0.4/0.3
    Zero Dispersion Slope ≤0.091 ps/km ·nm 2 ≤0.092 ps/km ·nm 2 ≤0.092ps/km ·nm 2 ≤0.092ps/km ·nm 2
    Dispersion(1285~1340nm) -3.5-3.5ps/(nm-km) -3.5-3.5ps/(nm-km) -3.5-3.5ps/(nm-km -3.5-3.5ps/(nm ·km
    Mode field Diameter(@1310nm) 9.1±0.4 μm 8.8±0.4 μm 8.8±0.4 μm 8.6±0.4 μm
    Cutoff wavelength cable(nm) ≤1260 nm ≤1260 nm ≤1260 nm ≤1260 nm
    Min bend radius(mm) 16 mm 10 mm 7.5 mm 5  mm
    Cladding diameter(μm) 125±1.0 125±1.0 125±1.0 125±1.0
