Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO

Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO

This Outdoor Breakout FTTA Cable GYFJH offers a range of features and advantages that set it apart from the competition. With its multi-choice options for single-mode (SM) and multimode (MM) fiber, flexible and soft construction, and easy installation, the GYFJH cable is a preferred choice for various applications, including assembly and base station setups. Its jacket material, made from low smoke zero halogen (LSZH), ensures enhanced safety and performance.

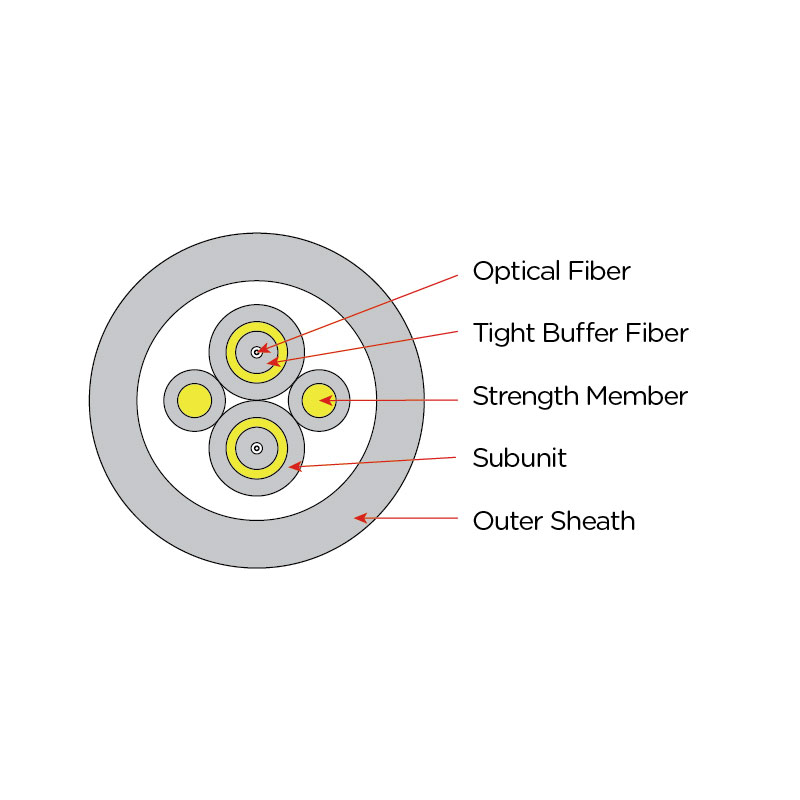

Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO Cable Dimensions and Constructions:

Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO Features:

1. FTTA Breakout Cable GYFJH Mechanical Characteristic Geometrical Characteristic Features: Multichoice for SM and MM Fiber Flexible, soft, easy to install Applicable for Assembly, Base station Jacket material, LSZH.
2. Superior Flexibility: Unlike rigid cables that can be challenging to install and maneuver, the FTTA Base Station Cable GYFJH offers outstanding flexibility. Its soft and pliable design allows for effortless routing and easy installation, saving you time and resources.
3. Wide Fiber Options: The GYFJH cable provides the freedom to select the most suitable fiber type for your specific application. Whether you require single-mode or multimode fiber, this cable offers versatile choices, ensuring optimal performance and compatibility.
4. Reliable Performance: With its robust construction and high-quality materials, the GYFJH cable guarantees reliable performance even in demanding environments. Its exceptional signal transmission capabilities and resistance to external factors make it a trusted choice for critical installations.
5. Enhanced Safety: Safety is paramount, and theFTTA Base Station Cable GYFJH prioritizes this aspect with its LSZH jacket material. By using a low smoke zero halogen compound, this cable minimizes the release of toxic smoke and gases during a fire incident, reducing potential harm to personnel and equipment.

Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO Applications :

1. Backbones and Access.
2. Installed in ducts, Aerial/lashed.

Outdoor Breakout FTTA Fiber Optical Cable GYFJH-2FO Fiber Attenuation:

1. Single-mode


   Fiber type		G652D (1310/1550nm	G657A1 (1310/1550nm)	G657A2 (1310/1550nm)	G657B3 (1310/1550nm)
   Attenuation	Typical	0.35/0.21	0.35/0.21	0.35/0.21	0.35/0.21
   	Maximum	0.4/0.3	0.4/0.3	0.4/0.3	0.4/0.3
   Zero Dispersion Slope		≤0.091 ps/km ·nm 2	≤0.092 ps/km ·nm 2	≤0.092ps/km ·nm 2	≤0.092ps/km ·nm 2
   Dispersion(1285~1340nm)		-3.5-3.5ps/(nm-km)	-3.5-3.5ps/(nm-km)	-3.5-3.5ps/(nm-km	-3.5-3.5ps/(nm ·km
   Mode field Diameter(@1310nm)		9.1±0.4 μm	8.8±0.4 μm	8.8±0.4 μm	8.6±0.4 μm
   Cutoff wavelength cable(nm)		≤1260 nm	≤1260 nm	≤1260 nm	≤1260 nm
   Min bend radius(mm)		16 mm	10 mm	7.5 mm	5  mm
   Cladding diameter(μm)		125±1.0	125±1.0	125±1.0	125±1.0

2. Multi-mode


   Fiber type		62.5/125μm  (850/1300nm)	50/125μm (850/1300nm)	OM2+ (850/1300nm)	OM3 (850/1300nm)	OM4  (850/1300nm)	OM5 (850/953/1300nm)
   Attenuation	Typical	3.0/1.0	3.0/1.0	3.0/1.0	3.0/1.0	3.0/1.0	3.0/---/1.0
   	Maximum	3.5/1.5	3.5/1.5	3.5/1.5	3.5/1.5	3.5/1.5	3.5/---/1.5
   Bandwidth(MHz ·km)		≥200/≥500	≥400/≥500	≥700/≥500	≥1500/≥500	≥3500/≥500	≥3500/≥1850/≥500
   Effective modal bandwidth		----/--	----/----	≥950	≥2000/----	≥4700/----	≥4700/≥4700/---
   10 Gigabit Ethernet SX (M)		----/----	----/----	----/----	≤300/----	≤550/----	40GBASE-SR4/100GB  ASE-SR10@850--200M
   Min  bend   radius(mm)		16  mm	10mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
   Cladding diameter(μm)		125±1.0	125±1.0	125±1.0	125±1.0	125±1.0	125±1.0
