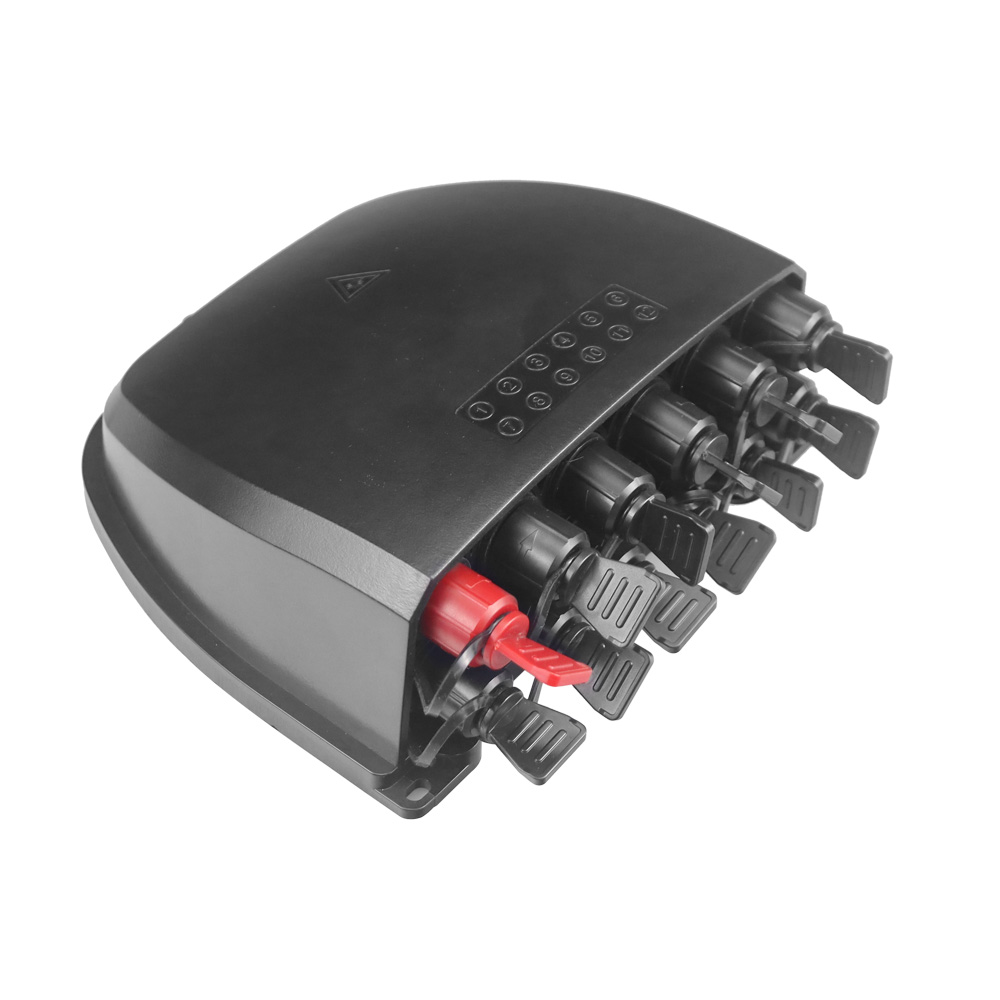

Pre-connected Fiber Optic Distribution Box 12 Cores Black ABS Protection with Waterproof Adapter

This type of fiber access termination closure can hold up to 12 subscribers, The equipment is used as a termination point for the feeder cable to connect with the drop cable in the FTTH communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building.

Pre-connected Fiber Optic Distribution Box 12 Cores Black ABS Protection with Waterproof Adapter Features:

  1.  Apply to wall-mounted Hold-up installation.
  2.  High-strength material with good weather adaptability and UV resistance.
  3.  Port into the end and leakage design, no need to open the box, easy construction.
  4.  Box can be installed by way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
  5.  Different color adapters are supported to distinguish the box channels.
  6.  Water-proof, dust-proof, anti-aging, protection level up to IP68.

Pre-connected Fiber Optic Distribution Box 12 Cores Black ABS Protection with Waterproof Adapter Applications :

  1.  FTTH Application;
  2.  Fiber optic communications in harsh outdoor environments;
  3.  Outdoor communication equipment connection;
  4.  Waterproof fiber equipment SC port;
  5.  Remote wireless base station;
  6.  FTTx FTTA wiring project.

Pre-connected Fiber Optic Distribution Box 12 Cores Black ABS Protection with Waterproof Adapter Configuration:

Item Specifications Remark
External dimension 200*180*65mm
Passageway Max.12F
Support adapter Mini、OptiTap、 Water-proof adapter Or SC to SC water-proof Adapter
Adapter Capacity(Max) 12 pcs
Diameter of the box adapter hole Φ18.2mm
Support PLC Splitter 1pc 1*8 Type or 1*9、1*11 type
IP protection level IP68
Material ABS can be customized according to requirements
 Box Color Black
Flammability HB(Conventional)
Neutral salt spray test (NSS) 168 h
Weight 0.45KG

Carefiber Service:

Carefiber Optical Technology Co., Ltd. is located in Longhua New District, Shenzhen City, Guangdong Province. Founded in 2010, over the past 15 years, the Carefiber group has HK Carefiber, and Guangxi Carefiber two sub-companies, they both are high-tech enterprises dedicated to research, development, production, and sales of FTTH products in the following categories: Indoor/outdoor drop cable, Fiber optical fast connector, Patch cord, Pigtail, PLC splitter, FTB coupler, Adaptor, Fiber distribution box, Fiber distribution frame, Fiber Joint closure, indoor and outdoor base station wiring products, MPO, data center products, 5G supporting solutions, etc, Carefiber provides customers with standard products and customized products of the integrated solutions.
Our Vision: Be a first-class optical communication enterprise.
Our Mission: Better products, technology, and services for customers.
Our Value: Strive for creation and super excellence. Make customers succeed based on mutual benefit.
