Oem Optical Cable Splitter Best Buy Manufacturer, Fiber Optic Splitter

Description

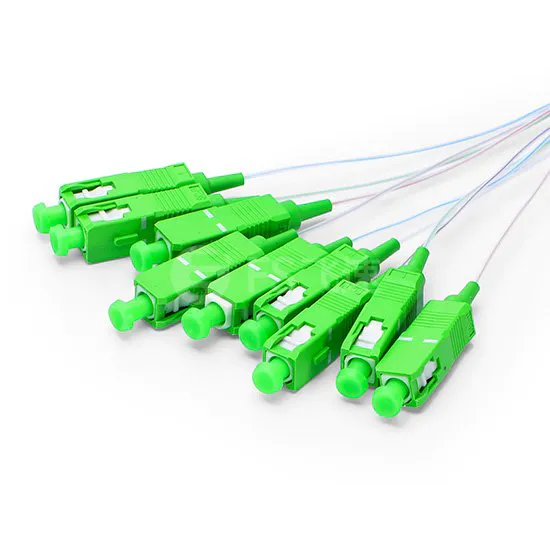

PLC optical splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

Specification

Category		Specification
Working Wavelength		nm	1260～1650
Test Wavelength		nm	1310&1490&1550
Insertion Loss	exclude connector	dB	≤10.5
	With connector	dB	≤11.0
Channel Uniformity		dB	≤0.8
Polarization Dependent Loss-PDL		dB	≤0.2
Directivity		dB	≥55
Return Loss		dB	≥55
Operating Temperature		℃	-40～+85

Product

Low loss, uniform light distribution, good stability.

0.00 ~~0.00~~

High quality transmission chipset with even light distribution and stronger light transmittance.

0.00 ~~0.00~~

Product structure diagram

Remarks:

1.Tolerance length of the 0.9mm tube is ±50mm
2.The steel pipe material is sus304
3.The matching tolerance of outer shell is ±0.5mm

Product features ＆ Standards

-Good Uniformity

-Not Sensitive to wavelengths

-Low Polarization loss

-Reliable

-YD/T 2000.1-2014

-GR-1209-Core

-GR-1221-Core

-ISO/IEC 11801 Generic cabling for customer premises

-Smaller size

Packge Method

The product will be winding and packed into the plastic box, then loaded into the color box and the outer box, finally put it into the carton. The packaging requirements natural beauty!
