Oem Fiber Splitter Manufacturer | Fiber Optic Splitter

Description

A divider is a device used to separate a telephone channel from a data channel.

Specification

Category	Specification
Working Wavelength	NM	1260～1650
Test Wavelength	NM	1310&1490&1550
Insertion Loss	dB	≤7.2
Channel Uniformity	dB	≤0.6
Polarization Dependent Loss-PDL	dB	≤0.2
Directivity	dB	≥55
Return Loss	dB	≥50
Operating Temperature	℃	-40～+85

Product

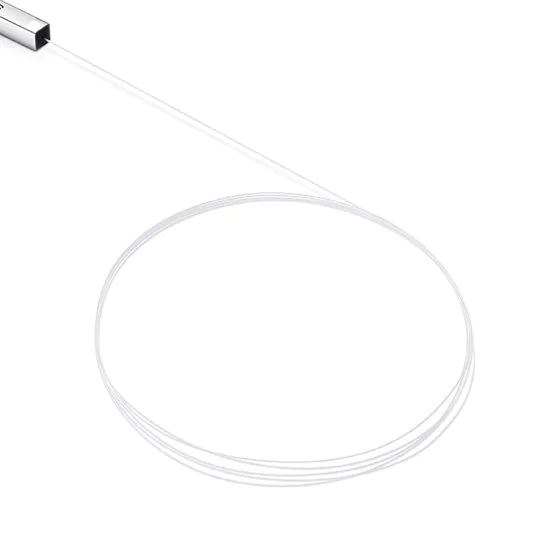

Low loss, uniform light distribution, good stability.

0.00 ~~0.00~~

High quality transmission chipset with even light distribution and stronger light transmittance.

0.00 ~~0.00~~

Product structure diagram

Remarks:

1.Tolerance of the length is ±50mm

2.The steel pipe material is sus304

3.The matching tolerance of outer shell is ±0.2mm

Product features ＆ Standards

-Good Uniformity

-Not Sensitive to wavelengths

-Low Polarization loss

-Reliable

-YD/T 2000.1-2014

-GR-1209-Core

-GR-1221-Core

-ISO/IEC 11801 Generic cabling for customer premises

-Smaller size

Packge Method

The product will be winding and packed into the plastic box, then loaded into the color box and the outer box, finally put it into the carton. The packaging requirements natural beauty!

0.00 ~~0.00~~
