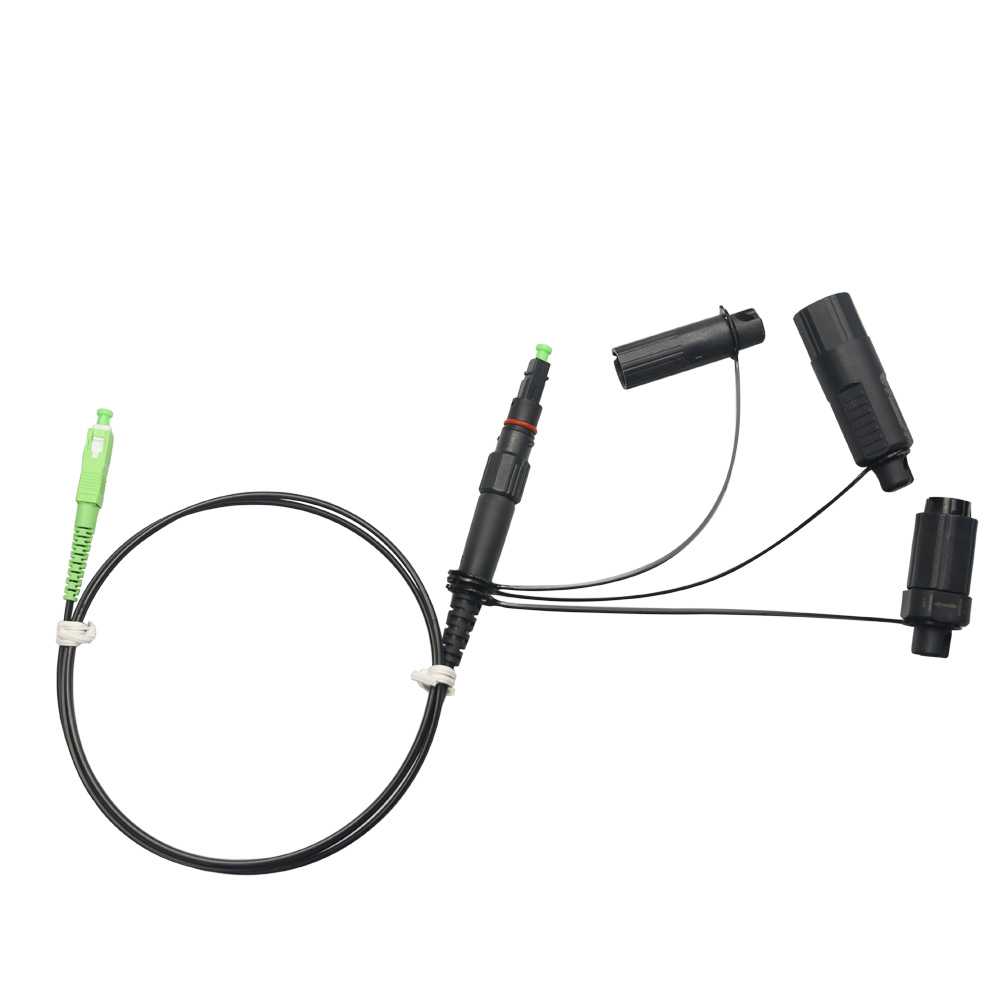

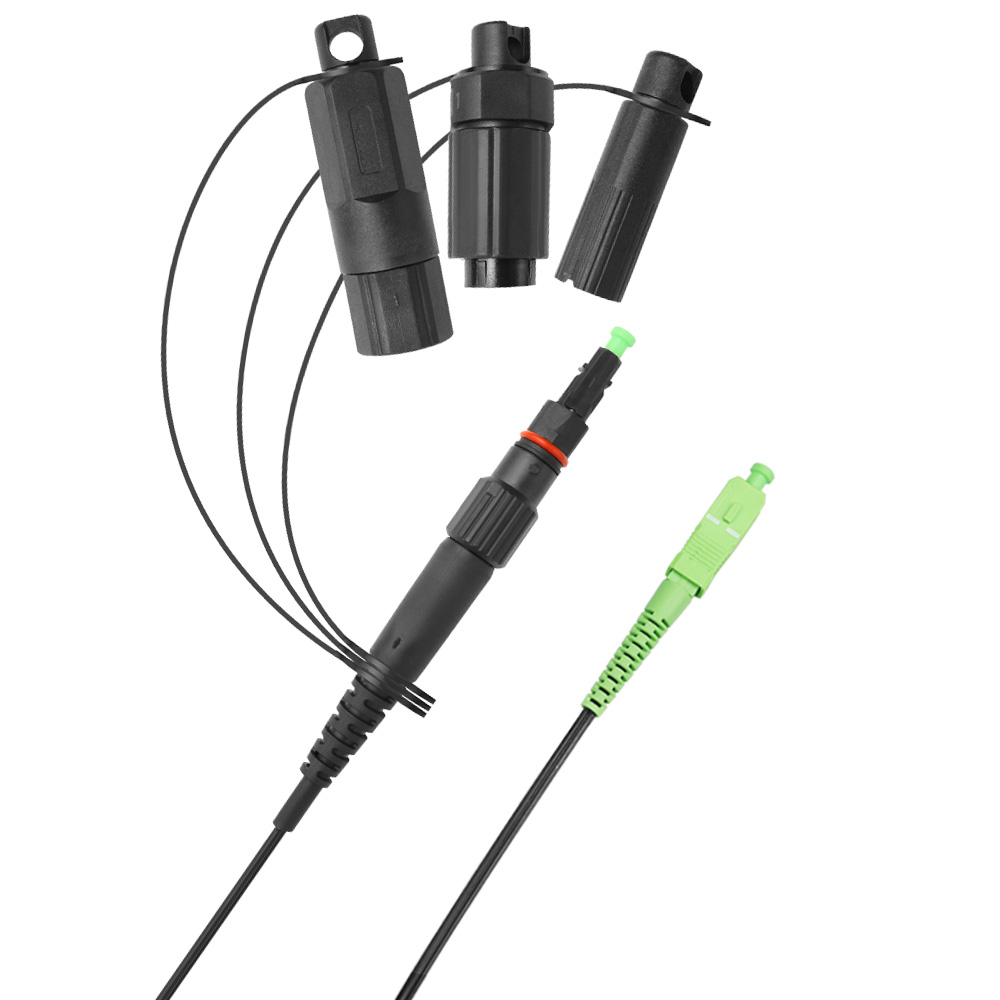

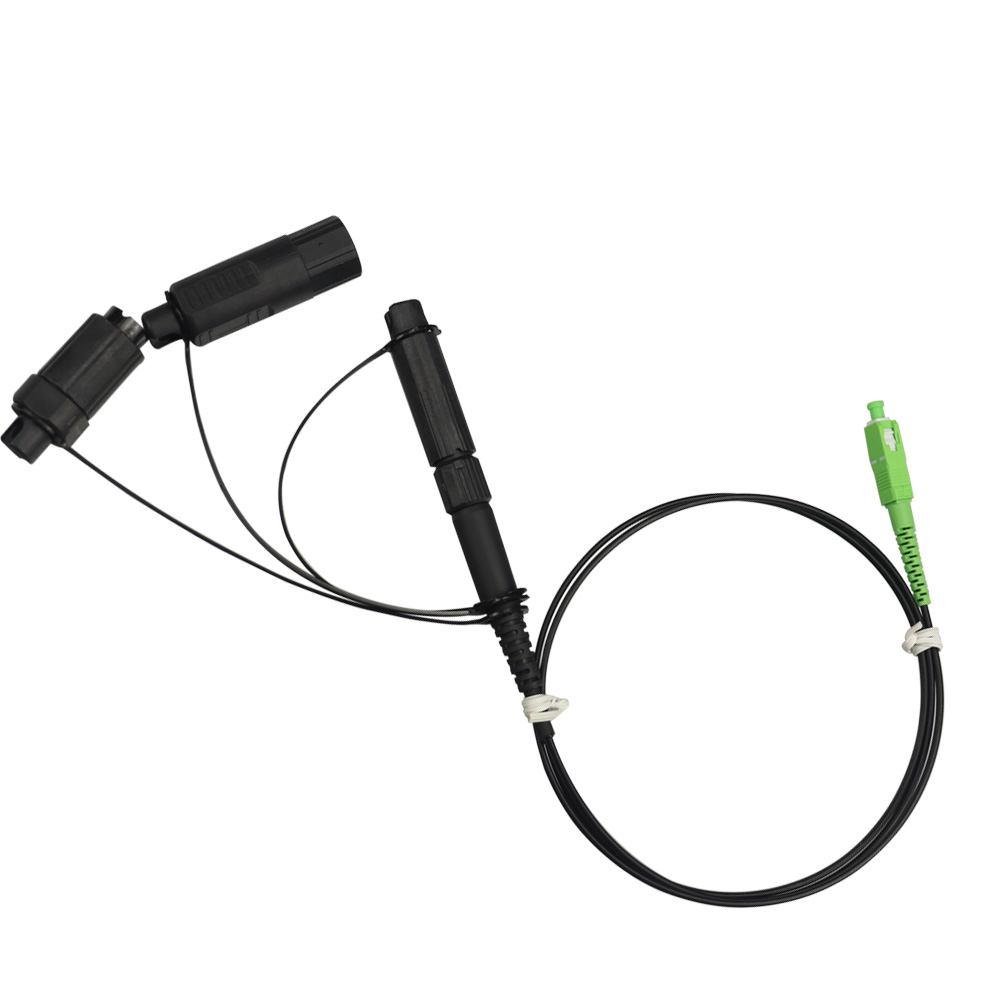

3 In 1 Waterproof Pre Connectorized Patch Cord For Fiber Optical
They are mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is OPT adapter or HW Fast connector, and Slim Connector, can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter. On-site operation is simple and easy to install, and no special tools are required.
3 In 1 Waterproof Pre Connectorized Patch Cord For Fiber Optical Specification:
- The Connector
| Project | Spec. | Standard |
| Operating wavelength | 1260～1650nm | GR-326-CORE；
IEC 61300 |
| Insertion loss | ≤0.3dB（Typical value：0.2dB) | |
| Return loss | ≥60dB（APC）≥50dB(UPC) | |
| Repeatability | ≤0.2dB | |
| Interchangeability | ≤0.2dB | |
| Mechanical Endurance | ≥500 Times | |
| Working temperature | -40～+70℃ |
- Optic Cable
| Project | Spec. | Standard |
| Fiber Type | G657A1 | IEC 60794 |
| Cable Diameter | (2.0*5.0)±0.2mm | |
| Strength member | 2*0.5mm-GFRP | |
| Self-supporting steel wire | 1.0mm-Phosphating steel wire | |
| Cable Material | LSZH | |
| Cable Color | Black | |
| Attenuation | ≤0.36 at 1310nm； ≤0.24 at 1550nm | |
| Tensile Strength | 600N（short-term）;300N（long-term） | |
| Crush Resistance | 2200N（short-term）;1000N（long-term） | |
| Working temperature | -40℃-+75℃ |
3 In 1 Waterproof Pre Connectorized Patch Cord For Fiber Optical Features:
- Provides moisture and dust protection for use in harsh industrial environments.IP68 protection, salt-mist proof, humidity proof, dust proof.
- The product consists of the main connector and the adapters, which are suitable for connecting the HW adapter and OPT adapter and Slim adapter.
- Utilize traditional field installation techniques for aerial, below-ground, and duct applications.
- Connector inner low-loss parts conform to the SC-APC standard of IEC61754-4.
- Suitable for outdoor installation, with the functions of waterproof, dustproof, and corrosion resistance.
- A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
3 In 1 Waterproof Pre Connectorized Patch Cord For Fiber Optical Application Scenarios:
- Data transmission Networks
- Image transmission Networks
- Optical test instrument
- Photoelectric automatic control system
- FTTH
