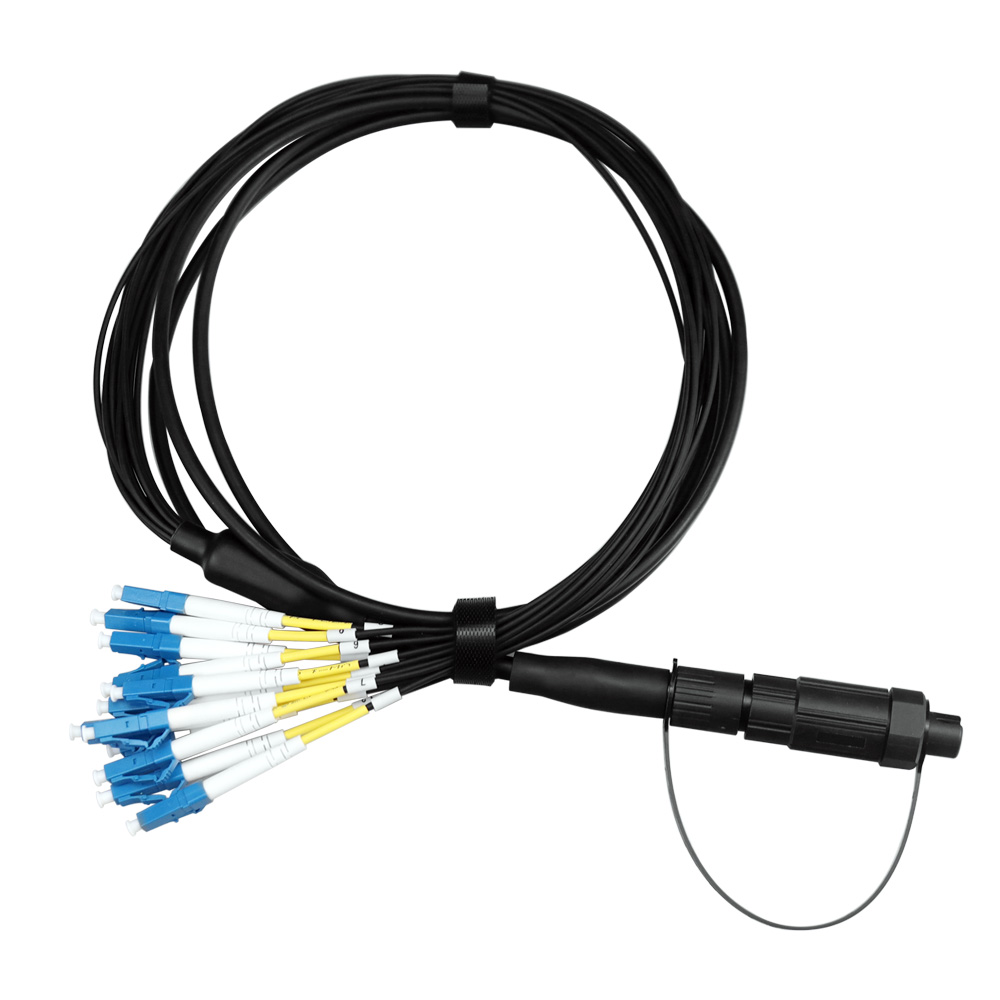

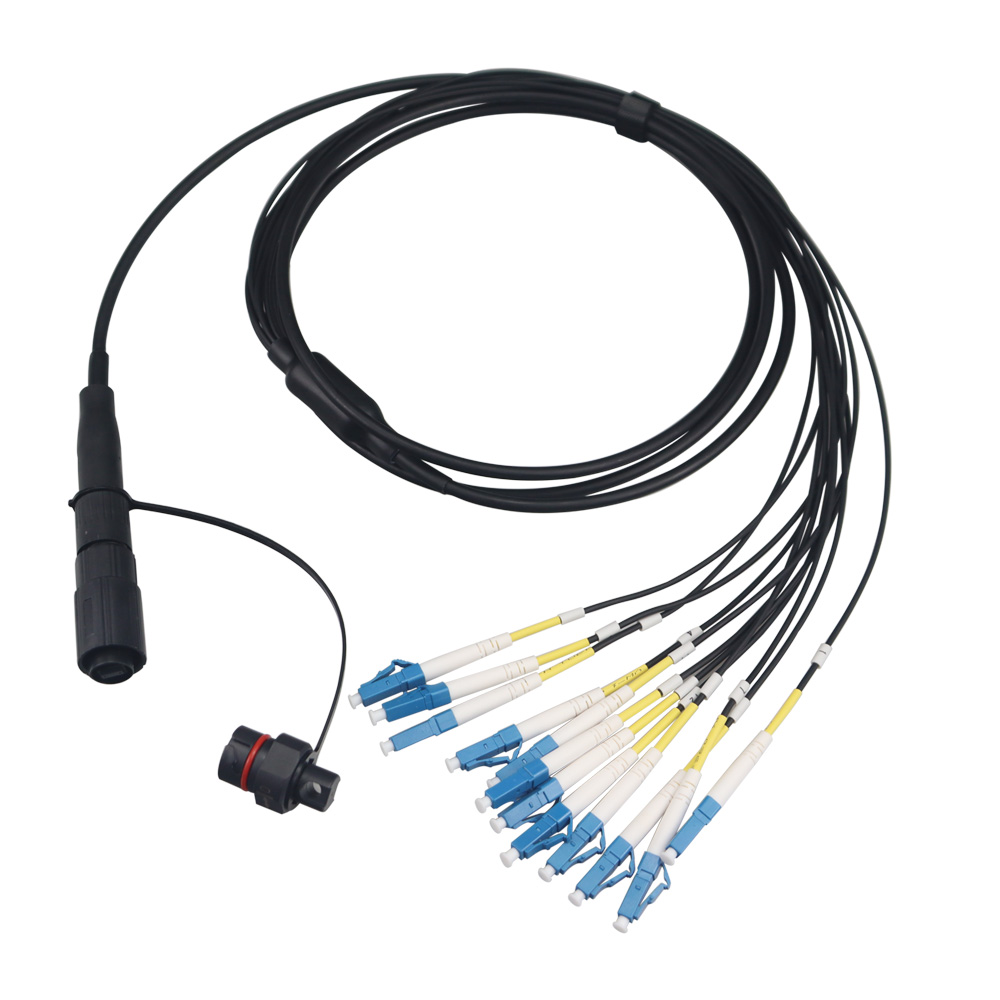

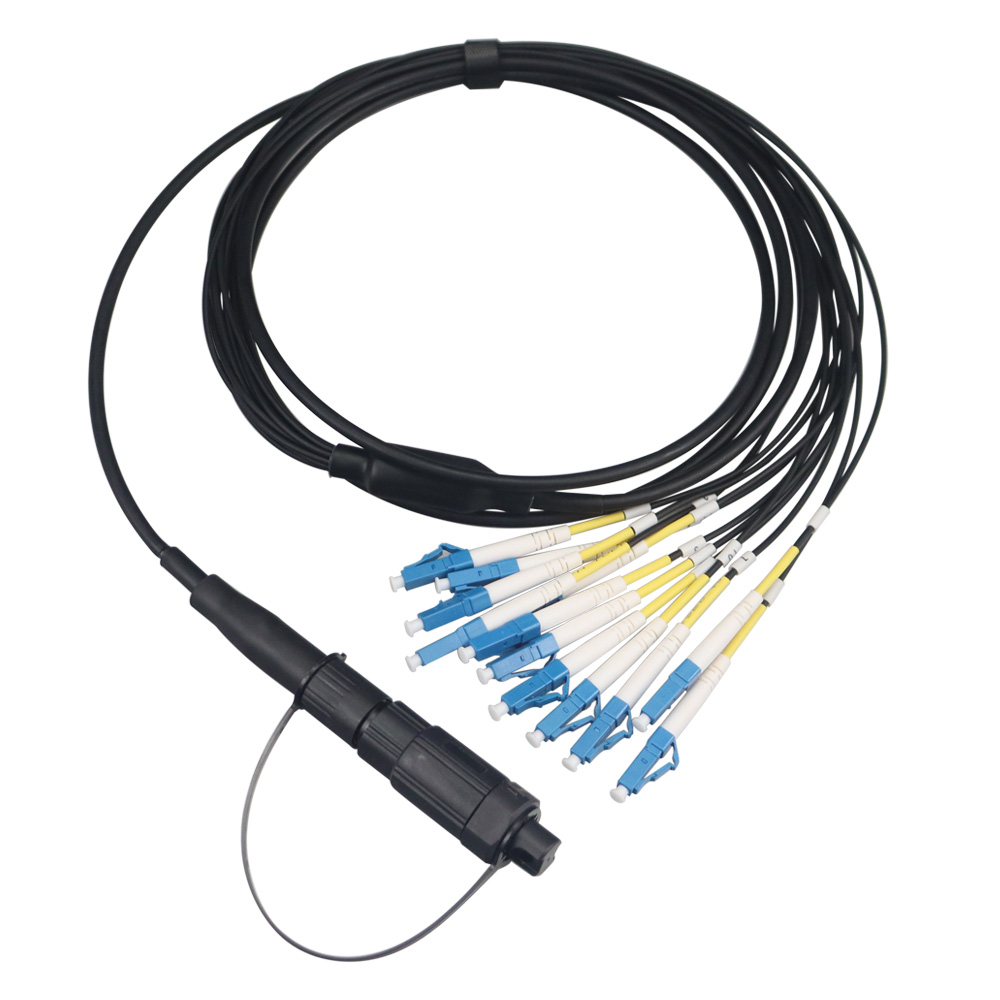

IP68 Waterproof Mini SC MPO-LC UPC FTTA Patch Cord 12 Fibers Breakout Cable

MPO Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

IP68 Waterproof Mini SC MPO-LC UPC FTTA Patch Cord 12 Fibers Breakout Cable Specification:

  • The Connector
Project Spec. Standard
Operating wavelength 1260～1650nm GR-326-CORE；

GR-1221-CORE；

IEC 61300；

IEC61753 .
Insertion loss ≤0.3dB（Typical value：0.2dB)
Return loss ≥50dB
Repeatability ≤0.15dB
Interchangeability ≤0.15dB
Mechanical Endurance ≥500 Times
Working temperature -40～+85℃
  • Cable Structure Parameter
Items Descriptions
Optical Fiber Fiber count 1 FO  G657A2
Color Blue
Tight buffer fiber Color Transparent
Material Nylon
Diameter 0.95±0.05mm
Metal braided layer Material SU204
Sheath Material HDPE   Anti-UV
Color Black
Strength Member Aramid yarn/ Block water yarn
Diameter 5.0±0.4mm

IP68 Waterproof Mini SC MPO-LC UPC FTTA Patch Cord 12 Fibers Breakout Cable Features:

  1. 4/8/12 and 24 fiber connector terminations and assemblies.
  2. Designed for low-loss and standard-loss SM and MM applications.
  3. Economical solution for mass-termination of fiber.
  4. Suitable for MPO/MTP application.
  5. Compliant to directive 200/95/EC(RoHS).
  6. MPO connector complies with IEC-61754-7.

IP68 Waterproof Mini SC MPO-LC UPC FTTA Patch Cord 12 Fibers Breakout Cable Application Scenarios:

  1.  Data communication network
  2.  Optical System Access network
  3.  Storage area networking fiber channel
  4.  High-density architectures
