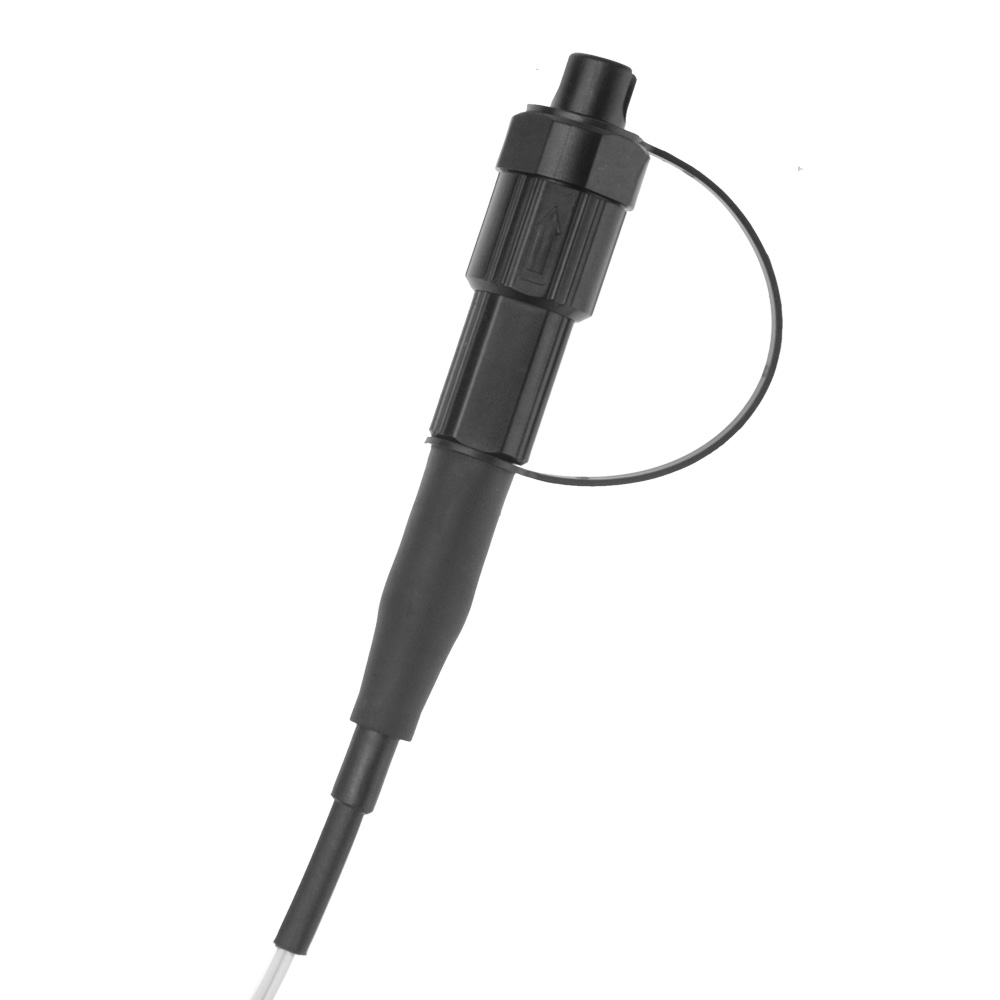

Mini SC Pre-connected Type double LC Waterproof Connector For the harsh outdoor environment
The mini SC Pre-connected type waterproof connector is a compact and highly waterproof connector designed to be compatible with Huawei's field waterproof connectors. It is an economical, efficient, and convenient outdoor connector with sealing and mechanical protection capabilities. The overall size of the connector is small, and it can also provide a wall-through-tube traction application solution. Replace the wall-through cap to switch between wall-through and connection scenarios easily. The connector is made of special plastic material resistant to high and low temperatures, acid and alkali corrosion, and UV radiation. It is equipped with a waterproof sealant pad, the protection performance can reach the IP67 level. The connector features blind mating functionality, offering a quick installation solution.
Mini SC Pre-connected Type double LC Waterproof Connector For harsh outdoor environment Specification:
| Project | Spec. |
| Application cable | Φ3.0-5.0mm Round cable；2*3mm、2*5mm Flat cable. |
| Insertion loss | ≤0.3dB（Typical：0.2dB） |
| Return loss | ≥60（8°Angled） |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mechanical Durability | 500 times-△IL≤0.2dB |
| Tractive power | ≥70N（Φ3.0mm Round cable）；
≥100N（2*3mm、2*5mm Flat cable）； ≥200N（Φ5.0mm Round cable）. |
| Attenuation change after traction | ≤0.1dB |
| Working temperature | -40～+85℃ |
| Waterproof level | IP68 |
Mini SC Pre-connected Type double LC Waterproof Connector For harsh outdoor environment Features:
- IP68 protection, salt-mist proof, humidity proof, dust proof.
- Suitable for outdoor installation, with the functions of waterproof, dustproof, and corrosion resistance.
- This product is applicable to the processing of factory optical cable connectors and Mini SC adapters.
- This product has low insertion loss, good stability, and high interchangeability.
- Utilize traditional field installation techniques for aerial, below-ground, and duct applications.
- Connector inner low-loss parts conform to the LC-APC standard of IEC61754.
- A broad temperature range (-40 to +85 °C) is ideal for indoor or outdoor applications.
Mini SC Pre-connected Type double LC Waterproof Connector For harsh outdoor environment Application Scenarios:
Mainly used for outdoor waterproof installation and connector FTTH access equipment. Connect fiber input equipment such as the fiber distribution box’s output port is a Mini SC adapter, it can be quickly screwed and fixed with the corresponding adapter and then docked with the output adapter . On-site operation is simple, and easy to install, and no special tools are required.
