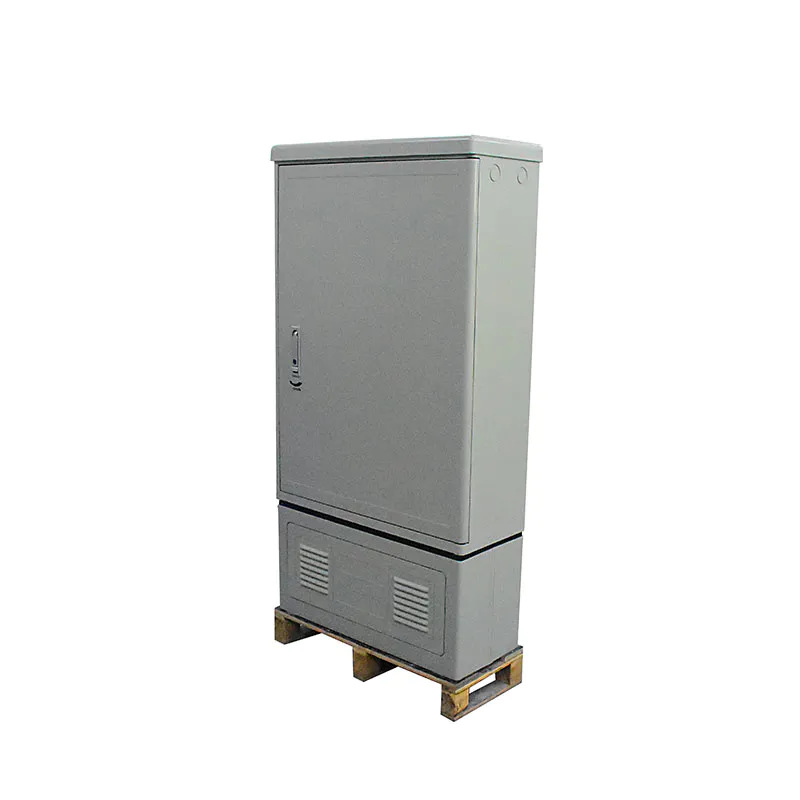

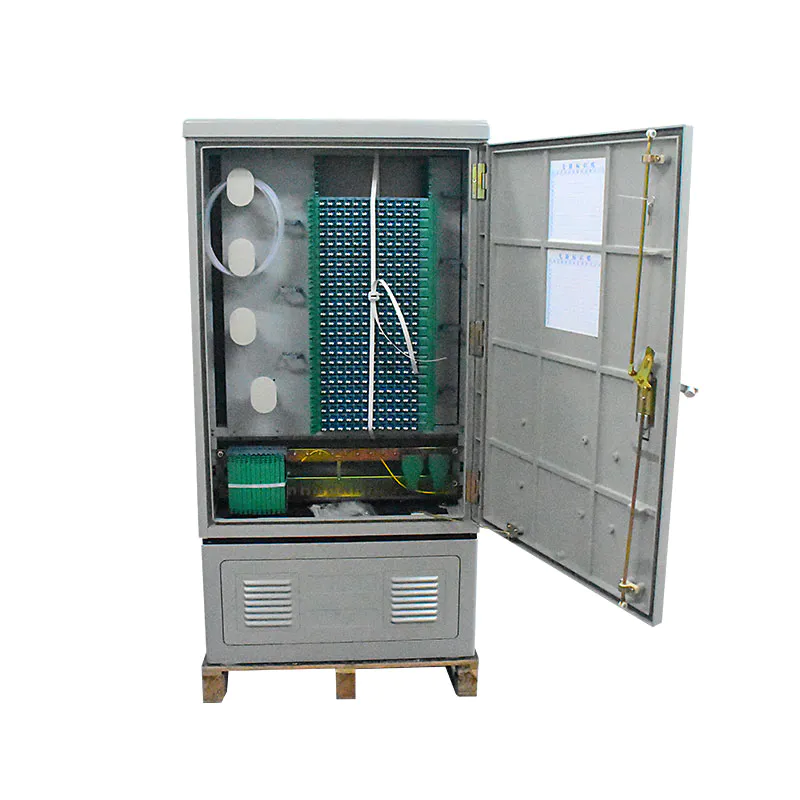

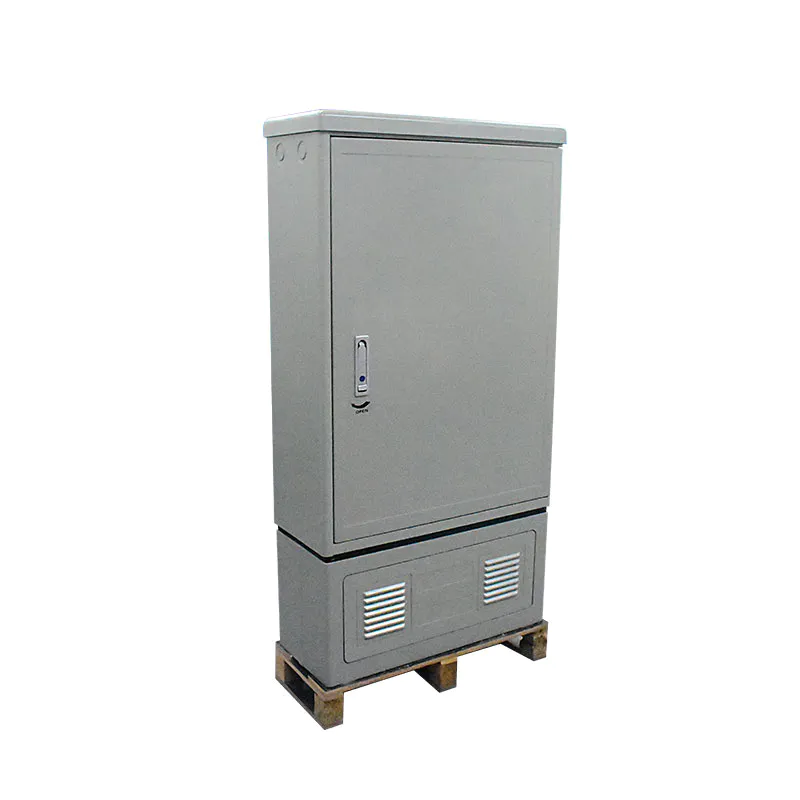

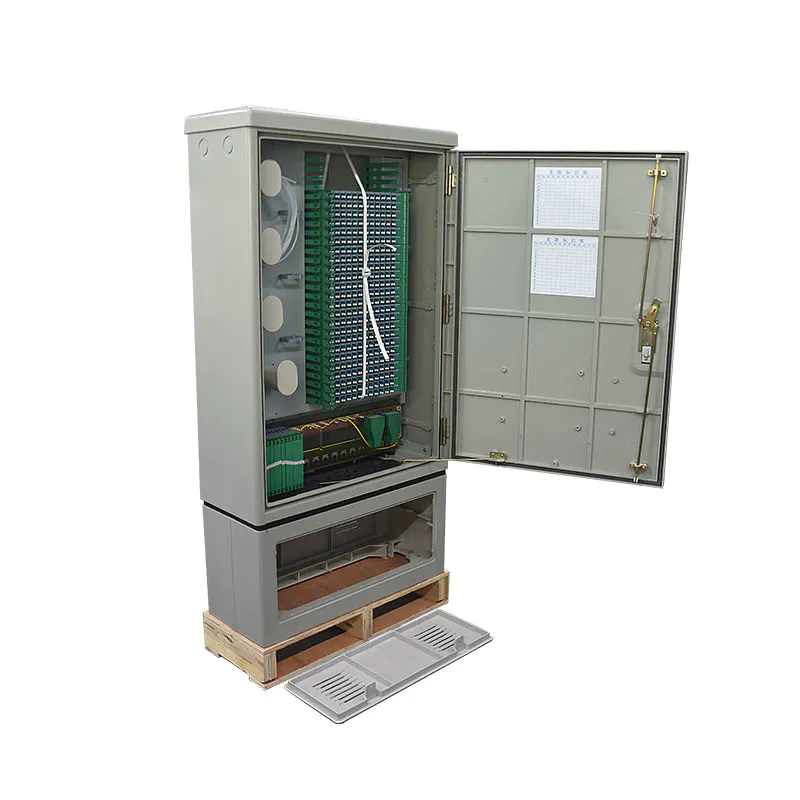

Custom Fiber Distribution Cabinet Manufacturer, Ftth Cabinet

Description

It has multiple functions including leading optical cables, fixing and protection, splicing and protecting of fibre optic, storing and managing pigtails, parking lot, routing management, straight-splicing or Splitting of fibre optic cable. It is widely used in ODN Networks of Fiber Communications.

Specification

Item	Specifications
Capacity of the cabinet	96	144	288	576	1152
Overall Dimension(mm) HXWXD	780x450x280	1035x555x310	1450x750x360	1450x760x540	1550x750x620
Material	Made by SMC(Sheet molding compound)
Operation Way	Front-operation			Front & Rear-operation
Door	Single-door(right-hand way)			Double-door(left & right-hand way)
Capacity of each tray	12F & 24F
Adapter type	SC, FC for 12F tray, Duplex LC for 24F tray

Product

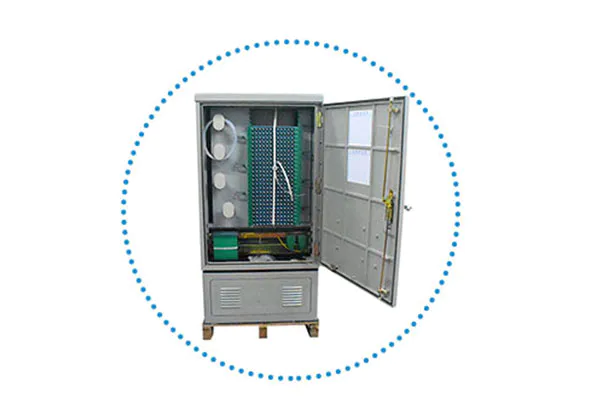

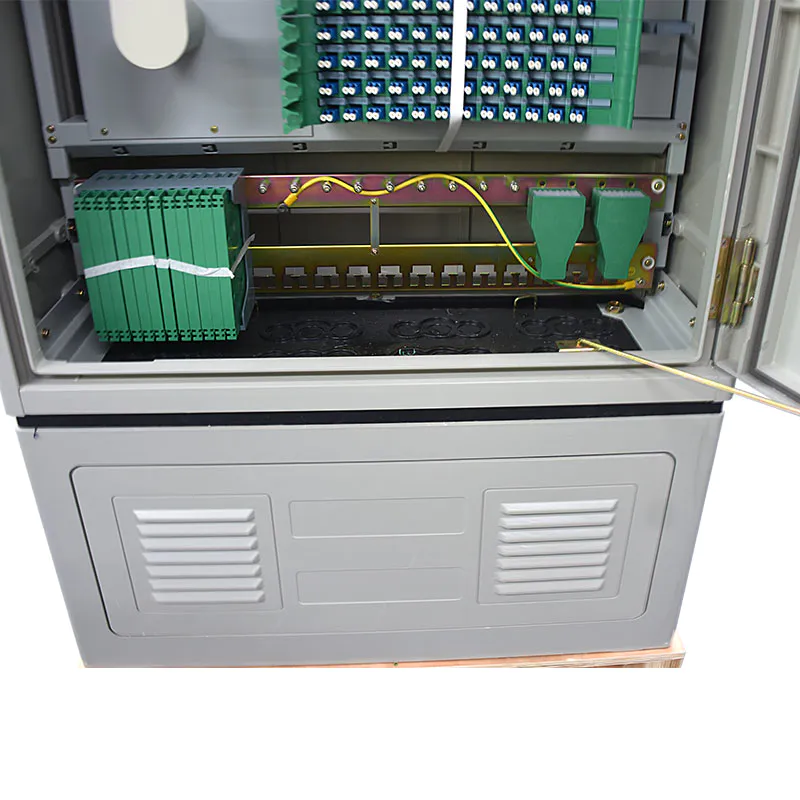

SMC is a type of reinforced polyester containing glass or carbon fibers. Its light weight then metal cabinet.

0.00 ~~0.00~~

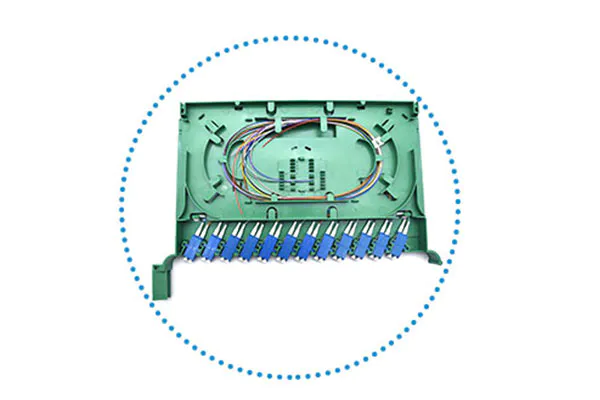

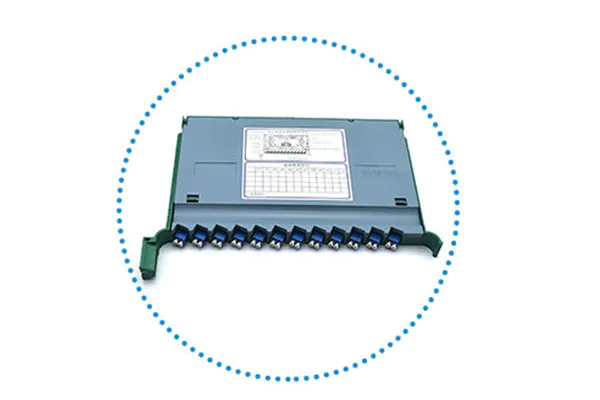

Modular tray structure designing. Can as different capacity for extension.

0.00 ~~0.00~~

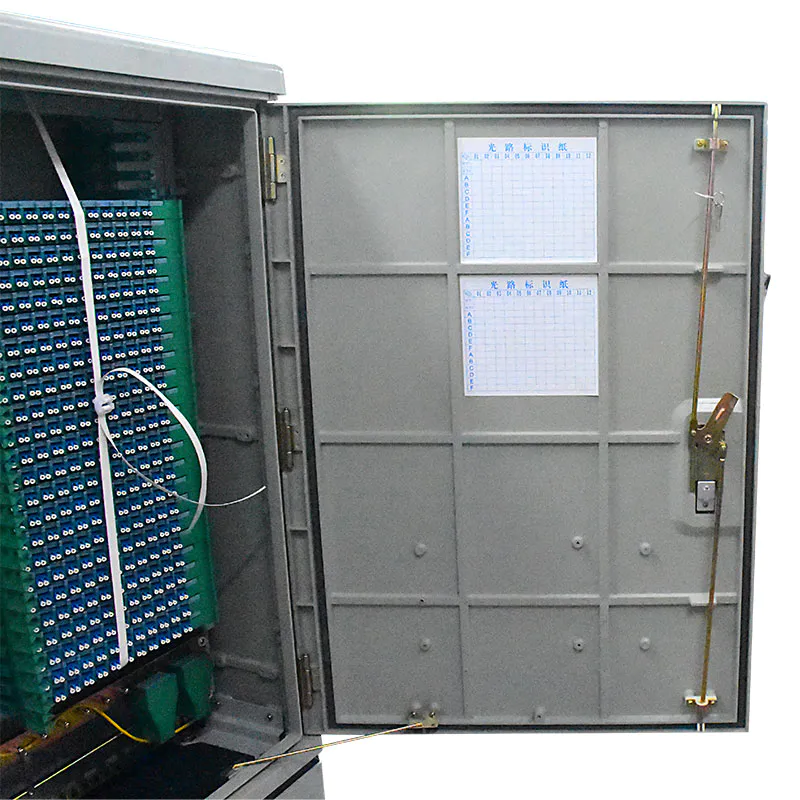

The adapter on 45degree angle way, avoid the laser damage the engineer eyes.

0.00 ~~0.00~~

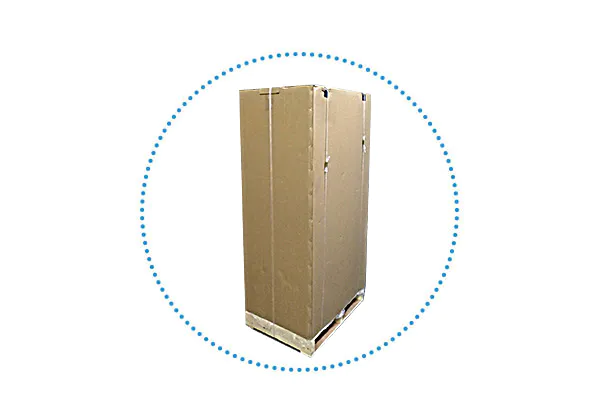

Packge Method

Place the cabinet in a carton and place it on a tray. Secure the product with packing tape.

0.00 ~~0.00~~
