GJYX(F)CH

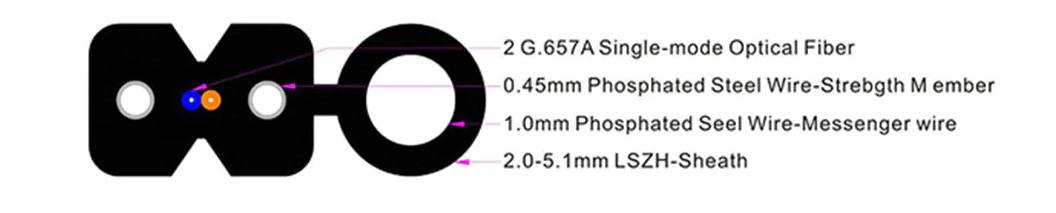

GJX(F)H is generally used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable; then, adding a self-supporting messenger. At last, sheathed with LSZH/PE/PVC material.

Compact structure, low cost
Light weight, small size
LSZH material, environmentally friendly
Flexible, easy to deploy
handy for terminated with fast connectors
Steel wire messenger, self-supporting

Chat on WhatsApp Get information

Specification

Fiber Count	Outer Diameter	Weight	Minimum bend radius		Tensile strength		Crush resistance
	Outer Diameter	Weight	Dynamic	Static	Short term	Long term	Short term	Long term
	mm	kg/km	mm	mm	N	N	N/100mm	N/100mm
1	5（±0.1）X2（±0.1）	20.3	30D	15D	800	300	2200	1000
2	5（±0.1）X2（±0.1）	21.3	30D	15D	800	300	2200	1000
4	5（±0.1）X2（±0.1）	22.3	30D	15D	800	300	2200	1000
