Optical Characteristics
| Micro cable model | GCYFXY--xxF (MTE+outer diameter ) | ||||
| MTE1.8 | MTE2.0 | MTE2.3 | MTE2.5 | MTE2.8 | |
| Number of fiber cores | 2~4 | 2~4 | 6~12 | 2~12 | 14~24 |
| HDPE outer sheath thickness | nominal： 0.20mm, smallest: 0.15mm | ||||
| Nominal outer diameter | 1.8mm | 2.0mm | 2.3mm | 2.5mm | 2.8mm |
| Approximate weight | 2.6kg/km | 4.0kg/km | 5.0kg/km | 6.0kg/km | 7.0kg/km |
| Fiber optic cable attenuation (single-mode fiber) | 1310nm/1550nm≤0.35/0.22dB/km< | ||||
| Maximum pulling force | 40N | 40N | 50N | 60N | 60N |
| Maximum crushing force | 600N/100m | ||||
| Allowed minimum static, dynamic bending radius | 10 times/20 times the outer diameter of the optical cable | ||||
| Applicable temperature range | Storage -30～+60℃; Installation -10～+40℃; Operation -20～+50℃ | ||||
| Optical cable life (estimated) | 25 years | ||||
Air blowing performance
| Test Equipment | Pipe models suitable for air delivery and corresponding typical air delivery lengths |
||
|
Polyment: PRM-196, PR140, etc. Air pressure: 13bar |
Number of fiber cores | Microtube model
3.5/5.0mm |
Microtube model
5.5/7.0mm |
| 2~12 cores | 800m | 1500m | |
| 14~24 cores | 500m | 1500m | |
Features

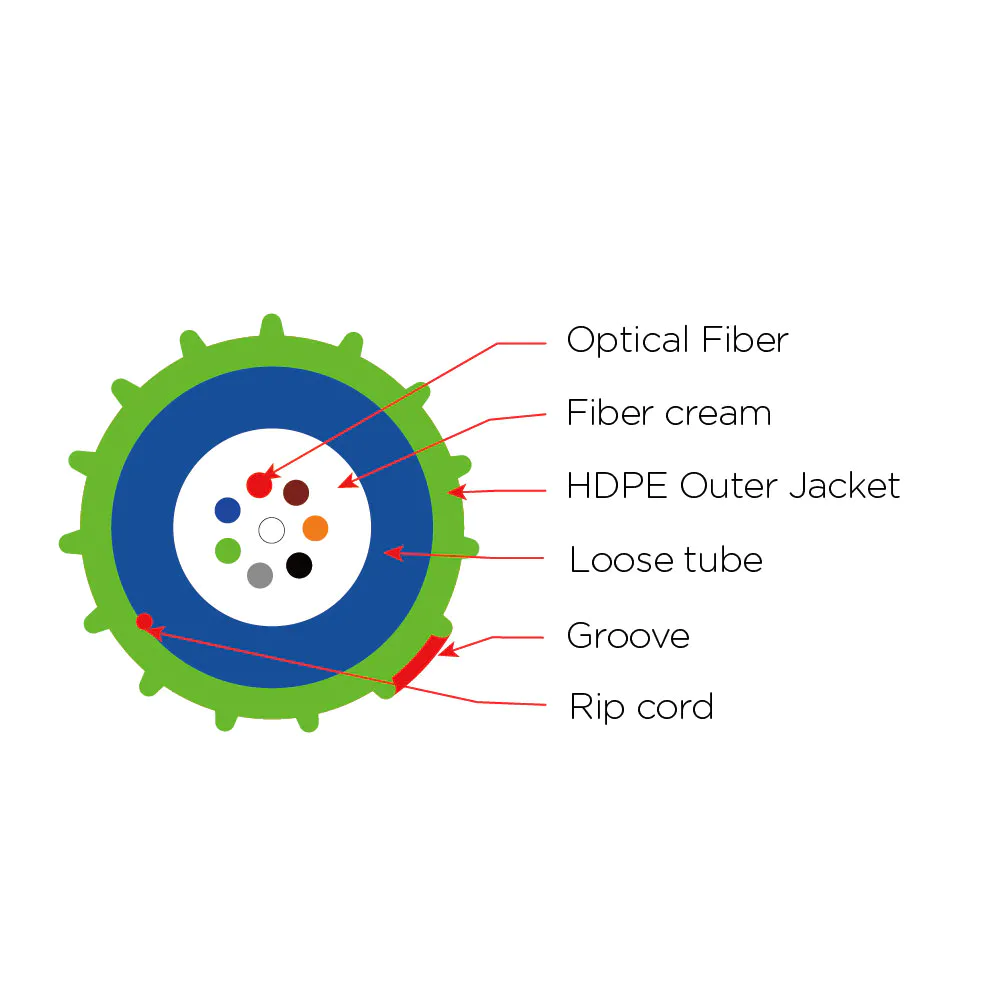

Structural optimization design, with the best fiber capacity;
The remaining length of the optical fiber is precisely controlled and the performance of the optical cable is stable;
Dry cable core blocks water, is low-carbon and environmentally friendly;
Innovative design of the sheath surface enhances air-blowing performance.
Application
Air blowing installation
Core network
Metropolitan Area Network (MAN)
Access network
Backbone network
Local Area Network (LAN)
FTTx network
Data center
5G
Advantages of Carefiber
Good Aramid yarn has excellent tensile performance.
Fast delivery,200km ADSS cable regular production time of about 10 days
Can using glass yarn instead of aramid to anti-rodent
Packge Method
Multiple packaging options are available
