ADSS Aerial Fiber Optical Cable--ADSS-4/6/12/24/36/48/72/96/144FO

Carefiber's ADSS Cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.

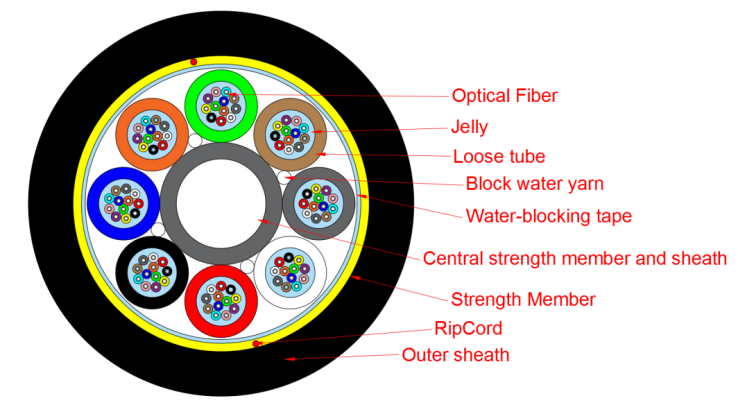

ADSS Aerial Fiber Optical Cable--ADSS-4/6/12/24/36/48/72/96/144FO Dimensions and Construction:

Items Descriptions
Optical fiber Category G652D
Color Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink Aqua
Counts 4/6 12 24/36 48 72 96 144
Structure / 1+6 1+6 1+6 1+6 1+6 1+8 1+12
CSM Material FRP (Fiberglass Reinforced with Plastic)if necessary, shall be jacketed with Polyethylene
Loose tube Material PBT
Color Blue Orange Green Brown Grey Natural Red Black Yellow Violet Pink Aqua
Counts 1 2 4/6 4 6 8 12
Fibers per tube 4/6 6 6/6 12 12 12 12
Filler Number 5 4 2/0 2 0 0 0
Water-blocking Material Water-blocking yarns and tape
Ripcord Number 2pcs
Peripheral Strength member Material Aramid yarns
Outer sheath Material PE
Color Black
Cable diameter(mm) ±0.5 9.5 9.5 9.5 10.5 10.5 11.8 14.7
weight  ±10%KG/KM 65 70 75 85 100 110 165
Maximum allowed tensile (MAT) (N) 1900 1900 1900 2300 2500 2700 3100
Span (m) 100
Crush (N/100mm) Short term 2000
Applicable temperature range Operation -40℃~+70℃
Installation -20℃~+60℃
Storage & shipping -40℃~+70℃
Bending Radius Operation 15 times of cable diameter
Installation 25 times of cable diameter

ADSS Aerial Fiber Optical Cable--ADSS-4/6/12/24/36/48/72/96/144FO Features:

  1. Can be installed without a power outage
  2. A protective cover, superior corrosion resistance
  3. Lightweight, small cable diameter, reduces the impact of ice, wind power, and load on the tower, supports
  4. The precision control of aramid armor technology greatly improves the cable's tensile ability.
  5. The precision control of the fiber length and the cable's twisted pitch ensures that the fiber cable has excellent tensile performance and temperature characteristics.
  6. The life expectancy is greater than years

ADSS Aerial Fiber Optical Cable--ADSS-4/6/12/24/36/48/72/96/144FO Application

  1. Aerial

ADSS Aerial Fiber Optical Cable--ADSS-4/6/12/24/36/48/72/96/144FO Attenuation:

Single-mode

Fiber type G652D

(1310/1550nm)

 G657A1

(1310/1550nm)

 G657A2

(1310/1550nm)

 G657B3

(1310/1550nm)
Attenuation



 Typical 0.35/0.21 0.35/0.21 0.35/0.21 0.35/0.21
Maximum 0.4/0.3 0.4/0.3 0.4/0.3 0.4/0.3
Zero Dispersion Slope ≤0.091 ps/km·nm 2 ≤0.092 ps/km·nm 2 ≤0.092 ps/km·nm 2 ≤0.092 ps/km·nm 2
Dispersion(1285~1340nm) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km) -3.5 – 3.5ps/(nm·km)
Mode field

Diameter(@1310nm)

 9.1±0.4 µm 8.8±0.4 µm 8.8±0.4 µm 8.6±0.4 µm
Cutoff wavelength cable(nm) ≤1260 nm ≤1260 nm ≤1260 nm ≤1260 nm
Min bend radius(mm) 16 mm 10 mm 7.5 mm 5 mm
Cladding diameter(µm) 125±1.0 125±1.0 125±1.0 125±1.0
