Multicom – MINI ADSS-ASU – Aerial Self-Supported ASU Fiber Optic Cable

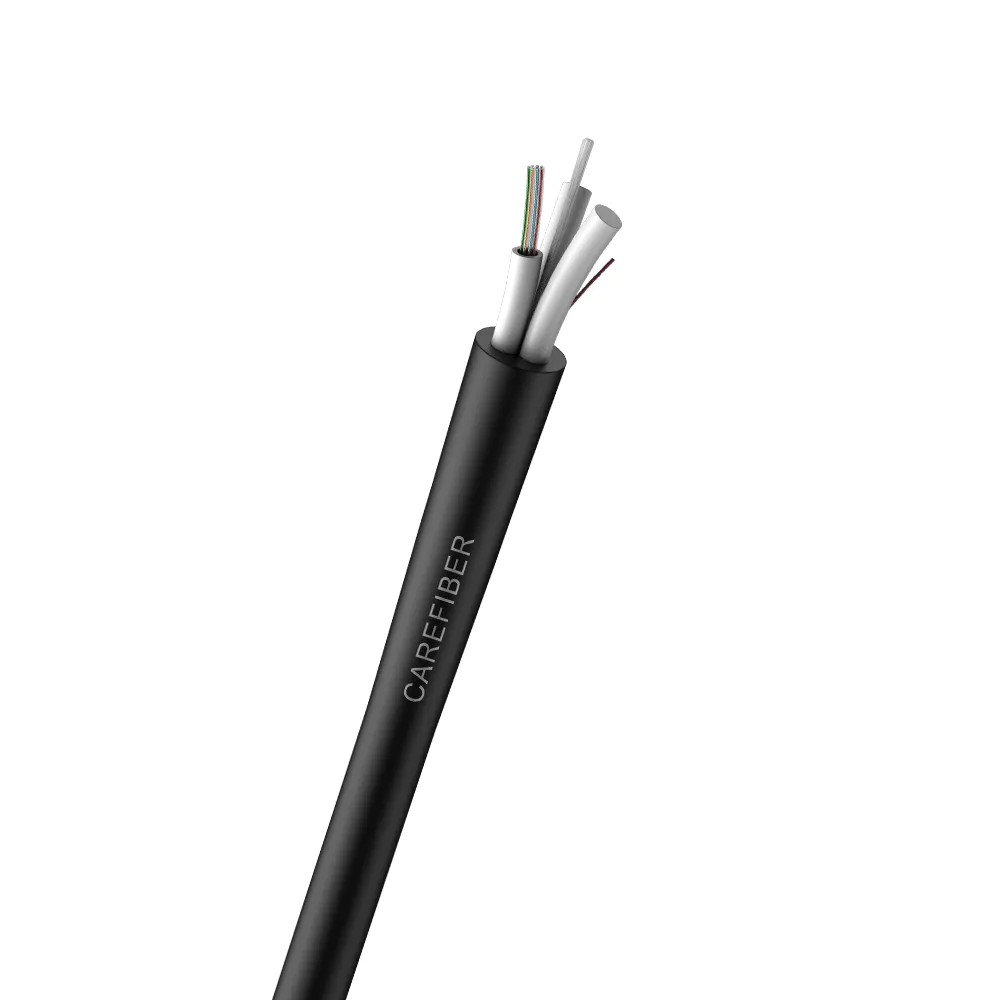

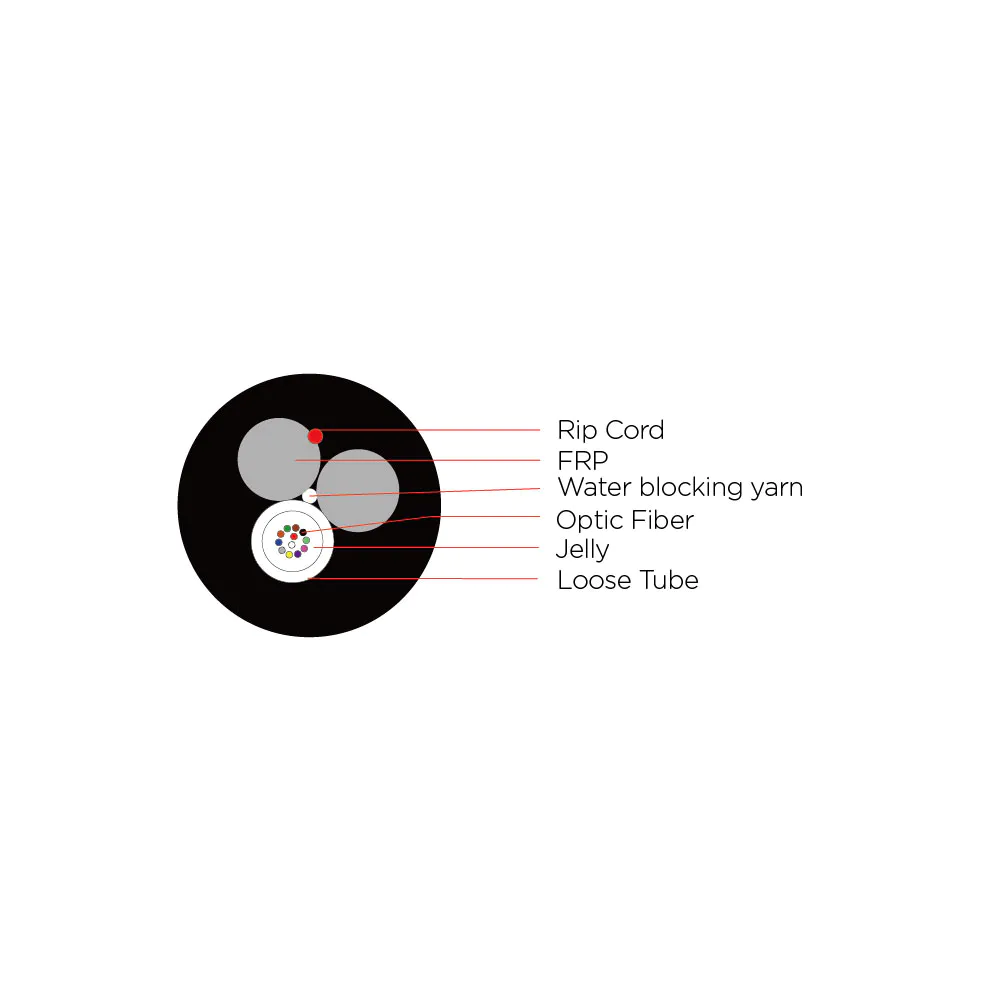

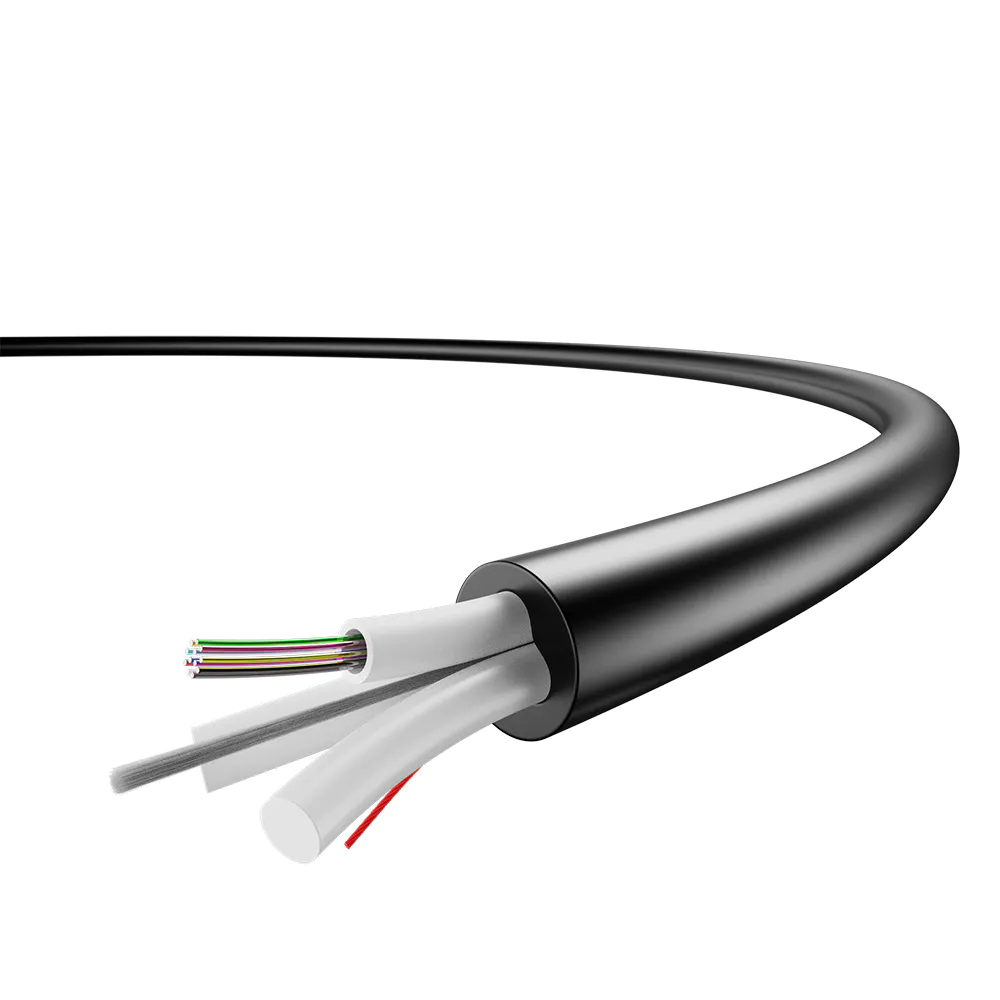

Carefiber's Mini Adss ASU Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watering. Two Parallel fiber-reinforced plastic(FRP) elements are placed on the two sides. The cable is covered with a single PE outer sheath. It is especially suitable for installation in aerial for long-distance communication.
Carefiber can customize the number of cores of ASU Fiber Optic cables according to customer needs. The number of cores of mini ADSS Cable is 2,4,6,12 up to 24 cores.

Model:ASU
MOQ:>500
Place of Origin:China
Brand:CFO
Material:PE
Delivery Time:7-25days
Start Port:shenzhen

Chat on WhatsApp Get information

Optical Characteristics

Type	Diameter(mm)	Weight(kg/km)	Tensile strength Long/short term(N)	Crush Long/short term(N/100mm)	Bending Radius Static/Dynamic
ASU-80	6.8(2.0 tube)	45	300/600	300/600	10D/20D
ASU-120	7.8(2.5 tube)	60	300/600	300/600	10D/20D

Features

Lighting Resistance
Non-metallic structure
Duct installation and aerial installation together with tension strand wire
Suitable for FTTH application as drop cable

Application

Aerial
Outdoor

Standards

IEC 60793, IEC60794
IEEE1222
TIA/EIA
ITU-T

Advantages of Carefiber

Good Aramid yarn has excellent tensile performance.
Fast delivery,200km ADSS cable regular production time of about 10 days
Can using glass yarn instead of aramid to anti-rodent
